BLED

View range presentation
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Recessed
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Extruded aluminium profile
Frame Material
Steel sheet
Finishing
Powder-coated

Details

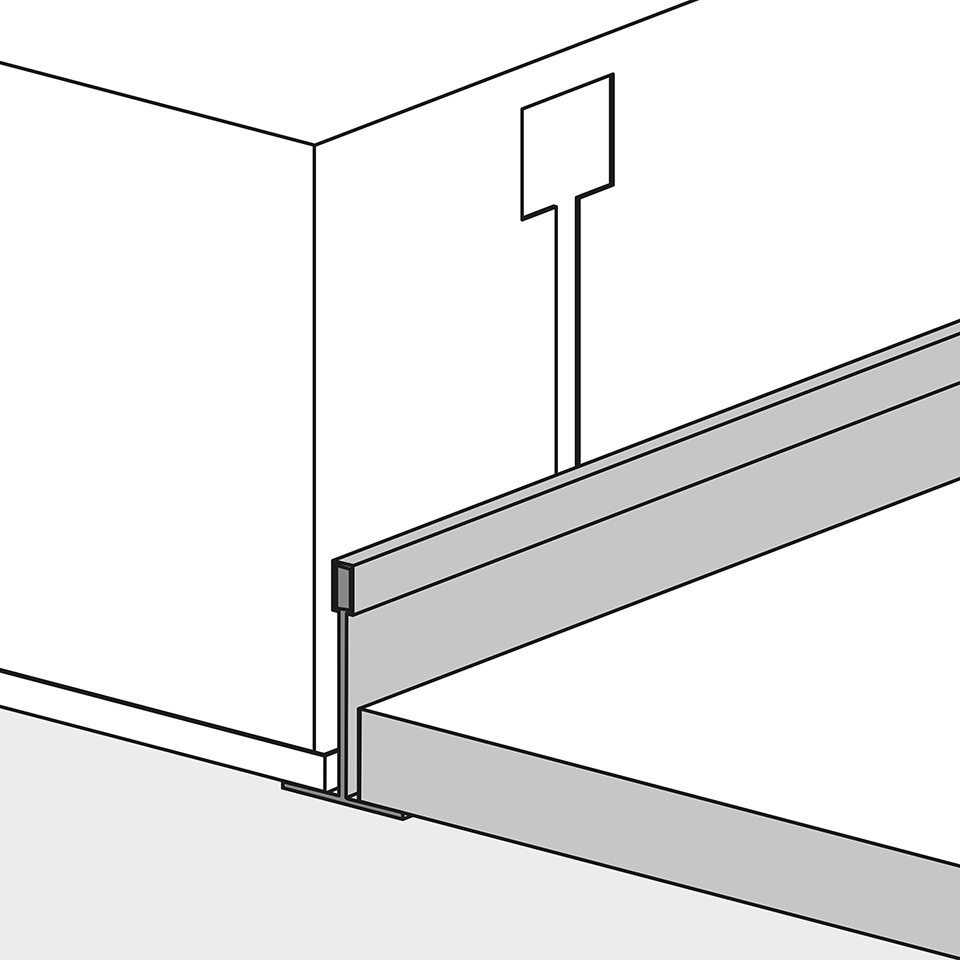

Recessed application by pull-up
Recessed application by pull-up

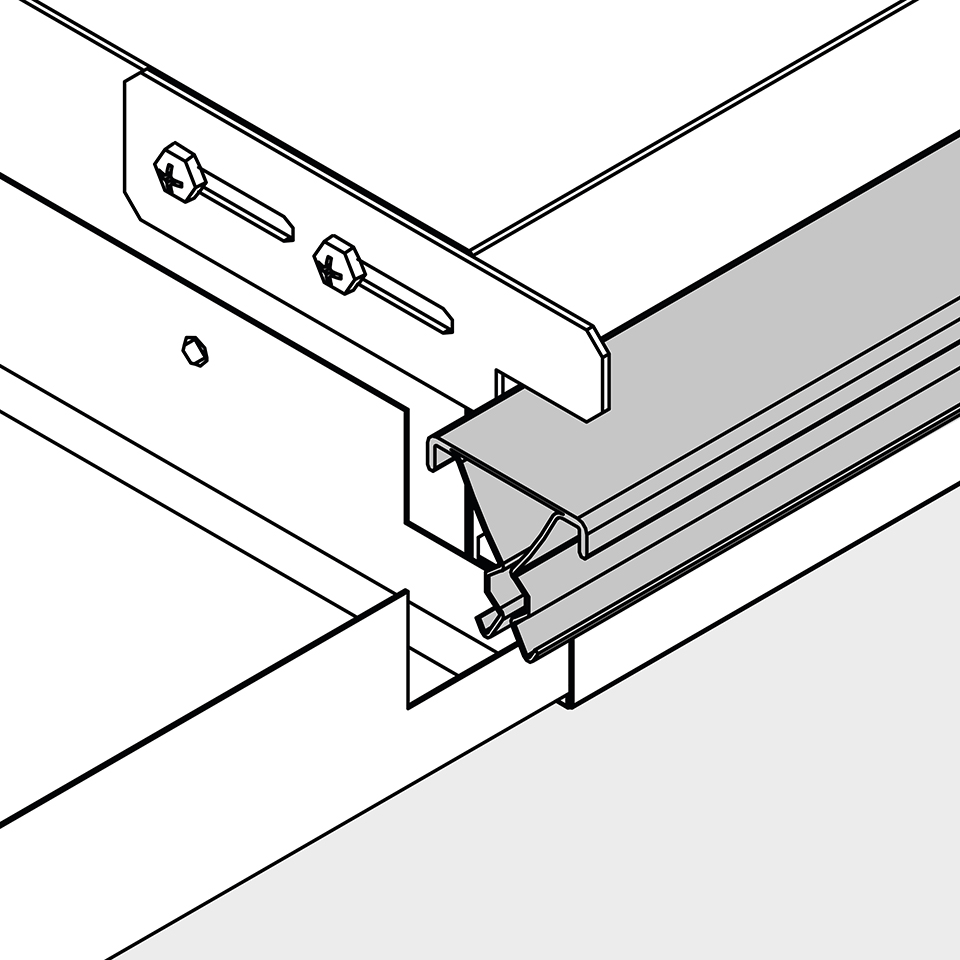

SAS 120 ceilings (Under request)
SAS 120 ceilings (Under request)

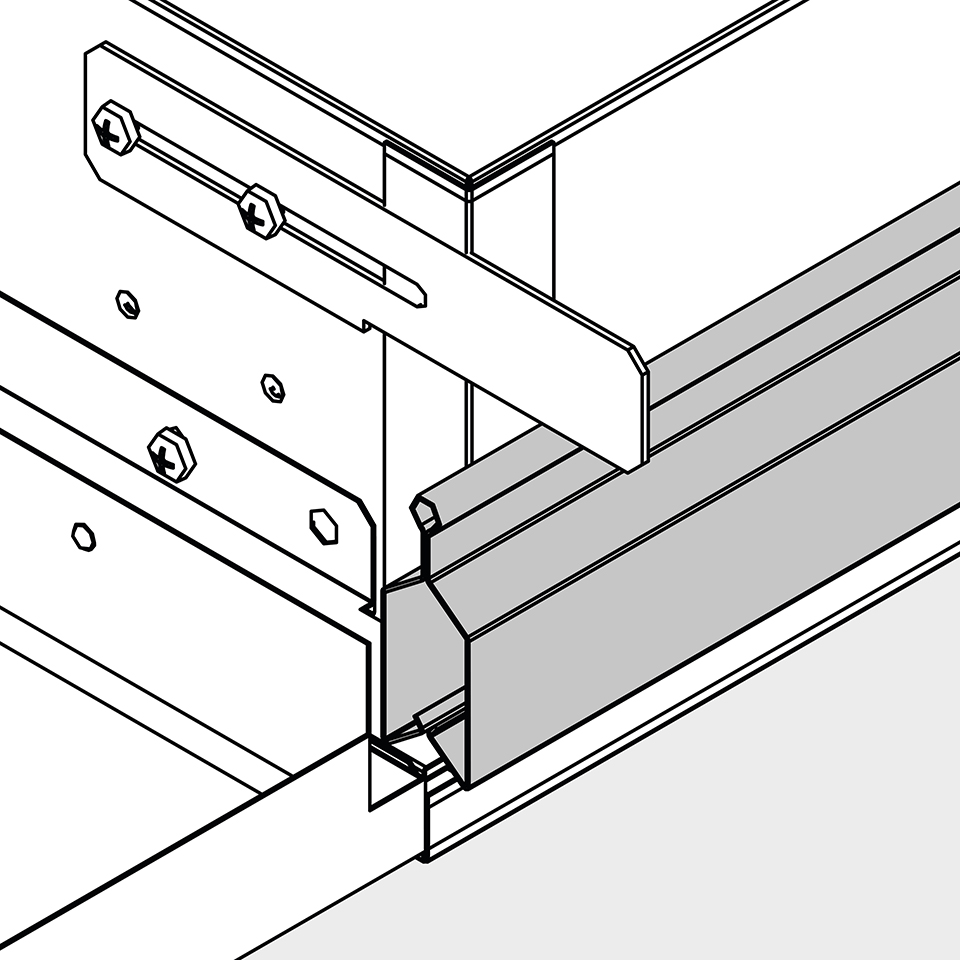

SAS 150/330 ceilings (Under request)
SAS 150/330 ceilings (Under request)

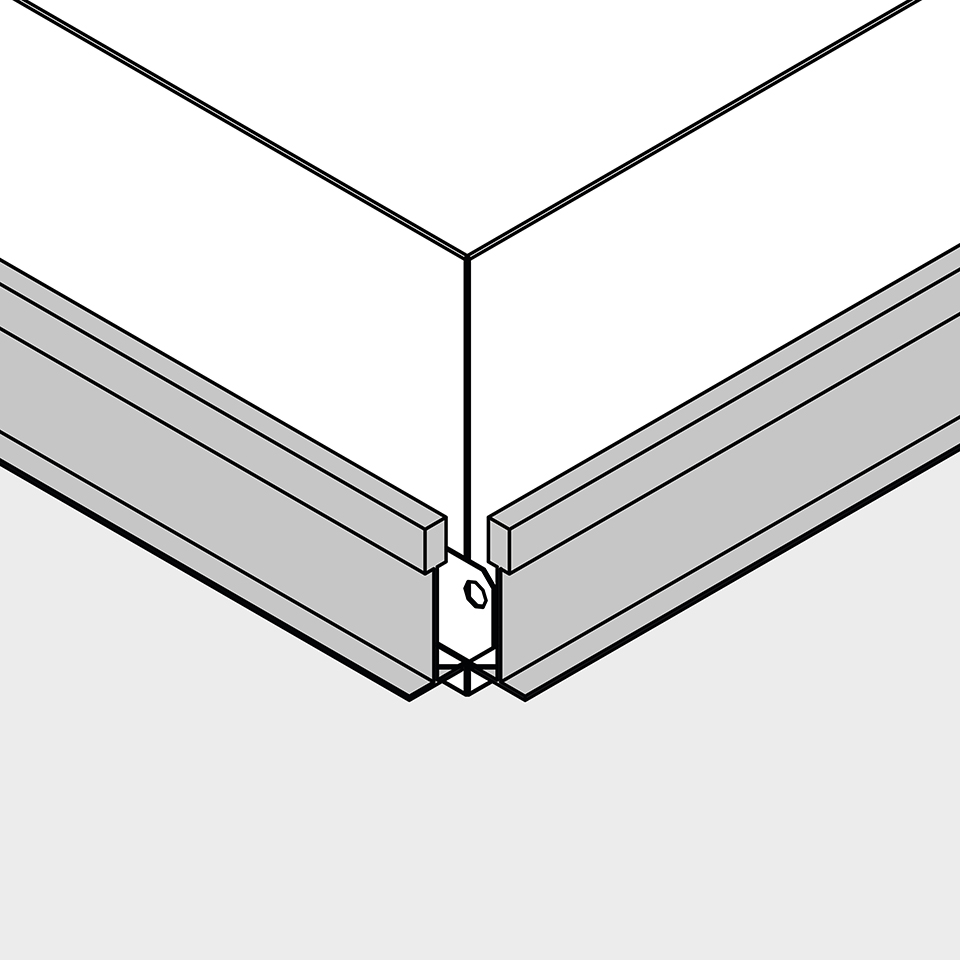

Microlook 8 ceilings (Under request)
Microlook 8 ceilings (Under request)

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip

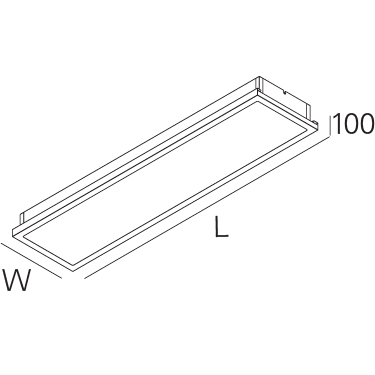

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

BLED

Results
64 Products

Filter Variants

Results
Filter Variants
Optical System
Luminous Flux (lm)
Efficiency (lm/W)
UGR
Colour Temperature (CCT)
Dimming
Emergency (h)
Length (mm)
Width (mm)
Clear Filters
Filters
Code
Optical System lm Output lm/W UGR CCT (K) Dimming Emergency (h) L (mm) W (mm)
Code
Optical System lm Output lm/W UGR CCT (K) Dimming Emergency (h) L (mm) W (mm)
90841L060EW0000 LIGHT+ - Opal diffuser 6144 140 <22 4000 ON/OFF 0 595 595
90841L060EW0300 LIGHT+ - Opal diffuser 5869 133 <22 3000 ON/OFF 0 595 595
90841L060EW3000 LIGHT+ - Opal diffuser 6144 140 <22 4000 ON/OFF 3 595 595
90841L060EW3300 LIGHT+ - Opal diffuser 5869 133 <22 3000 ON/OFF 3 595 595
90841L060HW0000 LIGHT+ - Opal diffuser 6144 140 <22 4000 DALI 2 0 595 595
90841L060HW0300 LIGHT+ - Opal diffuser 5869 133 <22 3000 DALI 2 0 595 595
90841L060HW3000 LIGHT+ - Opal diffuser 6144 140 <22 4000 DALI 2 3 595 595
90841L060HW3300 LIGHT+ - Opal diffuser 5869 133 <22 3000 DALI 2 3 595 595
90841L120EW0000 LIGHT+ - Opal diffuser 6144 140 <22 4000 ON/OFF 0 1195 295
90841L120EW0300 LIGHT+ - Opal diffuser 5869 133 <22 3000 ON/OFF 0 1195 295
90841L120EW3000 LIGHT+ - Opal diffuser 6144 140 <22 4000 ON/OFF 3 1195 295
90841L120EW3300 LIGHT+ - Opal diffuser 5869 133 <22 3000 ON/OFF 3 1195 295
90841L120HW0000 LIGHT+ - Opal diffuser 6144 140 <22 4000 DALI 2 0 1195 295
90841L120HW0300 LIGHT+ - Opal diffuser 5869 133 <22 3000 DALI 2 0 1195 295
90841L120HW3000 LIGHT+ - Opal diffuser 6144 140 <22 4000 DALI 2 3 1195 295
90841L120HW3300 LIGHT+ - Opal diffuser 5869 133 <22 3000 DALI 2 3 1195 295
90842L060EW0000 LIGHT+ - Opal diffuser -- -- -- -- -- 0 595 595
90842L060EW0300 LIGHT+ - Opal diffuser -- -- -- -- -- 0 595 595
90842L060EW3000 LIGHT+ - Opal diffuser -- -- -- -- -- 3 595 595
90842L060EW3300 LIGHT+ - Opal diffuser -- -- -- -- -- 3 595 595
90842L060HW0000 LIGHT+ - Opal diffuser -- -- -- -- -- 0 595 595
90842L060HW0300 LIGHT+ - Opal diffuser -- -- -- -- -- 0 595 595
90842L060HW3000 LIGHT+ - Opal diffuser -- -- -- -- -- 3 595 595
90842L060HW3300 LIGHT+ - Opal diffuser -- -- -- -- -- 3 595 595
90842L120EW0000 LIGHT+ - Opal diffuser -- -- -- -- -- 0 1195 295
90842L120EW0300 LIGHT+ - Opal diffuser -- -- -- -- -- 0 1195 295
90842L120EW3000 LIGHT+ - Opal diffuser -- -- -- -- -- 3 1195 295
90842L120EW3300 LIGHT+ - Opal diffuser -- -- -- -- -- 3 1195 295
90842L120HW0000 LIGHT+ - Opal diffuser -- -- -- -- -- 0 1195 295
90842L120HW0300 LIGHT+ - Opal diffuser -- -- -- -- -- 0 1195 295
90842L120HW3000 LIGHT+ - Opal diffuser -- -- -- -- -- 3 1195 295
90842L120HW3300 LIGHT+ - Opal diffuser -- -- -- -- -- 3 1195 295
90843L060EW0000 DAM - Microprismatic diffuser 5683 129 <19 4000 ON/OFF 0 595 595
90843L060EW0300 DAM - Microprismatic diffuser 5429 123 <19 3000 ON/OFF 0 595 595
90843L060EW3000 DAM - Microprismatic diffuser 5683 129 <19 4000 ON/OFF 3 595 595
90843L060EW3300 DAM - Microprismatic diffuser 5429 123 <19 3000 ON/OFF 3 595 595
90843L060HW0000 DAM - Microprismatic diffuser 5683 129 <19 4000 DALI 2 0 595 595
90843L060HW0300 DAM - Microprismatic diffuser 5429 123 <19 3000 DALI 2 0 595 595
90843L060HW3000 DAM - Microprismatic diffuser 5683 129 <19 4000 DALI 2 3 595 595
90843L060HW3300 DAM - Microprismatic diffuser 5429 123 <19 3000 DALI 2 3 595 595
90843L120EW0000 DAM - Microprismatic diffuser 5683 129 <19 4000 ON/OFF 0 1195 295
90843L120EW0300 DAM - Microprismatic diffuser 5429 123 <19 3000 ON/OFF 0 1195 295
90843L120EW3000 DAM - Microprismatic diffuser 5683 129 <19 4000 ON/OFF 3 1195 295
90843L120EW3300 DAM - Microprismatic diffuser 5429 123 <19 3000 ON/OFF 3 1195 295
90843L120HW0000 DAM - Microprismatic diffuser 5683 129 <19 4000 DALI 2 0 1195 295
90843L120HW0300 DAM - Microprismatic diffuser 5429 123 <19 3000 DALI 2 0 1195 295
90843L120HW3000 DAM - Microprismatic diffuser 5683 129 <19 4000 DALI 2 3 1195 295
90843L120HW3300 DAM - Microprismatic diffuser 5429 123 <19 3000 DALI 2 3 1195 295
90844L060EW0000 DAM - Microprismatic diffuser -- -- -- -- -- 0 595 595
90844L060EW0300 DAM - Microprismatic diffuser -- -- -- -- -- 0 595 595
90844L060EW3000 DAM - Microprismatic diffuser -- -- -- -- -- 3 595 595
90844L060EW3300 DAM - Microprismatic diffuser -- -- -- -- -- 3 595 595
90844L060HW0000 DAM - Microprismatic diffuser -- -- -- -- -- 0 595 595
90844L060HW0300 DAM - Microprismatic diffuser -- -- -- -- -- 0 595 595
90844L060HW3000 DAM - Microprismatic diffuser -- -- -- -- -- 3 595 595
90844L060HW3300 DAM - Microprismatic diffuser -- -- -- -- -- 3 595 595
90844L120EW0000 DAM - Microprismatic diffuser -- -- -- -- -- 0 1195 295
90844L120EW0300 DAM - Microprismatic diffuser -- -- -- -- -- 0 1195 295
90844L120EW3000 DAM - Microprismatic diffuser -- -- -- -- -- 3 1195 295
90844L120EW3300 DAM - Microprismatic diffuser -- -- -- -- -- 3 1195 295
90844L120HW0000 DAM - Microprismatic diffuser -- -- -- -- -- 0 1195 295
90844L120HW0300 DAM - Microprismatic diffuser -- -- -- -- -- 0 1195 295
90844L120HW3000 DAM - Microprismatic diffuser -- -- -- -- -- 3 1195 295
90844L120HW3300 DAM - Microprismatic diffuser -- -- -- -- -- 3 1195 295
