DYNA

View range presentation

Overview

Application Areas

Offices, Hotels and residential, Public spaces, Retail, Education, Health and care

Mounting Type

Recessed

Control Gear Included

No

Body Material

Steel sheet

Finishing

Powder-coated

Ceiling Thickness (mm)

1-25

Details

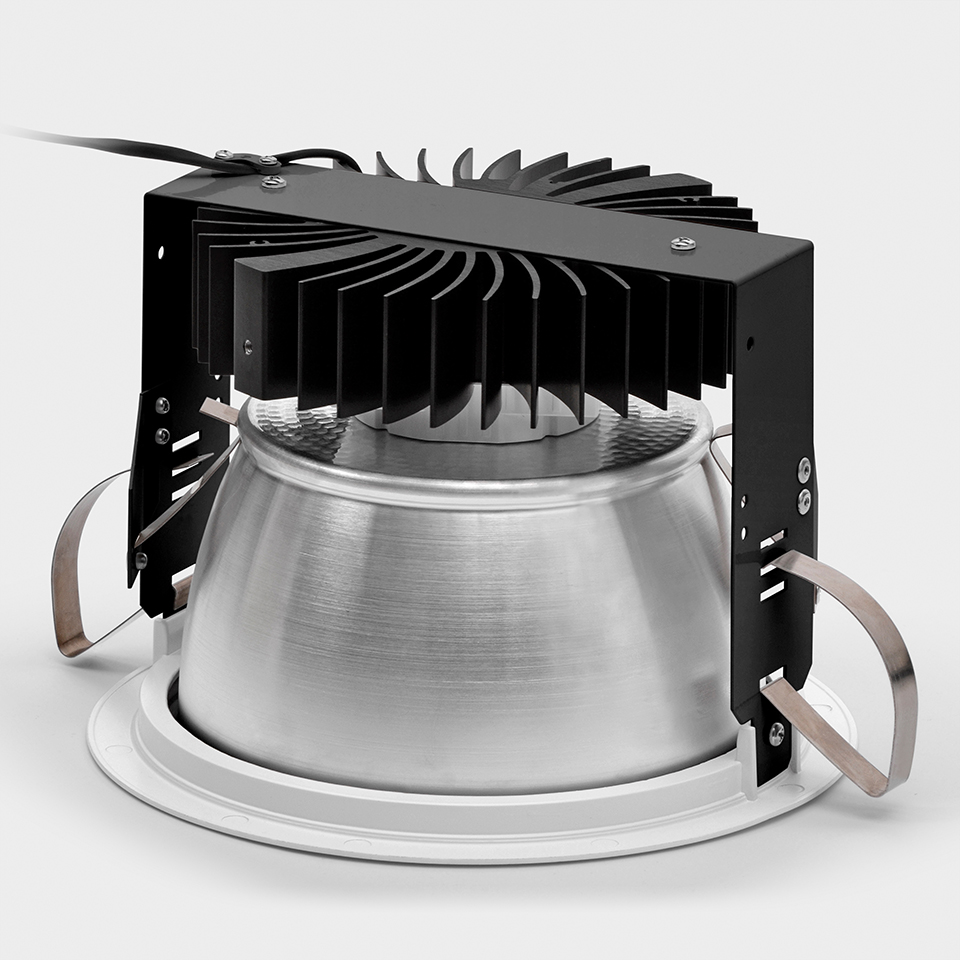

Passive dissipater

Passive dissipater

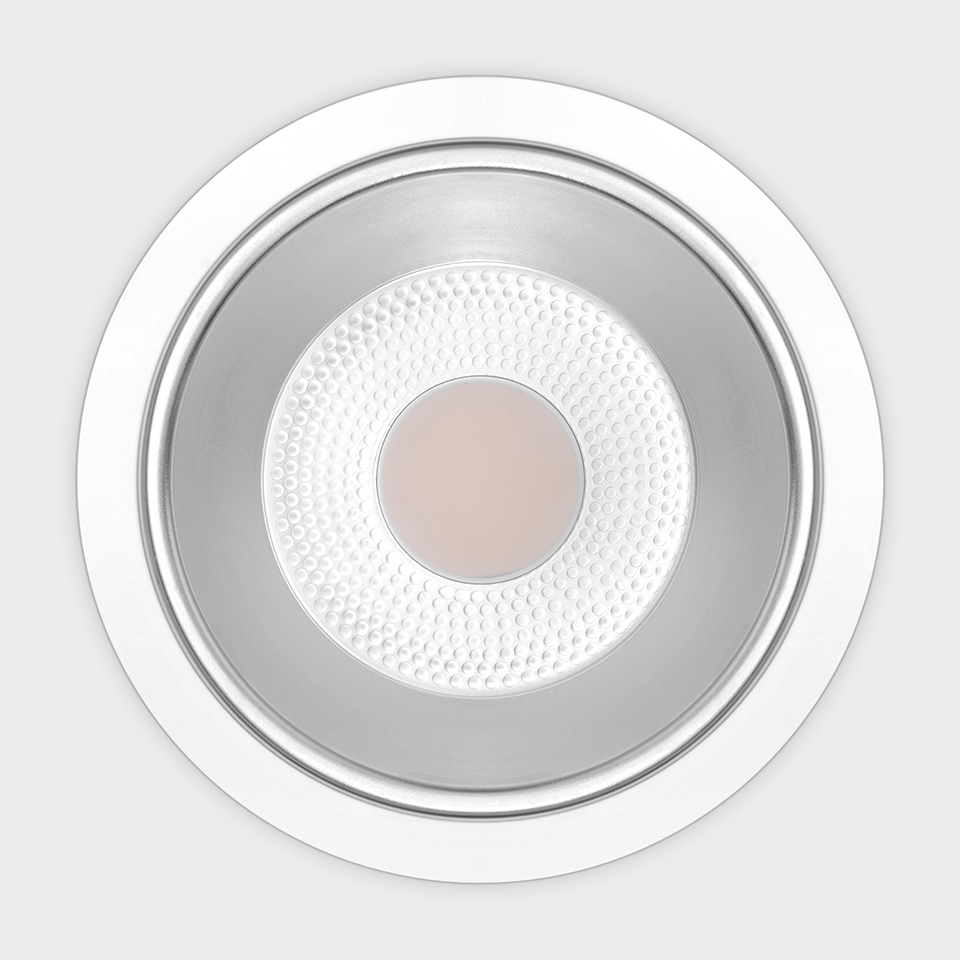

Front view

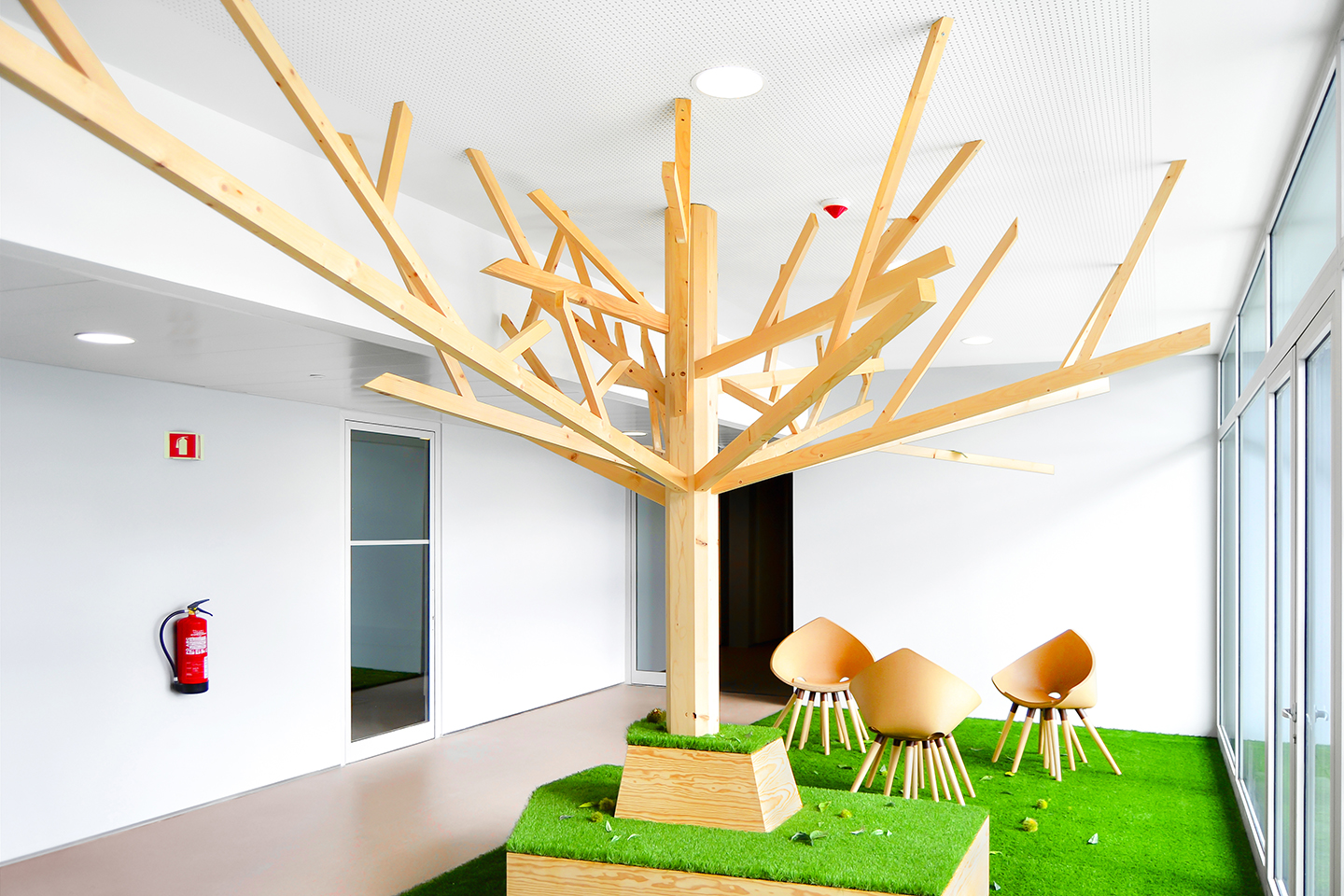

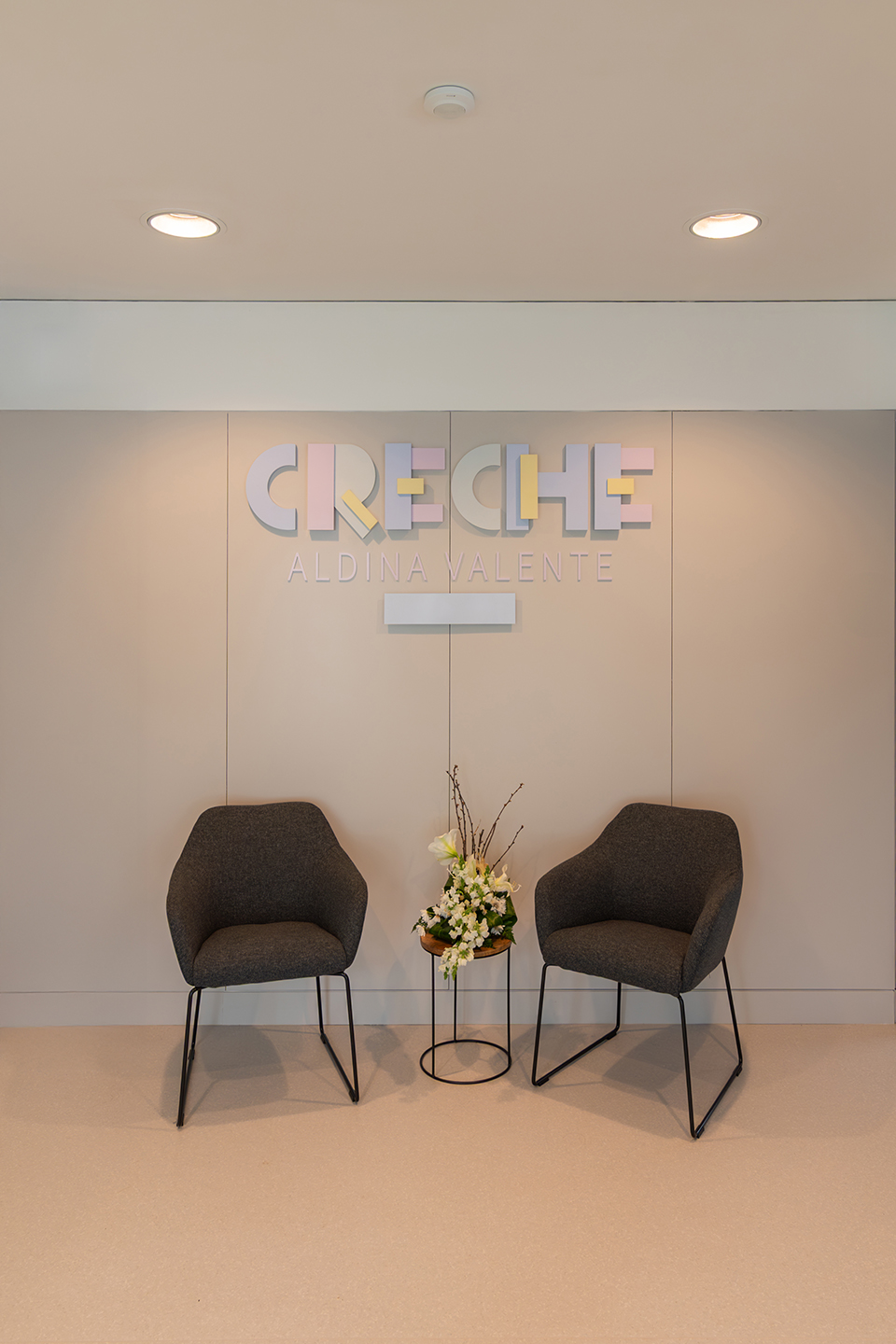

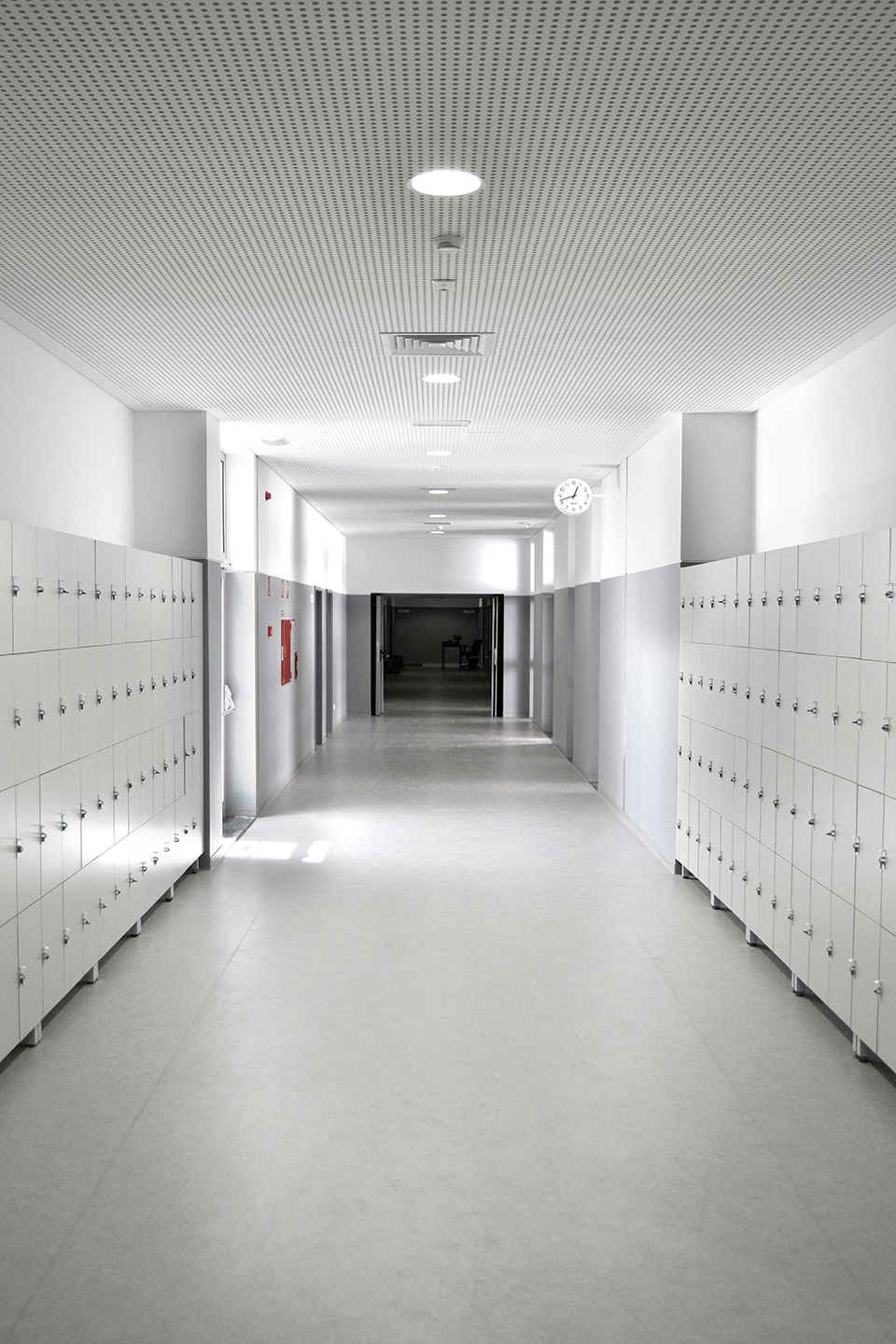

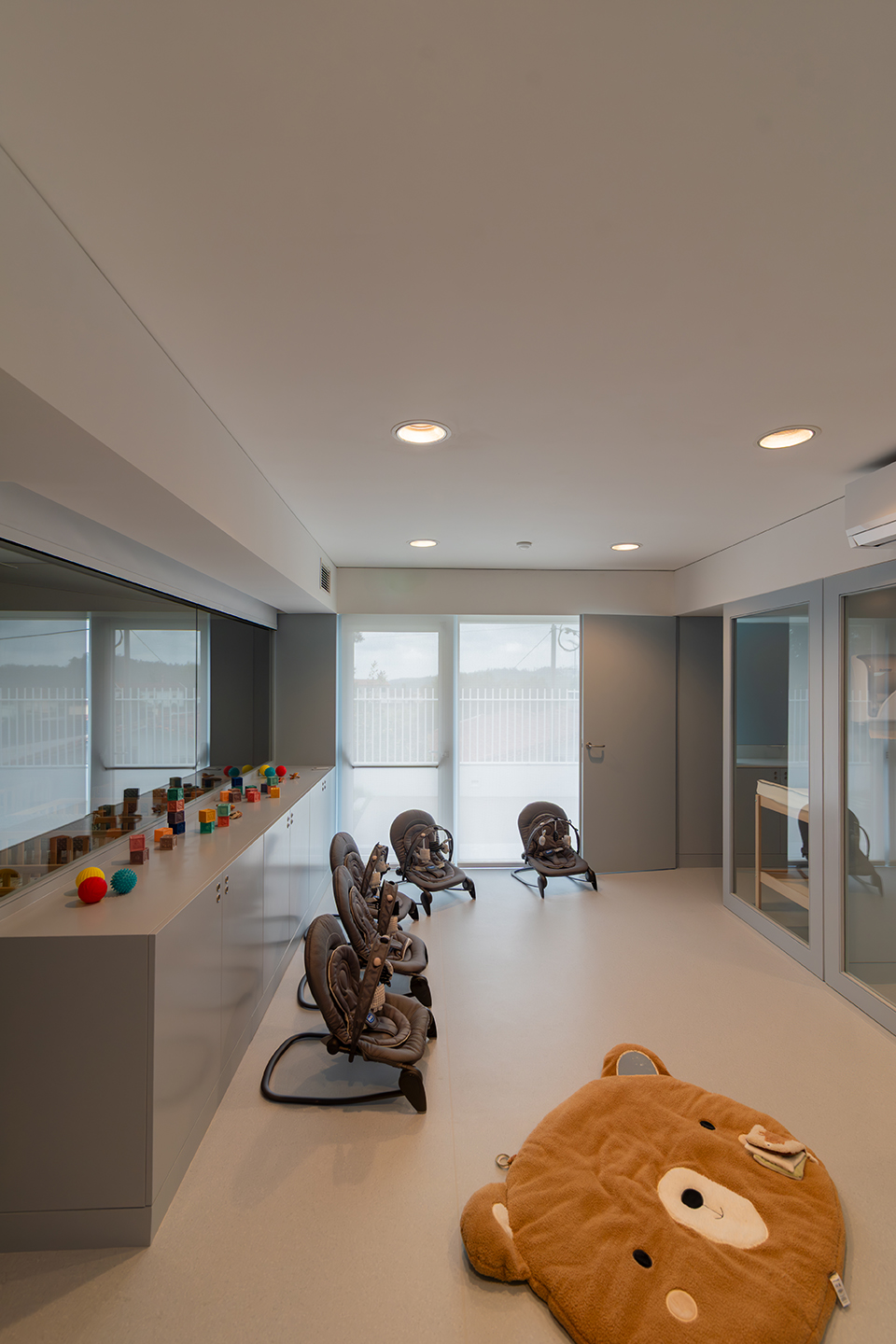

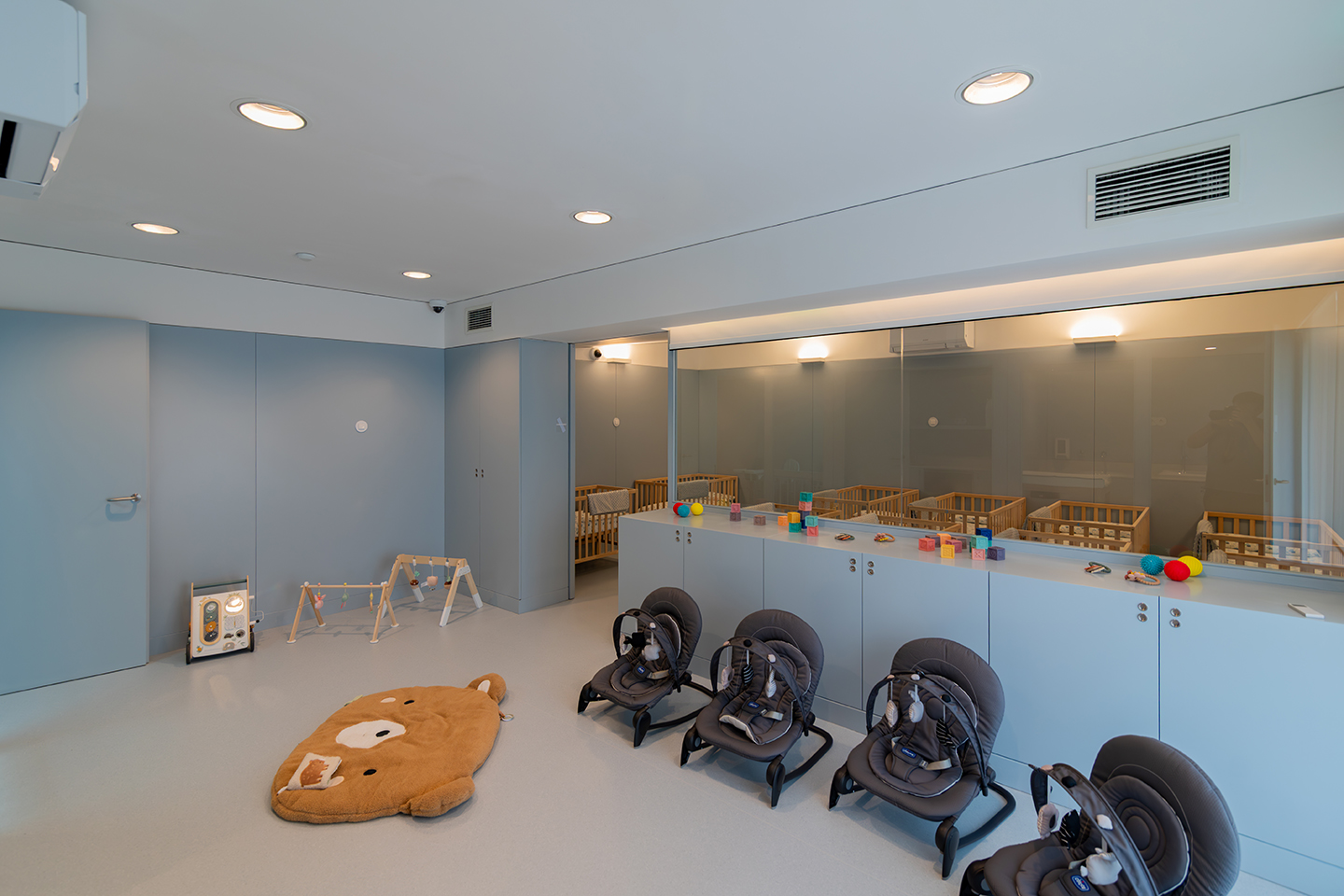

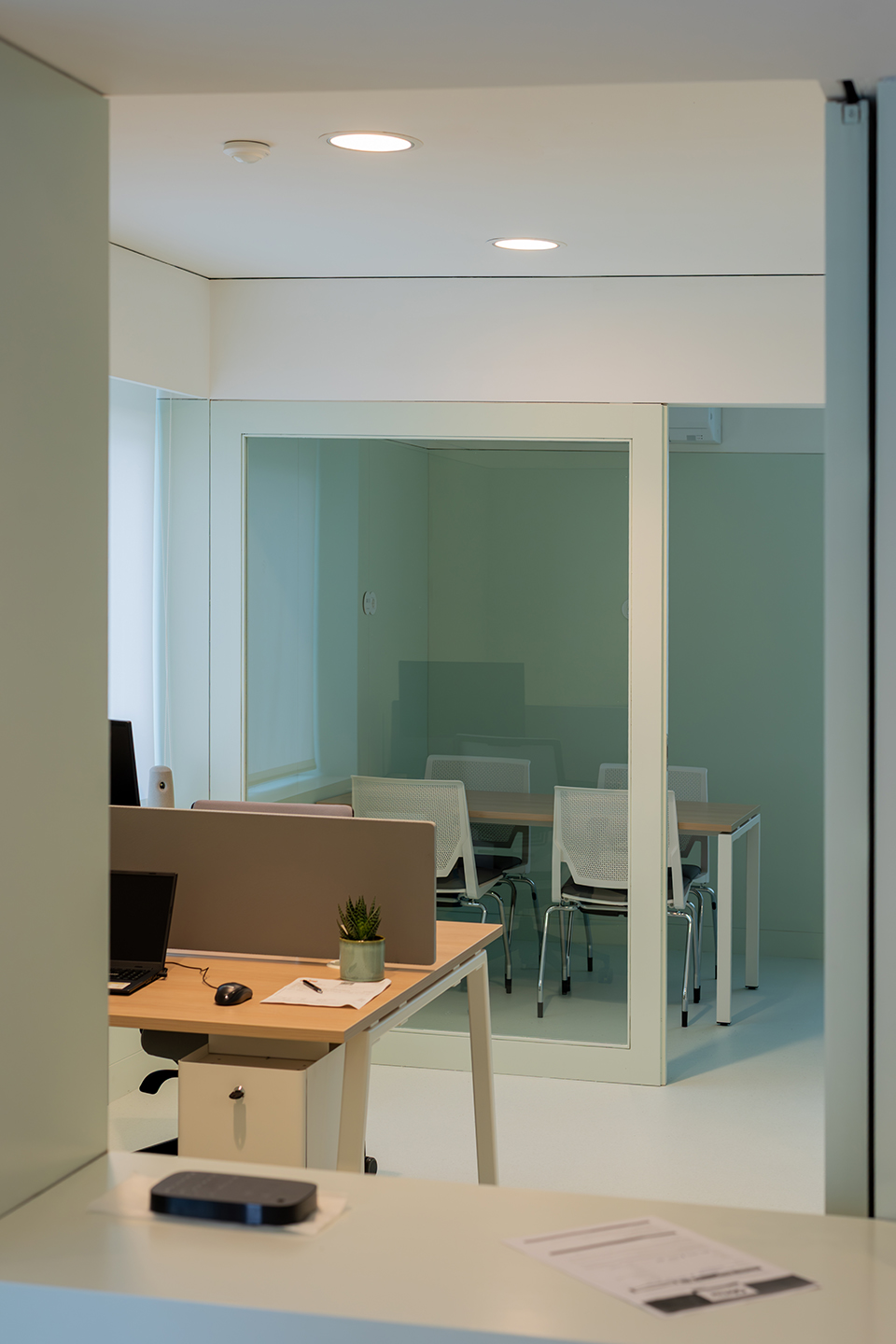

Inspiration

Downloads

To download product files, please log in or register here

Main Product Picture

Product Pictures

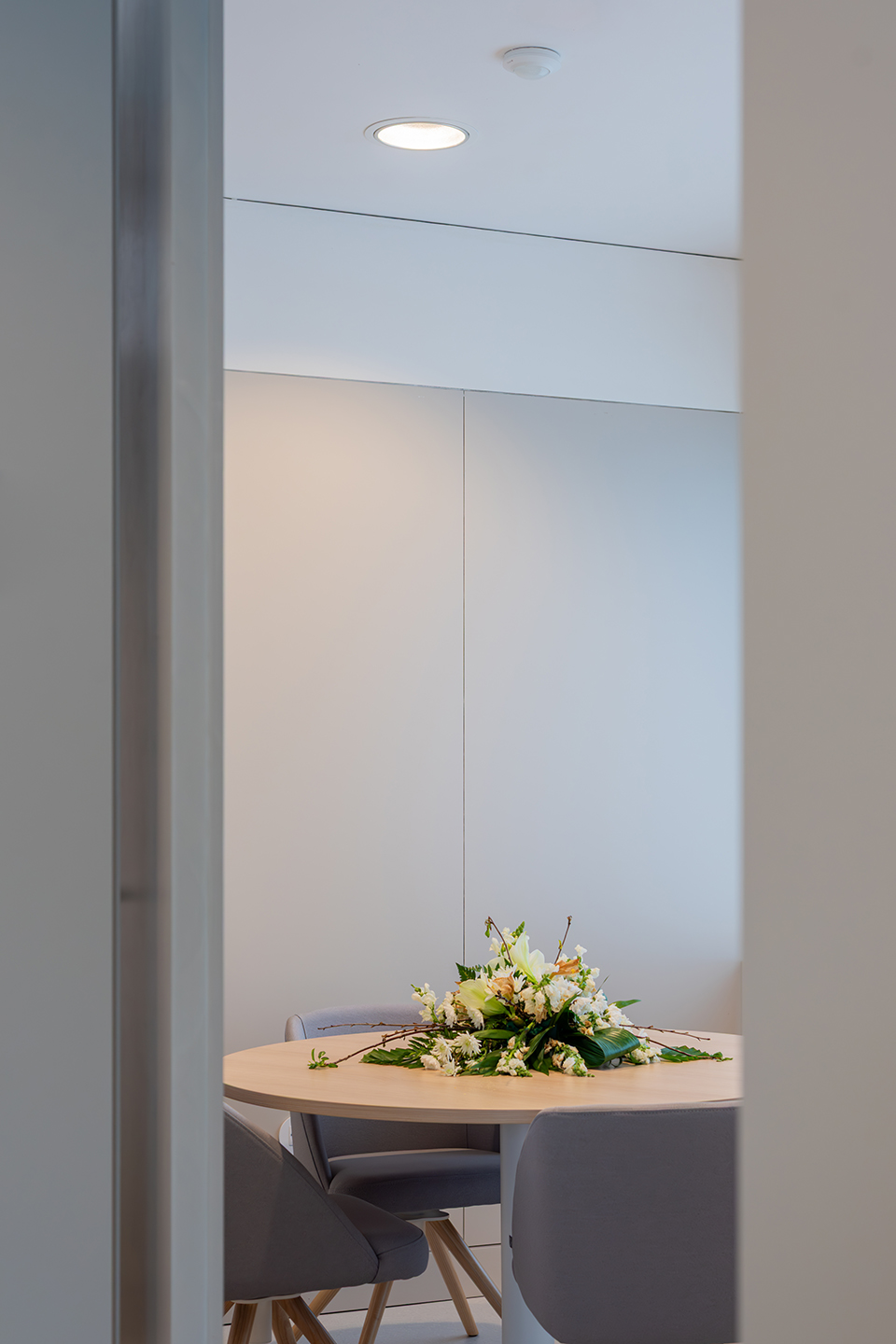

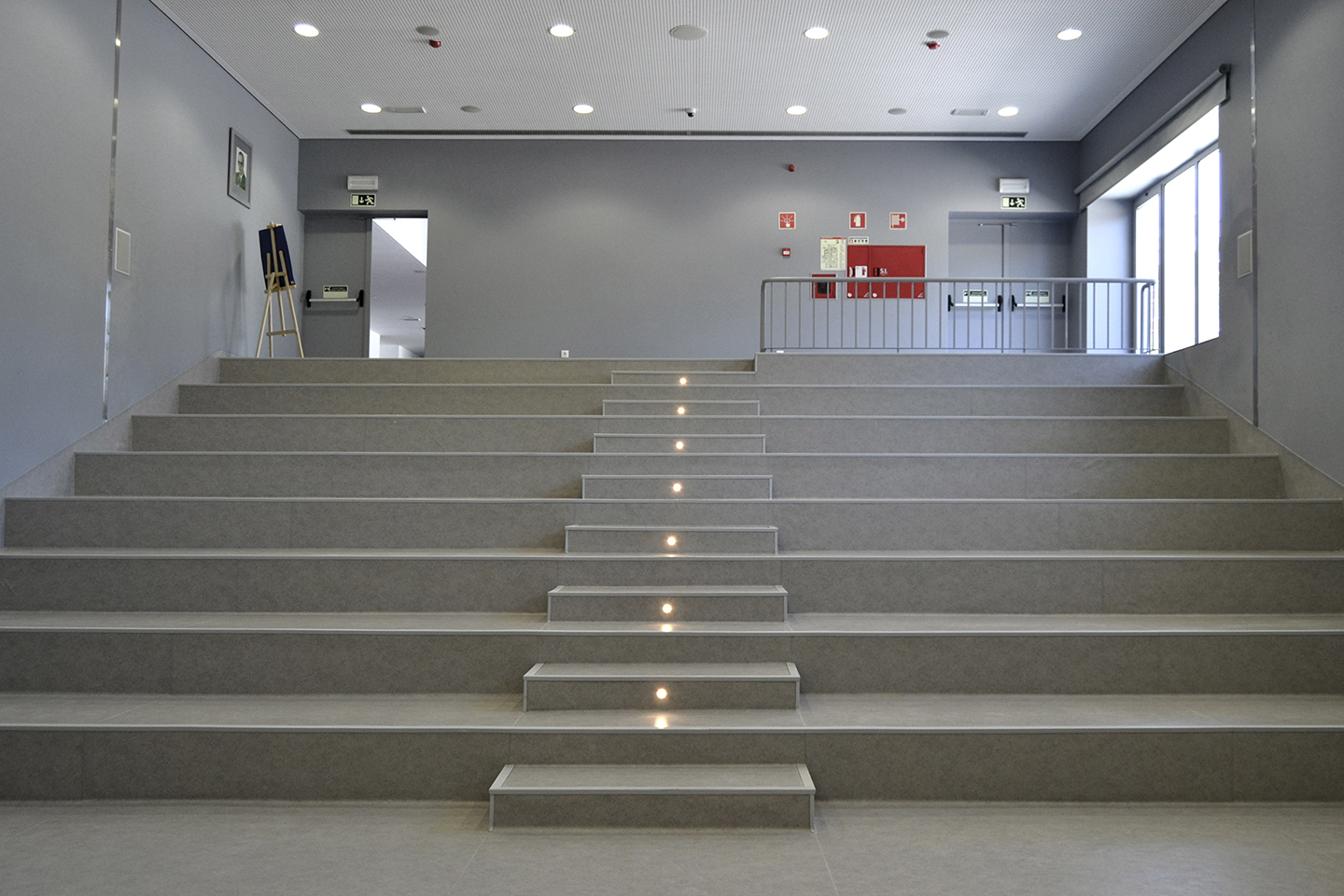

Application Pictures

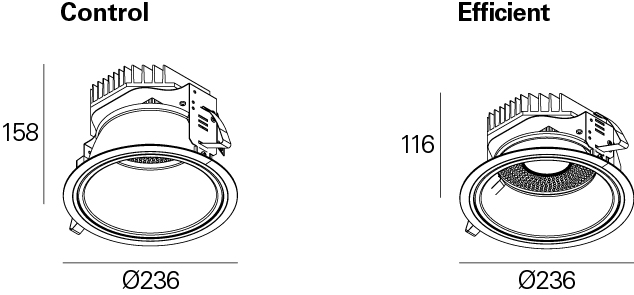

Dimensional Drawing JPG

Dimensional Drawing EPS

Catalogue Pages

DYNA

Results

48 Products

Code

Colour

W

lm Output

lm/W

mA

UGR

CCT (K)

Emergency (h)

Code

Colour

W

lm Output

lm/W

mA

UGR

CCT (K)

Emergency (h)

	90014L00H0B0000	Black (B)	24	3096	129	700	<22	4000	0
	90014L00H0B0300	Black (B)	24	2855	119	700	<22	3000	0
	90014L00H0B3000	Black (B)	24	3096	129	700	<22	4000	3
	90014L00H0B3300	Black (B)	24	2855	119	700	<22	3000	3
	90014L00H0W0000	White (W)	24	3096	129	700	<22	4000	0
	90014L00H0W0300	White (W)	24	2855	119	700	<22	3000	0
	90014L00H0W3000	White (W)	24	3096	129	700	<22	4000	3
	90014L00H0W3300	White (W)	24	2855	119	700	<22	3000	3
	90014L00L0B0000	Black (B)	8	1172	147	250	<19	4000	0
	90014L00L0B0300	Black (B)	8	1087	136	250	<19	3000	0
	90014L00L0B3000	Black (B)	8	1172	147	250	<19	4000	3
	90014L00L0B3300	Black (B)	8	1087	136	250	<19	3000	3
	90014L00L0W0000	White (W)	8	1172	147	250	<19	4000	0
	90014L00L0W0300	White (W)	8	1087	136	250	<19	3000	0
	90014L00L0W3000	White (W)	8	1172	147	250	<19	4000	3
	90014L00L0W3300	White (W)	8	1087	136	250	<19	3000	3
	90014L00M0B0000	Black (B)	17	2283	134	500	<19	4000	0
	90014L00M0B0300	Black (B)	17	2108	124	500	<19	3000	0
	90014L00M0B3000	Black (B)	17	2283	134	500	<19	4000	3
	90014L00M0B3300	Black (B)	17	2108	124	500	<19	3000	3
	90014L00M0W0000	White (W)	17	2283	134	500	<19	4000	0
	90014L00M0W0300	White (W)	17	2108	124	500	<19	3000	0
	90014L00M0W3000	White (W)	17	2283	134	500	<19	4000	3
	90014L00M0W3300	White (W)	17	2108	124	500	<19	3000	3
	90123L00H0B0000	Black (B)	24	3002	125	700	<19	4000	0
	90123L00H0B0300	Black (B)	24	2826	118	700	<19	3000	0
	90123L00H0B3000	Black (B)	24	3002	125	700	<19	4000	3
	90123L00H0B3300	Black (B)	24	2826	118	700	<19	3000	3
	90123L00H0W0000	White (W)	24	3002	125	700	<19	4000	0
	90123L00H0W0300	White (W)	24	2826	118	700	<19	3000	0
	90123L00H0W3000	White (W)	24	3002	125	700	<19	4000	3
	90123L00H0W3300	White (W)	24	2826	118	700	<19	3000	3
	90123L00L0B0000	Black (B)	8	1125	141	250	<16	4000	0
	90123L00L0B0300	Black (B)	8	1054	132	250	<16	3000	0
	90123L00L0B3000	Black (B)	8	1125	141	250	<16	4000	3
	90123L00L0B3300	Black (B)	8	1054	132	250	<16	3000	3
	90123L00L0W0000	White (W)	8	1125	141	250	<16	4000	0
	90123L00L0W0300	White (W)	8	1054	132	250	<16	3000	0
	90123L00L0W3000	White (W)	8	1125	141	250	<16	4000	3
	90123L00L0W3300	White (W)	8	1054	132	250	<16	3000	3
	90123L00M0B0000	Black (B)	17	2168	128	500	<19	4000	0
	90123L00M0B0300	Black (B)	17	2065	121	500	<19	3000	0
	90123L00M0B3000	Black (B)	17	2168	128	500	<19	4000	3
	90123L00M0B3300	Black (B)	17	2065	121	500	<19	3000	3
	90123L00M0W0000	White (W)	17	2168	128	500	<19	4000	0
	90123L00M0W0300	White (W)	17	2065	121	500	<19	3000	0
	90123L00M0W3000	White (W)	17	2168	128	500	<19	4000	3
	90123L00M0W3300	White (W)	17	2065	121	500	<19	3000	3
