TTP 50

View range presentation
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Public spaces, Industry, Outside
Mounting Type
Surface mounted, Suspended, Wall mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Polycarbonate tube
Finishing
Powder-coated
Pre-wiring / Through-wiring Included
1,5m long H07RN-F supply cable
Current Supply Cable Entry Point
End cap
Fixing System
Clamp

Details

Ceiling surface application
Ceiling surface application
Suspended application
Suspended application
Wall application
Wall application
Opal diffuser
Opal diffuser
Transparent diffuser
Transparent diffuser
PVC clamp D50
PVC clamp D50
Stainless steel clamp D50 with clip
Stainless steel clamp D50 with clip
Stainless steel clamp A1 D50
Stainless steel clamp A1 D50
Stainless steel clamp A2 D50
Stainless steel clamp A2 D50
Stainless steel clamp D50 with fast lock
Stainless steel clamp D50 with fast lock
Ceiling rose
Ceiling rose
Plastic cable gland
Plastic cable gland
Metal cable gland
Metal cable gland
Breathable metal cable gland
Breathable metal cable gland
Sensor
Sensor

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip

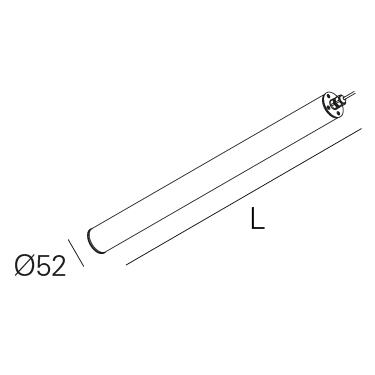

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Product Brochure
.pdf
Catalogue Pages
.pdf

TTP 50

Results
128 Products

Filter Variants

Results
Filter Variants
Optical System
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Colour Temperature (CCT)
Dimming
Emergency (h)
Length (mm)
Options
Clear Filters
Filters
Code
Optical System W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm) Options
Code
Optical System W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm) Options
90470L060E00000 TOP - Opal diffuser 26 3419 132 4000 ON/OFF 0 620 Polycarbonate end caps
90470L060E00300 TOP - Opal diffuser 26 3275 126 3000 ON/OFF 0 620 Polycarbonate end caps
90470L060E04000 TOP - Opal diffuser 26 3419 132 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90470L060E04300 TOP - Opal diffuser 26 3275 126 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90470L060H00000 TOP - Opal diffuser 27 3419 127 4000 DALI 2 0 620 Polycarbonate end caps
90470L060H00300 TOP - Opal diffuser 27 3275 121 3000 DALI 2 0 620 Polycarbonate end caps
90470L090E00000 TOP - Opal diffuser 40 5129 128 4000 ON/OFF 0 900 Polycarbonate end caps
90470L090E00300 TOP - Opal diffuser 40 4913 123 3000 ON/OFF 0 900 Polycarbonate end caps
90470L090E04000 TOP - Opal diffuser 40 5129 128 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90470L090E04300 TOP - Opal diffuser 40 4913 123 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90470L090H00000 TOP - Opal diffuser 39 5129 132 4000 DALI 2 0 900 Polycarbonate end caps
90470L090H00300 TOP - Opal diffuser 39 4913 126 3000 DALI 2 0 900 Polycarbonate end caps
90470L120E00000 TOP - Opal diffuser 51 6838 134 4000 ON/OFF 0 1180 Polycarbonate end caps
90470L120E00300 TOP - Opal diffuser 51 6551 128 3000 ON/OFF 0 1180 Polycarbonate end caps
90470L120E03000 TOP - Opal diffuser 51 6838 134 4000 ON/OFF 3 1180 Polycarbonate end caps
90470L120E03300 TOP - Opal diffuser 51 6551 128 3000 ON/OFF 3 1180 Polycarbonate end caps
90470L120E04000 TOP - Opal diffuser 51 6838 134 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90470L120E04300 TOP - Opal diffuser 51 6551 128 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90470L120E06000 TOP - Opal diffuser 51 6838 134 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90470L120E06300 TOP - Opal diffuser 51 6551 128 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90470L120H00000 TOP - Opal diffuser 51 6838 134 4000 DALI 2 0 1180 Polycarbonate end caps
90470L120H00300 TOP - Opal diffuser 51 6551 128 3000 DALI 2 0 1180 Polycarbonate end caps
90470L150E00000 TOP - Opal diffuser 63 8548 136 4000 ON/OFF 0 1460 Polycarbonate end caps
90470L150E00300 TOP - Opal diffuser 63 8188 130 3000 ON/OFF 0 1460 Polycarbonate end caps
90470L150E03000 TOP - Opal diffuser 63 8548 136 4000 ON/OFF 3 1460 Polycarbonate end caps
90470L150E03300 TOP - Opal diffuser 63 8188 130 3000 ON/OFF 3 1460 Polycarbonate end caps
90470L150E04000 TOP - Opal diffuser 63 8548 136 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90470L150E04300 TOP - Opal diffuser 63 8188 130 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90470L150E06000 TOP - Opal diffuser 63 8548 136 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90470L150E06300 TOP - Opal diffuser 63 8188 130 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90470L150H00000 TOP - Opal diffuser 63 8548 136 4000 DALI 2 0 1460 Polycarbonate end caps
90470L150H00300 TOP - Opal diffuser 63 8188 130 3000 DALI 2 0 1460 Polycarbonate end caps
90471L060E00000 TUP - Transparent diffuser 26 3982 153 4000 ON/OFF 0 620 Polycarbonate end caps
90471L060E00300 TUP - Transparent diffuser 26 3814 147 3000 ON/OFF 0 620 Polycarbonate end caps
90471L060E04000 TUP - Transparent diffuser 26 3982 153 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90471L060E04300 TUP - Transparent diffuser 26 3814 147 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90471L060H00000 TUP - Transparent diffuser 27 3982 147 4000 DALI 2 0 620 Polycarbonate end caps
90471L060H00300 TUP - Transparent diffuser 27 3814 141 3000 DALI 2 0 620 Polycarbonate end caps
90471L090E00000 TUP - Transparent diffuser 40 5973 149 4000 ON/OFF 0 900 Polycarbonate end caps
90471L090E00300 TUP - Transparent diffuser 40 5721 143 3000 ON/OFF 0 900 Polycarbonate end caps
90471L090E04000 TUP - Transparent diffuser 40 5973 149 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90471L090E04300 TUP - Transparent diffuser 40 5721 143 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90471L090H00000 TUP - Transparent diffuser 39 5973 153 4000 DALI 2 0 900 Polycarbonate end caps
90471L090H00300 TUP - Transparent diffuser 39 5721 147 3000 DALI 2 0 900 Polycarbonate end caps
90471L120E00000 TUP - Transparent diffuser 51 7964 156 4000 ON/OFF 0 1180 Polycarbonate end caps
90471L120E00300 TUP - Transparent diffuser 51 7629 150 3000 ON/OFF 0 1180 Polycarbonate end caps
90471L120E03000 TUP - Transparent diffuser 51 7964 156 4000 ON/OFF 3 1180 Polycarbonate end caps
90471L120E03300 TUP - Transparent diffuser 51 7629 150 3000 ON/OFF 3 1180 Polycarbonate end caps
90471L120E04000 TUP - Transparent diffuser 51 7964 156 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90471L120E04300 TUP - Transparent diffuser 51 7629 150 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90471L120E06000 TUP - Transparent diffuser 51 7964 156 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90471L120E06300 TUP - Transparent diffuser 51 7629 150 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90471L120H00000 TUP - Transparent diffuser 51 7964 156 4000 DALI 2 0 1180 Polycarbonate end caps
90471L120H00300 TUP - Transparent diffuser 51 7629 150 3000 DALI 2 0 1180 Polycarbonate end caps
90471L150E00000 TUP - Transparent diffuser 63 9954 158 4000 ON/OFF 0 1460 Polycarbonate end caps
90471L150E00300 TUP - Transparent diffuser 63 9536 151 3000 ON/OFF 0 1460 Polycarbonate end caps
90471L150E03000 TUP - Transparent diffuser 63 9954 158 4000 ON/OFF 3 1460 Polycarbonate end caps
90471L150E03300 TUP - Transparent diffuser 63 9536 151 3000 ON/OFF 3 1460 Polycarbonate end caps
90471L150E04000 TUP - Transparent diffuser 63 9954 158 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90471L150E04300 TUP - Transparent diffuser 63 9536 151 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90471L150E06000 TUP - Transparent diffuser 63 9954 158 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90471L150E06300 TUP - Transparent diffuser 63 9536 151 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90471L150H00000 TUP - Transparent diffuser 63 9954 158 4000 DALI 2 0 1460 Polycarbonate end caps
90471L150H00300 TUP - Transparent diffuser 63 9536 151 3000 DALI 2 0 1460 Polycarbonate end caps
90472L060E00000 TOP - Opal diffuser 12 1573 131 4000 ON/OFF 0 620 Polycarbonate end caps
90472L060E00300 TOP - Opal diffuser 12 1507 126 3000 ON/OFF 0 620 Polycarbonate end caps
90472L060E04000 TOP - Opal diffuser 12 1573 131 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90472L060E04300 TOP - Opal diffuser 12 1507 126 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90472L060H00000 TOP - Opal diffuser 12 1573 131 4000 DALI 2 0 620 Polycarbonate end caps
90472L060H00300 TOP - Opal diffuser 12 1507 126 3000 DALI 2 0 620 Polycarbonate end caps
90472L090E00000 TOP - Opal diffuser 17 2359 139 4000 ON/OFF 0 900 Polycarbonate end caps
90472L090E00300 TOP - Opal diffuser 17 2261 133 3000 ON/OFF 0 900 Polycarbonate end caps
90472L090E04000 TOP - Opal diffuser 17 2359 139 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90472L090E04300 TOP - Opal diffuser 17 2261 133 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90472L090H00000 TOP - Opal diffuser 17 2359 139 4000 DALI 2 0 900 Polycarbonate end caps
90472L090H00300 TOP - Opal diffuser 17 2261 133 3000 DALI 2 0 900 Polycarbonate end caps
90472L120E00000 TOP - Opal diffuser 21 3146 150 4000 ON/OFF 0 1180 Polycarbonate end caps
90472L120E00300 TOP - Opal diffuser 21 3014 144 3000 ON/OFF 0 1180 Polycarbonate end caps
90472L120E03000 TOP - Opal diffuser 21 3146 150 4000 ON/OFF 3 1180 Polycarbonate end caps
90472L120E03300 TOP - Opal diffuser 21 3014 144 3000 ON/OFF 3 1180 Polycarbonate end caps
90472L120E04000 TOP - Opal diffuser 21 3146 150 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90472L120E04300 TOP - Opal diffuser 21 3014 144 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90472L120E06000 TOP - Opal diffuser 21 3146 150 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90472L120E06300 TOP - Opal diffuser 21 3014 144 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90472L120H00000 TOP - Opal diffuser 22 3146 143 4000 DALI 2 0 1180 Polycarbonate end caps
90472L120H00300 TOP - Opal diffuser 22 3014 137 3000 DALI 2 0 1180 Polycarbonate end caps
90472L150E00000 TOP - Opal diffuser 26 3932 151 4000 ON/OFF 0 1460 Polycarbonate end caps
90472L150E00300 TOP - Opal diffuser 26 3768 145 3000 ON/OFF 0 1460 Polycarbonate end caps
90472L150E03000 TOP - Opal diffuser 26 3932 151 4000 ON/OFF 3 1460 Polycarbonate end caps
90472L150E03300 TOP - Opal diffuser 26 3768 145 3000 ON/OFF 3 1460 Polycarbonate end caps
90472L150E04000 TOP - Opal diffuser 26 3932 151 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90472L150E04300 TOP - Opal diffuser 26 3768 145 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90472L150E06000 TOP - Opal diffuser 26 3932 151 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90472L150E06300 TOP - Opal diffuser 26 3768 145 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90472L150H00000 TOP - Opal diffuser 28 3932 140 4000 DALI 2 0 1460 Polycarbonate end caps
90472L150H00300 TOP - Opal diffuser 28 3768 135 3000 DALI 2 0 1460 Polycarbonate end caps
90473L060E00000 TUP - Transparent diffuser 12 1868 156 4000 ON/OFF 0 620 Polycarbonate end caps
90473L060E00300 TUP - Transparent diffuser 12 1790 149 3000 ON/OFF 0 620 Polycarbonate end caps
90473L060E04000 TUP - Transparent diffuser 12 1868 156 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90473L060E04300 TUP - Transparent diffuser 12 1790 149 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90473L060H00000 TUP - Transparent diffuser 12 1868 156 4000 DALI 2 0 620 Polycarbonate end caps
90473L060H00300 TUP - Transparent diffuser 12 1790 149 3000 DALI 2 0 620 Polycarbonate end caps
90473L090E00000 TUP - Transparent diffuser 17 2802 165 4000 ON/OFF 0 900 Polycarbonate end caps
90473L090E00300 TUP - Transparent diffuser 17 2685 158 3000 ON/OFF 0 900 Polycarbonate end caps
90473L090E04000 TUP - Transparent diffuser 17 2802 165 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90473L090E04300 TUP - Transparent diffuser 17 2685 158 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90473L090H00000 TUP - Transparent diffuser 17 2802 165 4000 DALI 2 0 900 Polycarbonate end caps
90473L090H00300 TUP - Transparent diffuser 17 2685 158 3000 DALI 2 0 900 Polycarbonate end caps
90473L120E00000 TUP - Transparent diffuser 21 3735 178 4000 ON/OFF 0 1180 Polycarbonate end caps
90473L120E00300 TUP - Transparent diffuser 21 3580 170 3000 ON/OFF 0 1180 Polycarbonate end caps
90473L120E03000 TUP - Transparent diffuser 21 3735 178 4000 ON/OFF 3 1180 Polycarbonate end caps
90473L120E03300 TUP - Transparent diffuser 21 3580 170 3000 ON/OFF 3 1180 Polycarbonate end caps
90473L120E04000 TUP - Transparent diffuser 21 3735 178 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90473L120E04300 TUP - Transparent diffuser 21 3580 170 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90473L120E06000 TUP - Transparent diffuser 21 3735 178 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90473L120E06300 TUP - Transparent diffuser 21 3580 170 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90473L120H00000 TUP - Transparent diffuser 22 3735 170 4000 DALI 2 0 1180 Polycarbonate end caps
90473L120H00300 TUP - Transparent diffuser 22 3580 163 3000 DALI 2 0 1180 Polycarbonate end caps
90473L150E00000 TUP - Transparent diffuser 26 4669 180 4000 ON/OFF 0 1460 Polycarbonate end caps
90473L150E00300 TUP - Transparent diffuser 26 4475 172 3000 ON/OFF 0 1460 Polycarbonate end caps
90473L150E03000 TUP - Transparent diffuser 26 4669 180 4000 ON/OFF 3 1460 Polycarbonate end caps
90473L150E03300 TUP - Transparent diffuser 26 4475 172 3000 ON/OFF 3 1460 Polycarbonate end caps
90473L150E04000 TUP - Transparent diffuser 26 4669 180 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90473L150E04300 TUP - Transparent diffuser 26 4475 172 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90473L150E06000 TUP - Transparent diffuser 26 4669 180 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90473L150E06300 TUP - Transparent diffuser 26 4475 172 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90473L150H00000 TUP - Transparent diffuser 28 4669 167 4000 DALI 2 0 1460 Polycarbonate end caps
90473L150H00300 TUP - Transparent diffuser 28 4475 160 3000 DALI 2 0 1460 Polycarbonate end caps
Explore our products
Go to Products
Title Cookie Settings

INDELAGUE may use cookies to memorize your login data, collect statistics to optimize the website’s functionality and to carry out marketing actions based on your interests.You can customize used cookies in .

Strictly Necessary Cookies
These cookies are essential to provide services available on our website and to enable you to use certain features on our website.
Without these cookies, we cannot provide certain services on our site.

Functionality cookies
These cookies are used to provide a more personalised experience on our website and to remember the choices you make when using our website.
For example, we may use functionality cookies to remember your language preferences and/or your login details.

Customization Cookies
These cookies are used to recognise visitors when they return to our site. This allows us to personalise the content of the site for you, greet you by name and remember your preferences (for example, your choice of language or region).

Security Cookies
These cookies are used to protect the security of our website and your data. This includes cookies that are used to allow you to log in to secure areas of our website.

Measurement and Performance Cookies
These cookies are used to collect information to analyse traffic on our site and understand how visitors are using our site.
For example, these cookies can measure factors such as the time spent on the site or the pages visited, this will allow us to understand how we can improve our site for users.
The information collected through these measurement and performance cookies does not identify any individual visitor.

Advertising Cookies
These cookies are used to provide adverts that are more relevant to you and your interests. They are also used to limit the number of times you see an advert and to help measure the effectiveness of an advertising campaign. They may be placed by us or by third parties with our permission. They remember that you have visited a site and this information is shared with other organisations, such as advertisers.

Cookie Policy
