VEGA /E

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Recessed
Control Gear Included
No
Body Material
Aluminium
Frame Material
Injected ABS
Finishing
Powder-coated
Ceiling Thickness (mm)
1-25

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip

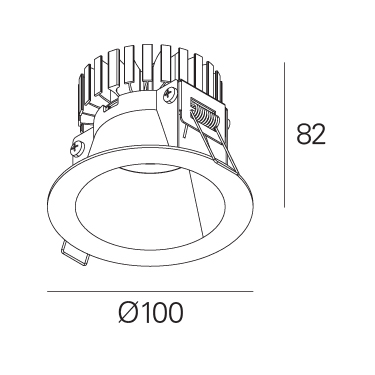

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

VEGA /E

Results
24 Products

Filter Variants

Results
Filter Variants
Optical System
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Input luminaire current (mA)
UGR
Colour Temperature (CCT) (K)
Clear Filters
Filters
Code
Optical System Colour W lm Output lm/W mA UGR CCT (K)
Code
Optical System Colour W lm Output lm/W mA UGR CCT (K)
90430L0080B0000 LIGHT+ - Opal diffuser Black (B) 7 649 93 200 <22 4000
90430L0080B0300 LIGHT+ - Opal diffuser Black (B) 7 642 92 200 <22 3000
90430L0080W0000 LIGHT+ - Opal diffuser White (W) 7 649 93 200 <22 4000
90430L0080W0300 LIGHT+ - Opal diffuser White (W) 7 642 92 200 <22 3000
90430L0110B0000 LIGHT+ - Opal diffuser Black (B) 8 791 99 250 <22 4000
90430L0110B0300 LIGHT+ - Opal diffuser Black (B) 8 783 98 250 <22 3000
90430L0110W0000 LIGHT+ - Opal diffuser White (W) 8 791 99 250 <22 4000
90430L0110W0300 LIGHT+ - Opal diffuser White (W) 8 783 98 250 <22 3000
90430L0150B0000 LIGHT+ - Opal diffuser Black (B) 12 1082 90 350 <22 4000
90430L0150B0300 LIGHT+ - Opal diffuser Black (B) 12 1070 89 350 <22 3000
90430L0150W0000 LIGHT+ - Opal diffuser White (W) 12 1082 90 350 <22 4000
90430L0150W0300 LIGHT+ - Opal diffuser White (W) 12 1070 89 350 <22 3000
90441L0080B0000 PRISM+ - Microprismatic diffuser Black (B) 7 701 100 200 <19 4000
90441L0080B0300 PRISM+ - Microprismatic diffuser Black (B) 7 661 94 200 <19 3000
90441L0080W0000 PRISM+ - Microprismatic diffuser White (W) 7 701 100 200 <19 4000
90441L0080W0300 PRISM+ - Microprismatic diffuser White (W) 7 661 94 200 <19 3000
90441L0110B0000 PRISM+ - Microprismatic diffuser Black (B) 8 856 107 250 <22 4000
90441L0110B0300 PRISM+ - Microprismatic diffuser Black (B) 8 819 102 250 <22 3000
90441L0110W0000 PRISM+ - Microprismatic diffuser White (W) 8 856 107 250 <22 4000
90441L0110W0300 PRISM+ - Microprismatic diffuser White (W) 8 819 102 250 <22 3000
90441L0150B0000 PRISM+ - Microprismatic diffuser Black (B) 12 1152 96 350 <22 4000
90441L0150B0300 PRISM+ - Microprismatic diffuser Black (B) 12 1103 92 350 <22 3000
90441L0150W0000 PRISM+ - Microprismatic diffuser White (W) 12 1152 96 350 <22 4000
90441L0150W0300 PRISM+ - Microprismatic diffuser White (W) 12 1103 92 350 <22 3000
