TTP 50 LINE L1180 TOP DALI 840 END LO
90484L120H00050
Copied to Clipboard
Application Areas
Public spaces, Industry, Outside
Mounting Type

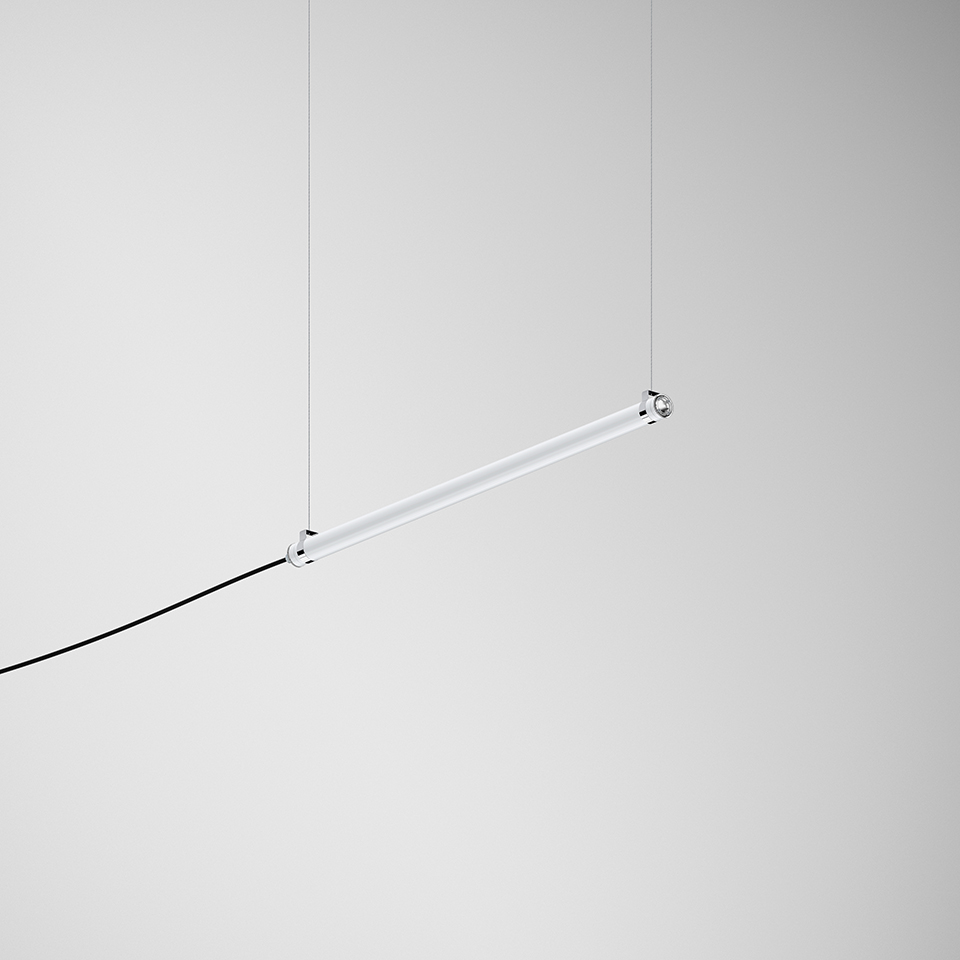

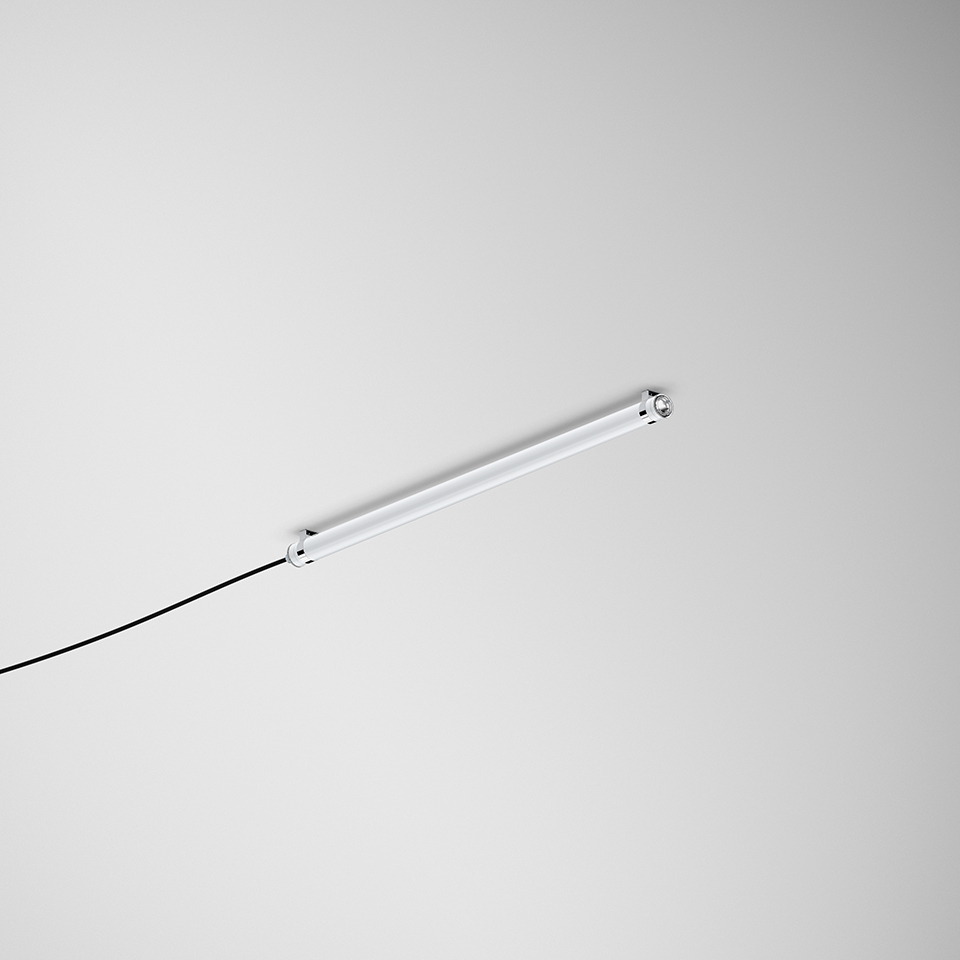

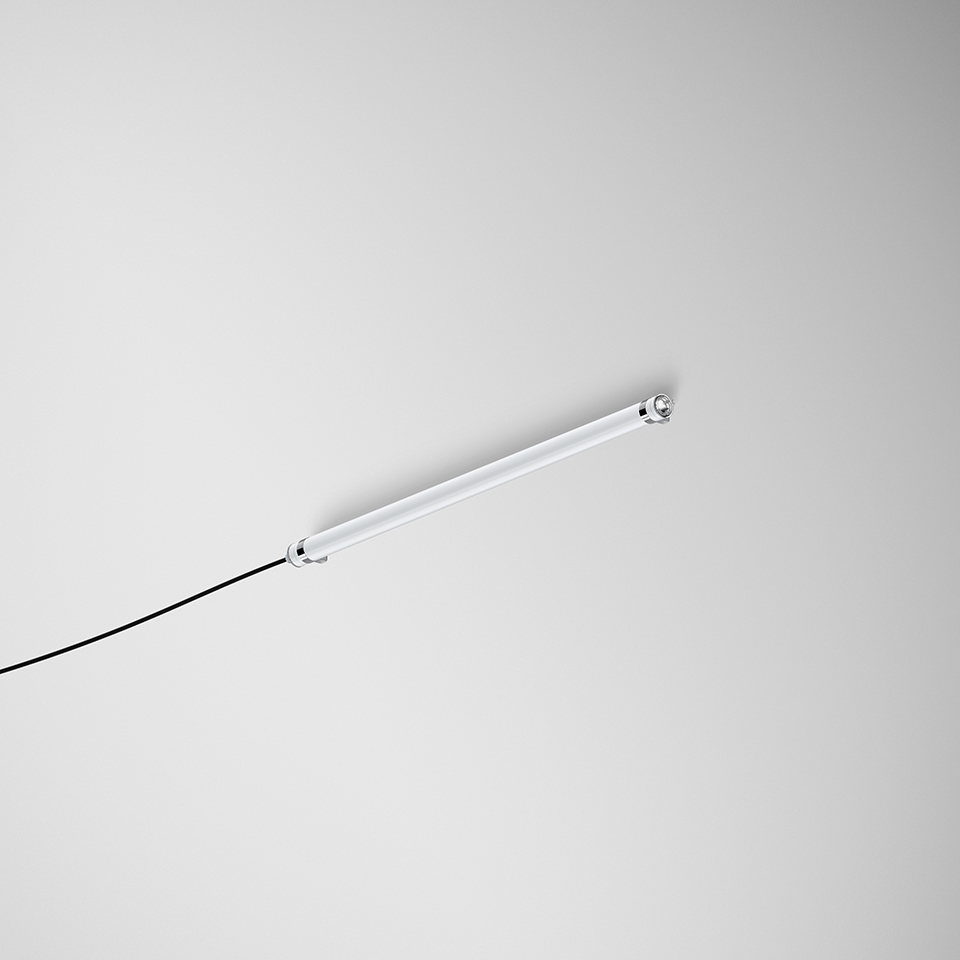

Surface mounted, Suspended, Wall mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Notes
• To complete the product it is necessary to order the fixation system separately;• For suspended version it is necessary to order the suspension and the ceiling rose. Please order separately;
• The maximum number of High-Output luminaires that can be connected in line is 15. With sensor the maximum number is 9;
• The maximum number of Low-Output luminaires that can be connected in line is 35. With sensor the maximum number is 16.
Luminaire Type
Straight line luminaire
Luminaire Module
End (END)
Insulation Class
II
Ingress Protection (IP)
68 (1,2m)
Mechanical Impact Protection (IK)
10
Ambient Temperature Range (°C)
]-20;30[
Fixing System
Clamp
Warranty (Years)
5
Current Supply Cable Entry Point
End cap
Body Material
Polycarbonate tube
Finishing
Epoxy polyester powder coated
Colour
White (W)
Glow-wire Resistance (°C)
960
Optical System
TOP - Opal diffuser
Light Distribution
Direct
Beam Angle (°)
124
Light Source
LED
Input Power (W)
22
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,91
Luminaire Luminous Flux (lm)
3146
Luminaire Efficacy (lm/W)
143
United Glare Rating (UGR)
<25
LED Lifetime - Rated Median Useful Life
80.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
LED Module Forward Voltage Range (VF)
32,7
Power Supply Dimming
DALI 2
Central Battery Emergency Lighting System (VDC)
176-280
Maximum of Luminaires by Magnetic Circuit Breaker B16
<53
Inrush Current (A)
20
Pulse Duration (µs)
139

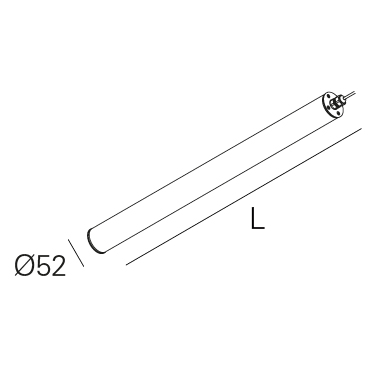

L - Length (mm)
1180
D - Diameter (mm)
Ø52
Net Weight (kg)
1.45
