6TH ELEMENT FIX

View range presentation
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted
Control Gear Included
No
Body Material
Die-cast aluminium
Finishing
Powder-coated

Details

Light effect with 50° lens
Light effect with 50° lens
Light effect with 80° lens
Light effect with 80° lens

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip

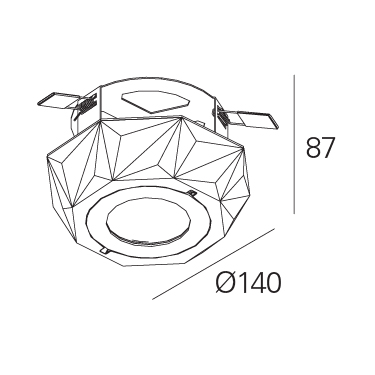

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

6TH ELEMENT FIX

Results
24 Products

Filter Variants

Results
Filter Variants
Colour
Beam angle
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Input luminaire current (mA)
UGR
Colour Temperature (CCT)
Clear Filters
Filters
Code
Colour Beam angle W lm Output lm/W mA UGR CCT (K)
Code
Colour Beam angle W lm Output lm/W mA UGR CCT (K)
90303L0090B0A50 Black (B) 51 9 1128 125 250 <19 4000
90303L0090B0A80 Black (B) 78 9 1091 121 250 <25 4000
90303L0090B0B50 Black (B) 49 9 1065 118 250 <19 3000
90303L0090B0B80 Black (B) 78 9 1030 114 250 <25 3000
90303L0090R0A50 Rusty chain (R) 51 9 1128 125 250 <19 4000
90303L0090R0A80 Rusty chain (R) 78 9 1091 121 250 <25 4000
90303L0090R0B50 Rusty chain (R) 49 9 1065 118 250 <19 3000
90303L0090R0B80 Rusty chain (R) 78 9 1030 114 250 <25 3000
90303L0090W0A50 White (W) 51 9 1128 125 250 <19 4000
90303L0090W0A80 White (W) 78 9 1091 121 250 <25 4000
90303L0090W0B50 White (W) 49 9 1065 118 250 <19 3000
90303L0090W0B80 White (W) 78 9 1030 114 250 <25 3000
90303L0160B0A50 Black (B) 51 12 1512 126 350 <19 4000
90303L0160B0A80 Black (B) 78 12 1428 119 350 <28 4000
90303L0160B0B50 Black (B) 49 12 1438 120 350 <19 3000
90303L0160B0B80 Black (B) 78 12 1375 115 350 <28 3000
90303L0160R0A50 Rusty chain (R) 51 12 1512 126 350 <19 4000
90303L0160R0A80 Rusty chain (R) 78 12 1428 119 350 <28 4000
90303L0160R0B50 Rusty chain (R) 49 12 1438 120 350 <19 3000
90303L0160R0B80 Rusty chain (R) 78 12 1375 115 350 <28 3000
90303L0160W0A50 White (W) 51 12 1512 126 350 <19 4000
90303L0160W0A80 White (W) 78 12 1428 119 350 <28 4000
90303L0160W0B50 White (W) 49 12 1438 120 350 <19 3000
90303L0160W0B80 White (W) 78 12 1375 115 350 <28 3000
