CONCEPT O 35

View range presentation
Go to Configurator
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Architectural, Offices, Hotels and residential, Public spaces, Retail, Art and Culture, Education, Health and care
Mounting Type
Surface mounted, Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Extruded aluminium profile
Finishing
Powder-coated
Current Supply Cable Entry Point
Back

Details

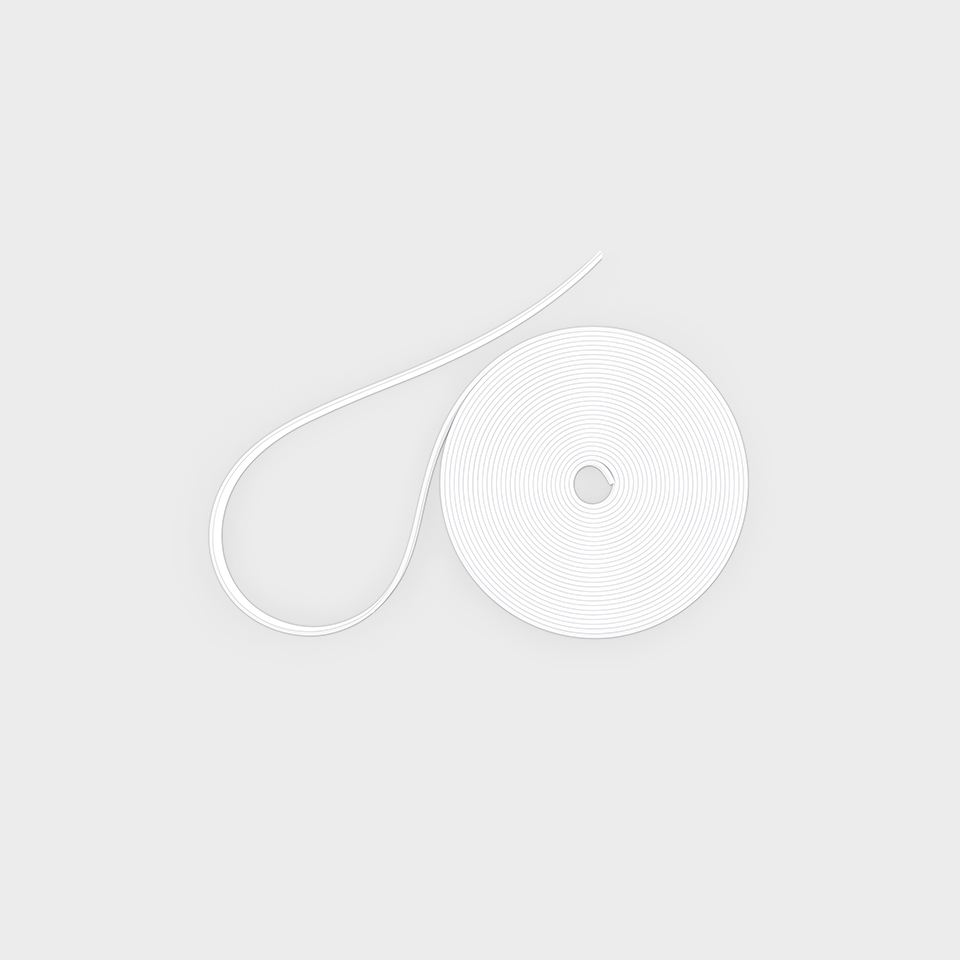

bFLEX diffuser
bFLEX diffuser
Ceiling rose
Ceiling rose

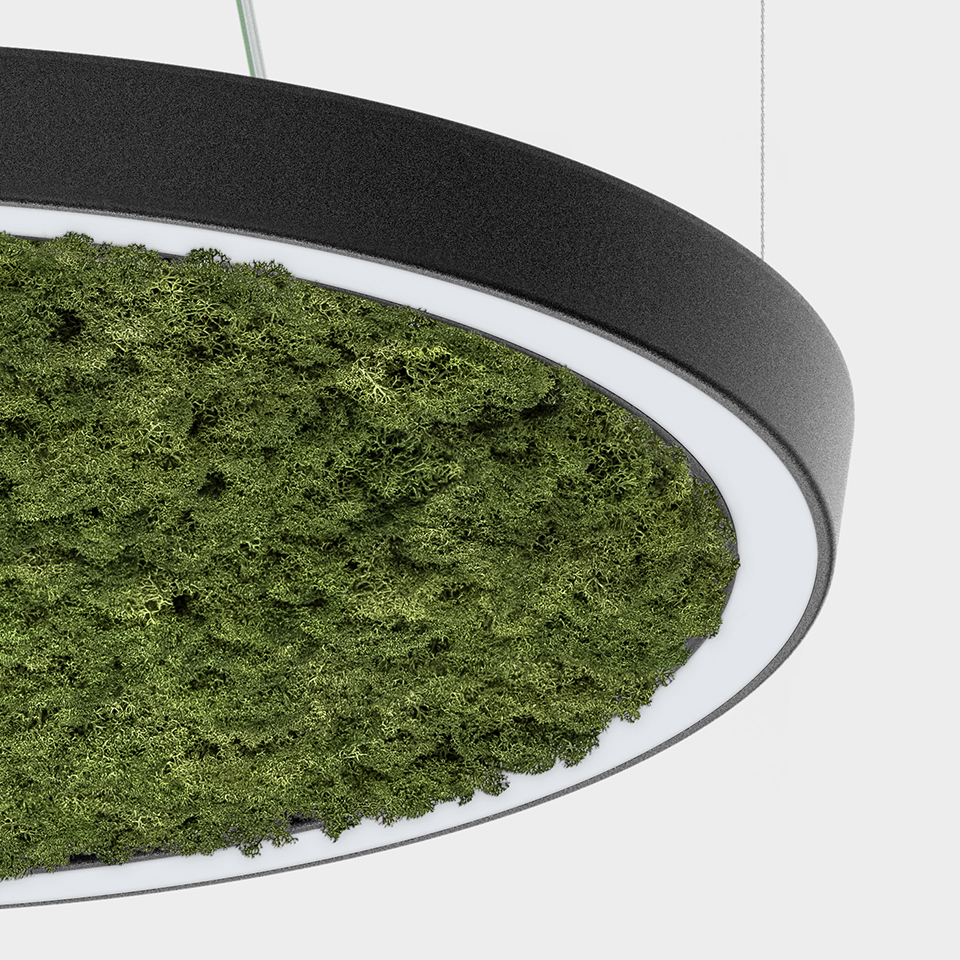

Acoustic moss
Acoustic moss
Acoustic moss (macro)
Acoustic moss (macro)

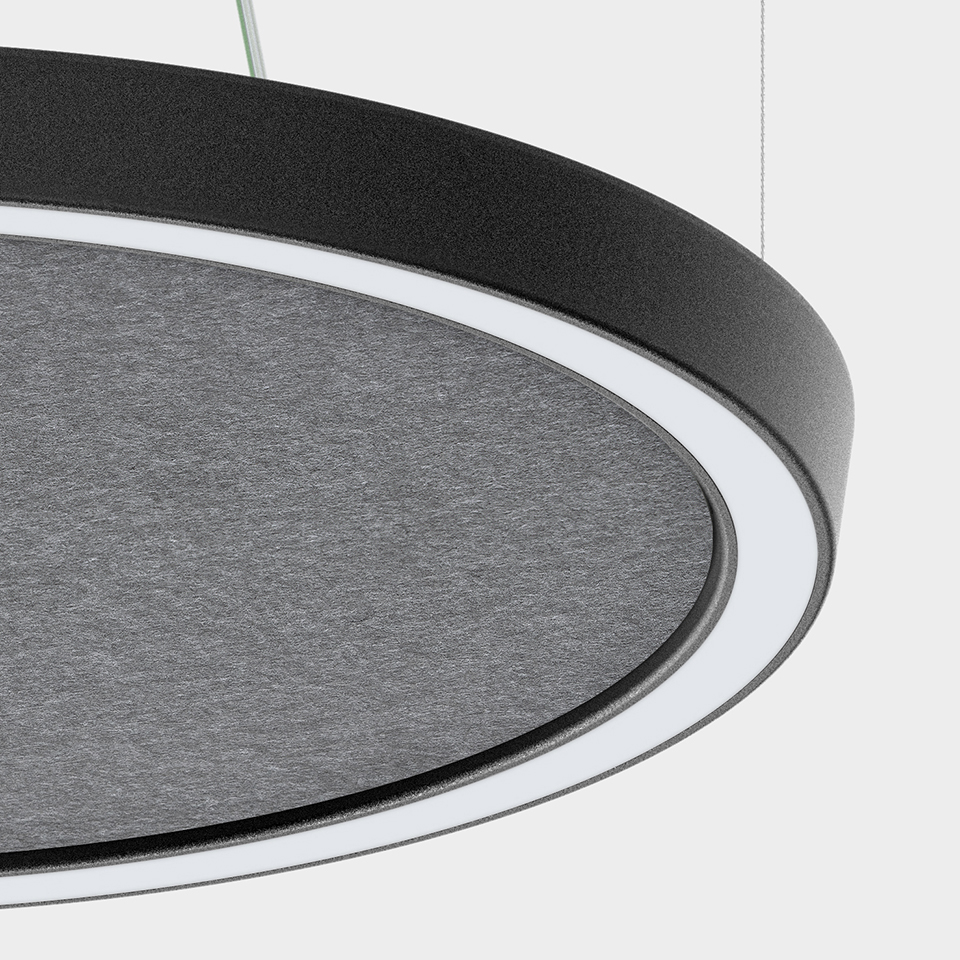

Acoustic panel
Acoustic panel

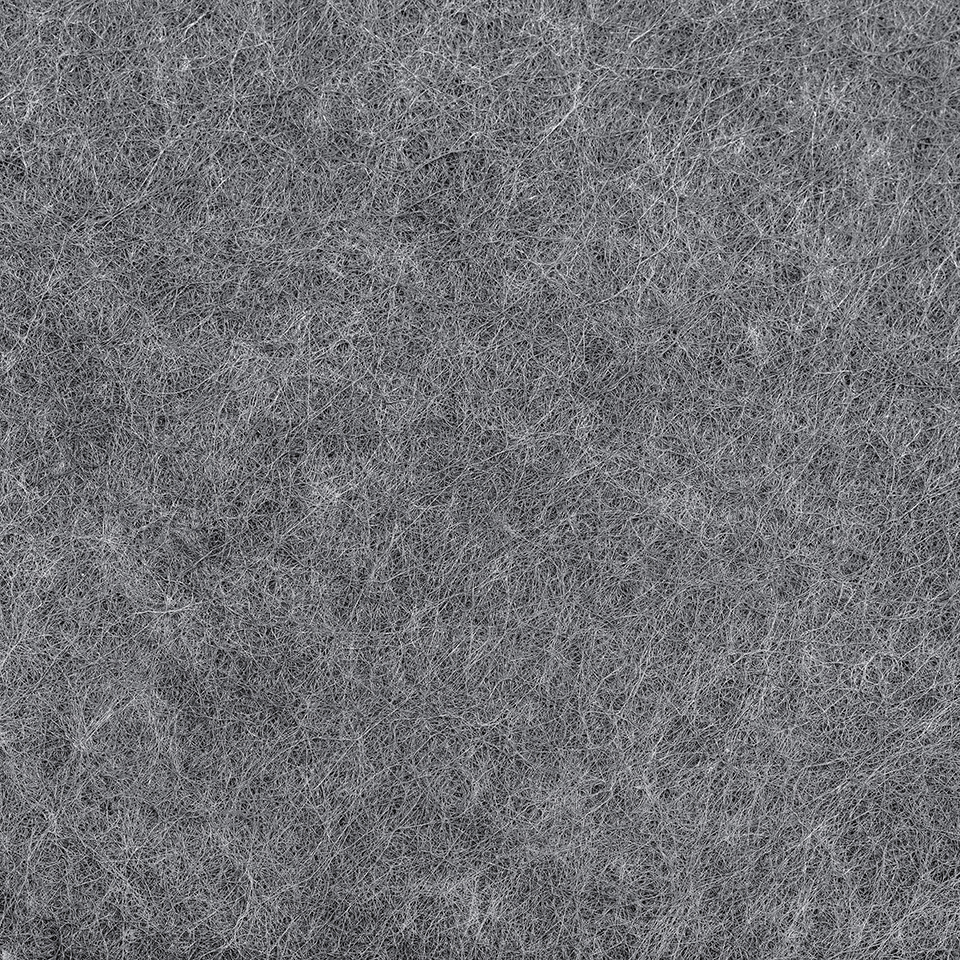

Acoustic panel (macro)
Acoustic panel (macro)

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip

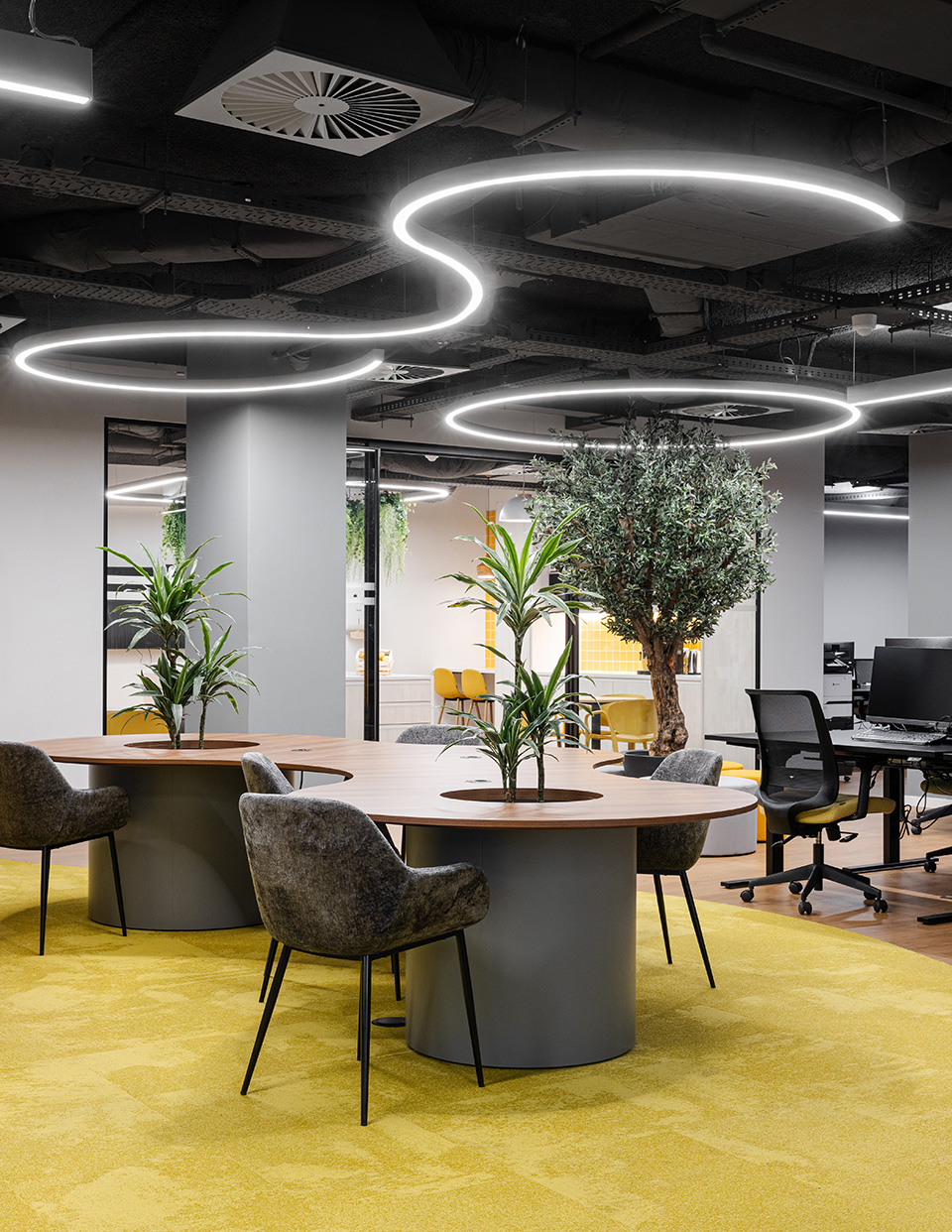

Application Pictures
.zip

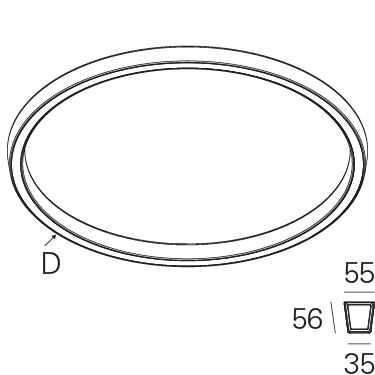

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Product Brochure
.pdf
Catalogue Pages
.pdf

CONCEPT O 35

Results
480 Products

Filter Variants

Results
Filter Variants
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Colour Temperature (CCT)
Dimming
Diameter (mm)
Clear Filters
Filters
Code
Colour W lm Output lm/W CCT (K) Dimming D (mm)
Code
Colour W lm Output lm/W CCT (K) Dimming D (mm)
90539L012E00000 Sahara (0) 36 3296 92 4000 ON/OFF 455
90539L012E00300 Sahara (0) 36 3205 89 3000 ON/OFF 455
90539L012E10000 Mist (1) 36 3296 92 4000 ON/OFF 455
90539L012E10300 Mist (1) 36 3205 89 3000 ON/OFF 455
90539L012E50000 Old Rose (5) 36 3296 92 4000 ON/OFF 455
90539L012E50300 Old Rose (5) 36 3205 89 3000 ON/OFF 455
90539L012E70000 Copper (7) 36 3296 92 4000 ON/OFF 455
90539L012E70300 Copper (7) 36 3205 89 3000 ON/OFF 455
90539L012EB0000 Black (B) 36 3296 92 4000 ON/OFF 455
90539L012EB0300 Black (B) 36 3205 89 3000 ON/OFF 455
90539L012ED0000 Golden eye (D) 36 3296 92 4000 ON/OFF 455
90539L012ED0300 Golden eye (D) 36 3205 89 3000 ON/OFF 455
90539L012EG0000 Grey (G) 36 3296 92 4000 ON/OFF 455
90539L012EG0300 Grey (G) 36 3205 89 3000 ON/OFF 455
90539L012EI0000 Carbon (I) 36 3296 92 4000 ON/OFF 455
90539L012EI0300 Carbon (I) 36 3205 89 3000 ON/OFF 455
90539L012EL0000 Autumn (L) 36 3296 92 4000 ON/OFF 455
90539L012EL0300 Autumn (L) 36 3205 89 3000 ON/OFF 455
90539L012EN0000 Jungle (N) 36 3296 92 4000 ON/OFF 455
90539L012EN0300 Jungle (N) 36 3205 89 3000 ON/OFF 455
90539L012ER0000 Rusty chain (R) 36 3296 92 4000 ON/OFF 455
90539L012ER0300 Rusty chain (R) 36 3205 89 3000 ON/OFF 455
90539L012EW0000 White (W) 36 3296 92 4000 ON/OFF 455
90539L012EW0300 White (W) 36 3205 89 3000 ON/OFF 455
90539L012H00000 Sahara (0) 36 3296 92 4000 DALI 2 455
90539L012H00300 Sahara (0) 36 3205 89 3000 DALI 2 455
90539L012H10000 Mist (1) 36 3296 92 4000 DALI 2 455
90539L012H10300 Mist (1) 36 3205 89 3000 DALI 2 455
90539L012H50000 Old Rose (5) 36 3296 92 4000 DALI 2 455
90539L012H50300 Old Rose (5) 36 3205 89 3000 DALI 2 455
90539L012H70000 Copper (7) 36 3296 92 4000 DALI 2 455
90539L012H70300 Copper (7) 36 3205 89 3000 DALI 2 455
90539L012HB0000 Black (B) 36 3296 92 4000 DALI 2 455
90539L012HB0300 Black (B) 36 3205 89 3000 DALI 2 455
90539L012HD0000 Golden eye (D) 36 3296 92 4000 DALI 2 455
90539L012HD0300 Golden eye (D) 36 3205 89 3000 DALI 2 455
90539L012HG0000 Grey (G) 36 3296 92 4000 DALI 2 455
90539L012HG0300 Grey (G) 36 3205 89 3000 DALI 2 455
90539L012HI0000 Carbon (I) 36 3296 92 4000 DALI 2 455
90539L012HI0300 Carbon (I) 36 3205 89 3000 DALI 2 455
90539L012HL0000 Autumn (L) 36 3296 92 4000 DALI 2 455
90539L012HL0300 Autumn (L) 36 3205 89 3000 DALI 2 455
90539L012HN0000 Jungle (N) 36 3296 92 4000 DALI 2 455
90539L012HN0300 Jungle (N) 36 3205 89 3000 DALI 2 455
90539L012HR0000 Rusty chain (R) 36 3296 92 4000 DALI 2 455
90539L012HR0300 Rusty chain (R) 36 3205 89 3000 DALI 2 455
90539L012HW0000 White (W) 36 3296 92 4000 DALI 2 455
90539L012HW0300 White (W) 36 3205 89 3000 DALI 2 455
90539L016E00000 Sahara (0) 68 6602 97 4000 ON/OFF 777
90539L016E00300 Sahara (0) 68 6411 94 3000 ON/OFF 777
90539L016E10000 Mist (1) 68 6602 97 4000 ON/OFF 777
90539L016E10300 Mist (1) 68 6411 94 3000 ON/OFF 777
90539L016E50000 Old Rose (5) 68 6602 97 4000 ON/OFF 777
90539L016E50300 Old Rose (5) 68 6411 94 3000 ON/OFF 777
90539L016E70000 Copper (7) 68 6602 97 4000 ON/OFF 777
90539L016E70300 Copper (7) 68 6411 94 3000 ON/OFF 777
90539L016EB0000 Black (B) 68 6602 97 4000 ON/OFF 777
90539L016EB0300 Black (B) 68 6411 94 3000 ON/OFF 777
90539L016ED0000 Golden eye (D) 68 6602 97 4000 ON/OFF 777
90539L016ED0300 Golden eye (D) 68 6411 94 3000 ON/OFF 777
90539L016EG0000 Grey (G) 68 6602 97 4000 ON/OFF 777
90539L016EG0300 Grey (G) 68 6411 94 3000 ON/OFF 777
90539L016EI0000 Carbon (I) 68 6602 97 4000 ON/OFF 777
90539L016EI0300 Carbon (I) 68 6411 94 3000 ON/OFF 777
90539L016EL0000 Autumn (L) 68 6602 97 4000 ON/OFF 777
90539L016EL0300 Autumn (L) 68 6411 94 3000 ON/OFF 777
90539L016EN0000 Jungle (N) 68 6602 97 4000 ON/OFF 777
90539L016EN0300 Jungle (N) 68 6411 94 3000 ON/OFF 777
90539L016ER0000 Rusty chain (R) 68 6602 97 4000 ON/OFF 777
90539L016ER0300 Rusty chain (R) 68 6411 94 3000 ON/OFF 777
90539L016EW0000 White (W) 68 6602 97 4000 ON/OFF 777
90539L016EW0300 White (W) 68 6411 94 3000 ON/OFF 777
90539L016H00000 Sahara (0) 68 6602 97 4000 DALI 2 777
90539L016H00300 Sahara (0) 68 6411 94 3000 DALI 2 777
90539L016H10000 Mist (1) 68 6602 97 4000 DALI 2 777
90539L016H10300 Mist (1) 68 6411 94 3000 DALI 2 777
90539L016H50000 Old Rose (5) 68 6602 97 4000 DALI 2 777
90539L016H50300 Old Rose (5) 68 6411 94 3000 DALI 2 777
90539L016H70000 Copper (7) 68 6602 97 4000 DALI 2 777
90539L016H70300 Copper (7) 68 6411 94 3000 DALI 2 777
90539L016HB0000 Black (B) 68 6602 97 4000 DALI 2 777
90539L016HB0300 Black (B) 68 6411 94 3000 DALI 2 777
90539L016HD0000 Golden eye (D) 68 6602 97 4000 DALI 2 777
90539L016HD0300 Golden eye (D) 68 6411 94 3000 DALI 2 777
90539L016HG0000 Grey (G) 68 6602 97 4000 DALI 2 777
90539L016HG0300 Grey (G) 68 6411 94 3000 DALI 2 777
90539L016HI0000 Carbon (I) 68 6602 97 4000 DALI 2 777
90539L016HI0300 Carbon (I) 68 6411 94 3000 DALI 2 777
90539L016HL0000 Autumn (L) 68 6602 97 4000 DALI 2 777
90539L016HL0300 Autumn (L) 68 6411 94 3000 DALI 2 777
90539L016HN0000 Jungle (N) 68 6602 97 4000 DALI 2 777
90539L016HN0300 Jungle (N) 68 6411 94 3000 DALI 2 777
90539L016HR0000 Rusty chain (R) 68 6602 97 4000 DALI 2 777
90539L016HR0300 Rusty chain (R) 68 6411 94 3000 DALI 2 777
90539L016HW0000 White (W) 68 6602 97 4000 DALI 2 777
90539L016HW0300 White (W) 68 6411 94 3000 DALI 2 777
90539L024E00000 Sahara (0) 97 9904 102 4000 ON/OFF 1136
90539L024E00300 Sahara (0) 97 9616 99 3000 ON/OFF 1136
90539L024E10000 Mist (1) 97 9904 102 4000 ON/OFF 1136
90539L024E10300 Mist (1) 97 9616 99 3000 ON/OFF 1136
90539L024E50000 Old Rose (5) 97 9904 102 4000 ON/OFF 1136
90539L024E50300 Old Rose (5) 97 9616 99 3000 ON/OFF 1136
90539L024E70000 Copper (7) 97 9904 102 4000 ON/OFF 1136
90539L024E70300 Copper (7) 97 9616 99 3000 ON/OFF 1136
90539L024EB0000 Black (B) 97 9904 102 4000 ON/OFF 1136
90539L024EB0300 Black (B) 97 9616 99 3000 ON/OFF 1136
90539L024ED0000 Golden eye (D) 97 9904 102 4000 ON/OFF 1136
90539L024ED0300 Golden eye (D) 97 9616 99 3000 ON/OFF 1136
90539L024EG0000 Grey (G) 97 9904 102 4000 ON/OFF 1136
90539L024EG0300 Grey (G) 97 9616 99 3000 ON/OFF 1136
90539L024EI0000 Carbon (I) 97 9904 102 4000 ON/OFF 1136
90539L024EI0300 Carbon (I) 97 9616 99 3000 ON/OFF 1136
90539L024EL0000 Autumn (L) 97 9904 102 4000 ON/OFF 1136
90539L024EL0300 Autumn (L) 97 9616 99 3000 ON/OFF 1136
90539L024EN0000 Jungle (N) 97 9904 102 4000 ON/OFF 1136
90539L024EN0300 Jungle (N) 97 9616 99 3000 ON/OFF 1136
90539L024ER0000 Rusty chain (R) 97 9904 102 4000 ON/OFF 1136
90539L024ER0300 Rusty chain (R) 97 9616 99 3000 ON/OFF 1136
90539L024EW0000 White (W) 97 9904 102 4000 ON/OFF 1136
90539L024EW0300 White (W) 97 9616 99 3000 ON/OFF 1136
90539L024H00000 Sahara (0) 97 9904 102 4000 DALI 2 1136
90539L024H00300 Sahara (0) 97 9616 99 3000 DALI 2 1136
90539L024H10000 Mist (1) 97 9904 102 4000 DALI 2 1136
90539L024H10300 Mist (1) 97 9616 99 3000 DALI 2 1136
90539L024H50000 Old Rose (5) 97 9904 102 4000 DALI 2 1136
90539L024H50300 Old Rose (5) 97 9616 99 3000 DALI 2 1136
90539L024H70000 Copper (7) 97 9904 102 4000 DALI 2 1136
90539L024H70300 Copper (7) 97 9616 99 3000 DALI 2 1136
90539L024HB0000 Black (B) 97 9904 102 4000 DALI 2 1136
90539L024HB0300 Black (B) 97 9616 99 3000 DALI 2 1136
90539L024HD0000 Golden eye (D) 97 9904 102 4000 DALI 2 1136
90539L024HD0300 Golden eye (D) 97 9616 99 3000 DALI 2 1136
90539L024HG0000 Grey (G) 97 9904 102 4000 DALI 2 1136
90539L024HG0300 Grey (G) 97 9616 99 3000 DALI 2 1136
90539L024HI0000 Carbon (I) 97 9904 102 4000 DALI 2 1136
90539L024HI0300 Carbon (I) 97 9616 99 3000 DALI 2 1136
90539L024HL0000 Autumn (L) 97 9904 102 4000 DALI 2 1136
90539L024HL0300 Autumn (L) 97 9616 99 3000 DALI 2 1136
90539L024HN0000 Jungle (N) 97 9904 102 4000 DALI 2 1136
90539L024HN0300 Jungle (N) 97 9616 99 3000 DALI 2 1136
90539L024HR0000 Rusty chain (R) 97 9904 102 4000 DALI 2 1136
90539L024HR0300 Rusty chain (R) 97 9616 99 3000 DALI 2 1136
90539L024HW0000 White (W) 97 9904 102 4000 DALI 2 1136
90539L024HW0300 White (W) 97 9616 99 3000 DALI 2 1136
90539L032E00000 Sahara (0) 136 13205 97 4000 ON/OFF 1494
90539L032E00300 Sahara (0) 136 12822 94 3000 ON/OFF 1494
90539L032E10000 Mist (1) 136 13205 97 4000 ON/OFF 1494
90539L032E10300 Mist (1) 136 12822 94 3000 ON/OFF 1494
90539L032E50000 Old Rose (5) 136 13205 97 4000 ON/OFF 1494
90539L032E50300 Old Rose (5) 136 12822 94 3000 ON/OFF 1494
