CONCEPT S 65

View range presentation
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Architectural, Offices, Hotels and residential, Public spaces, Retail, Art and Culture, Education, Health and care
Mounting Type
Surface mounted, Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Extruded aluminium profile
Finishing
Powder-coated
Current Supply Cable Entry Point
Back

Details

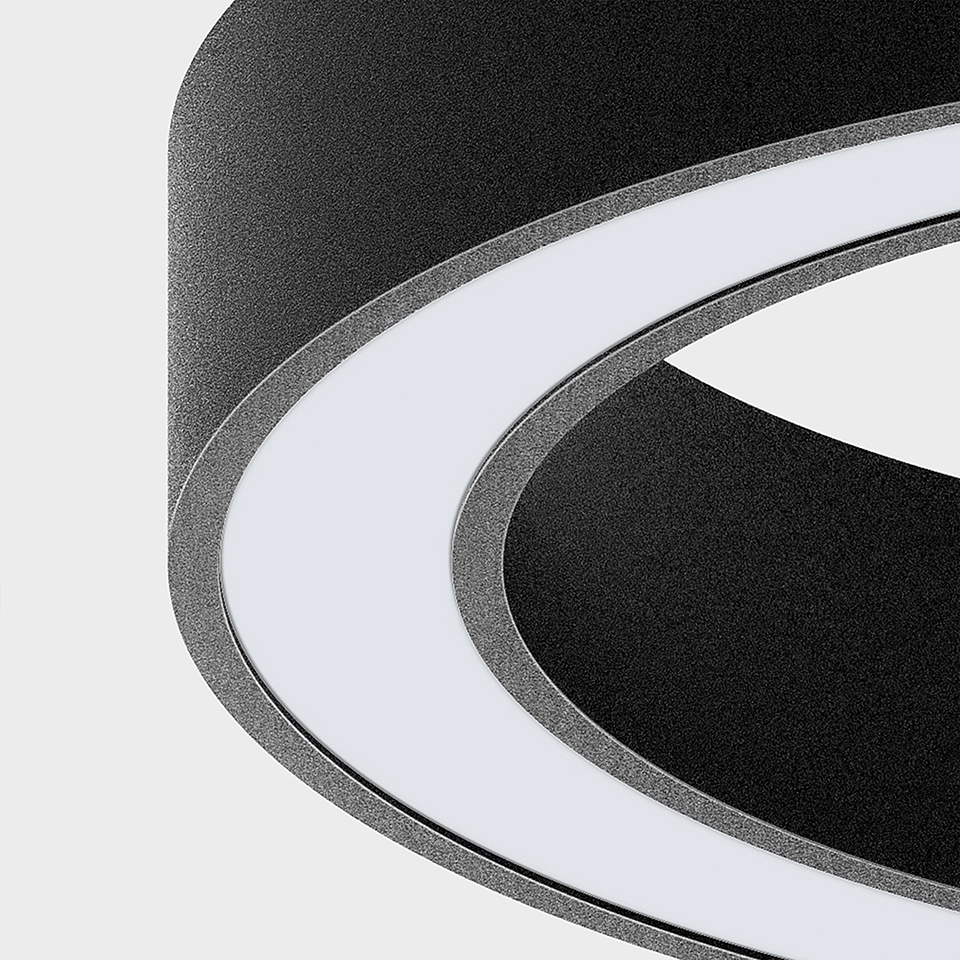

LIGHT+ diffuser
LIGHT+ diffuser
Ceiling rose
Ceiling rose

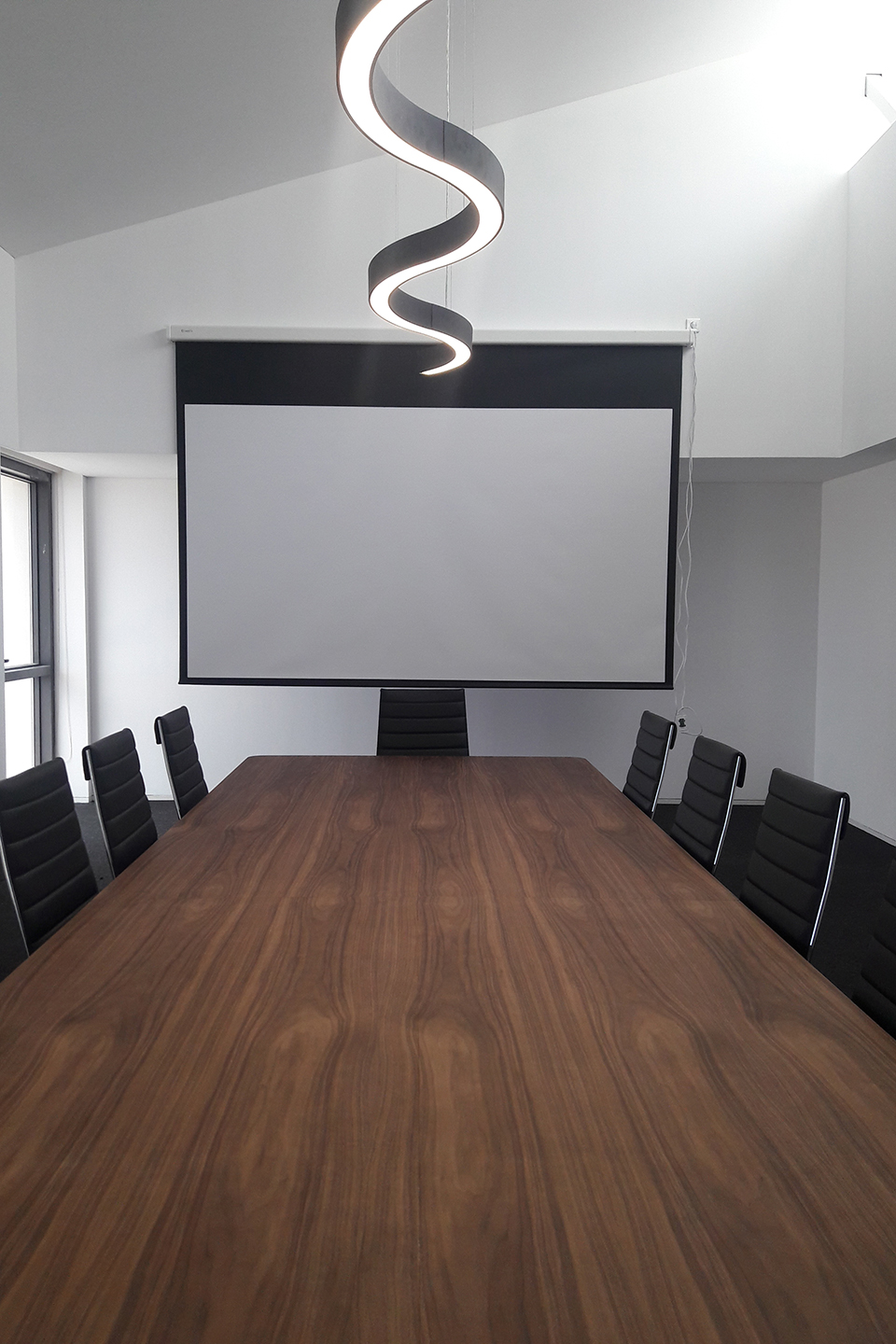

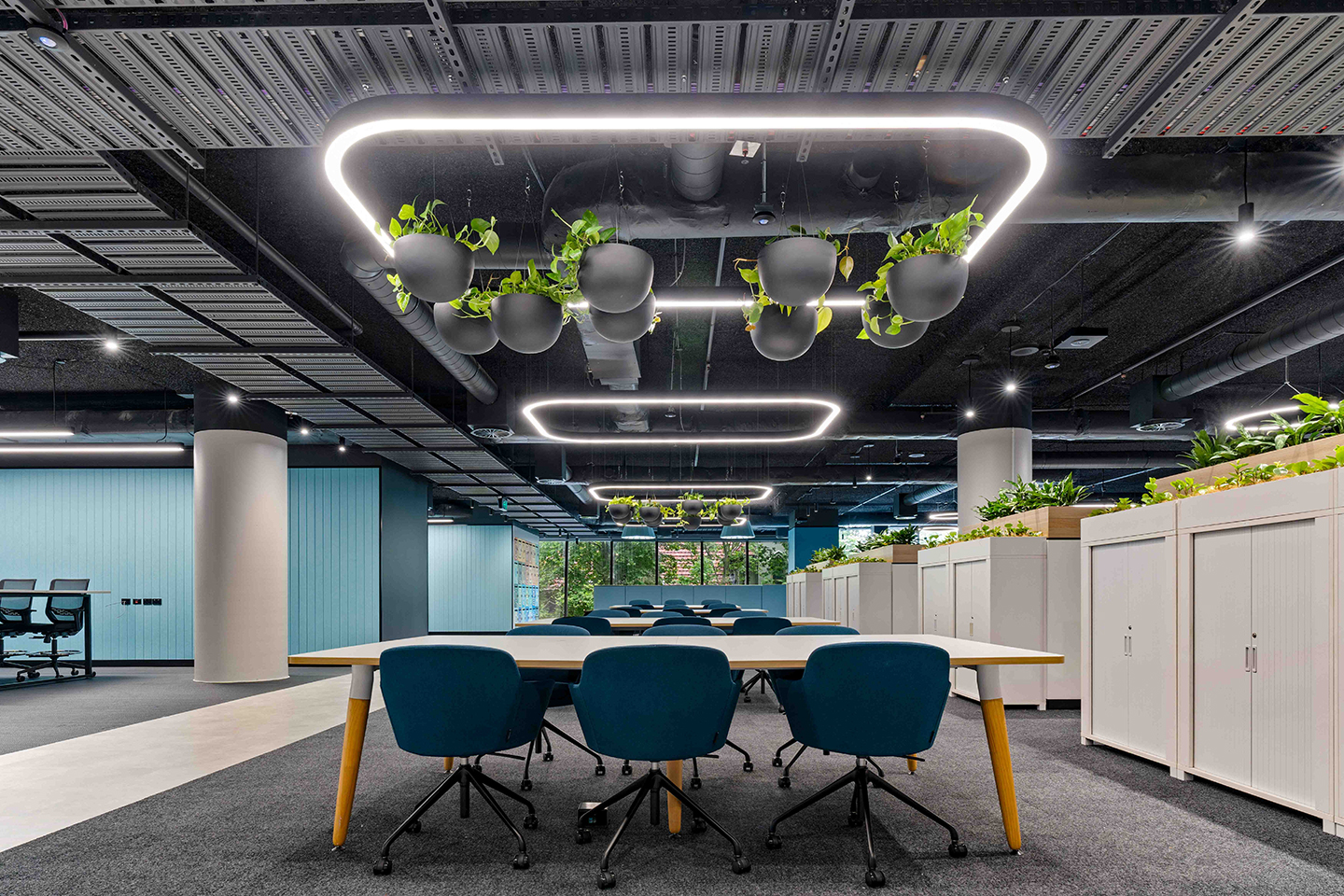

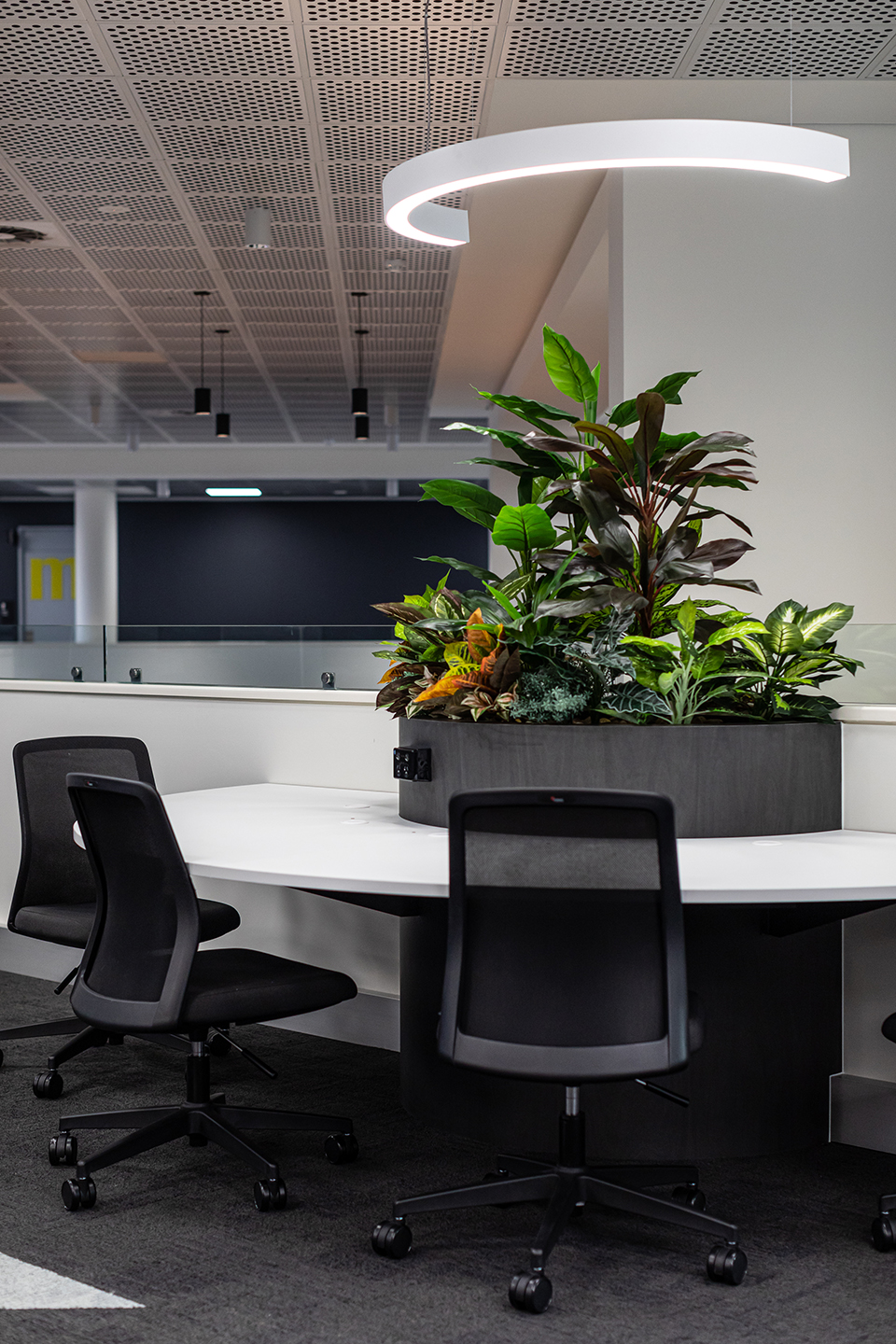

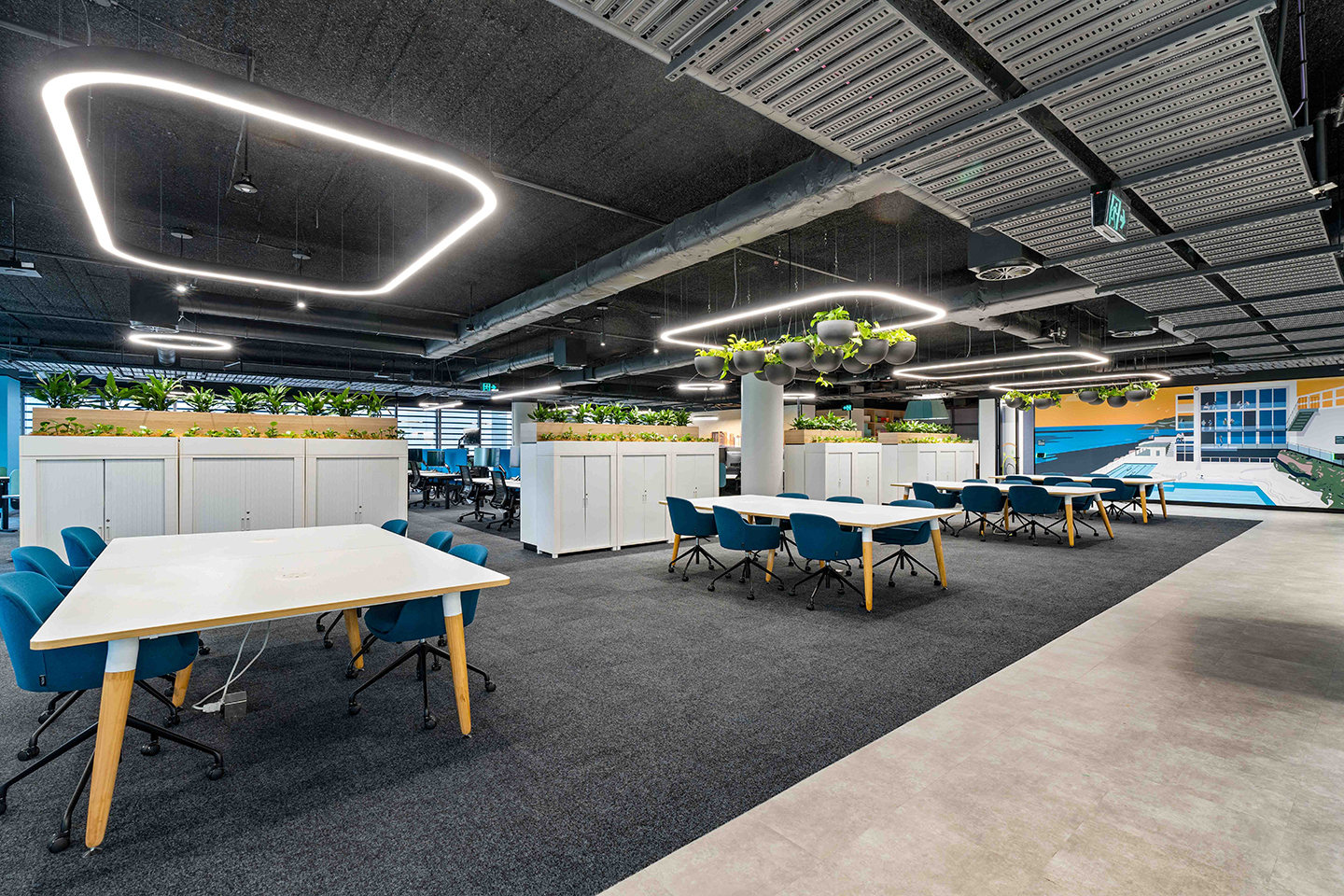

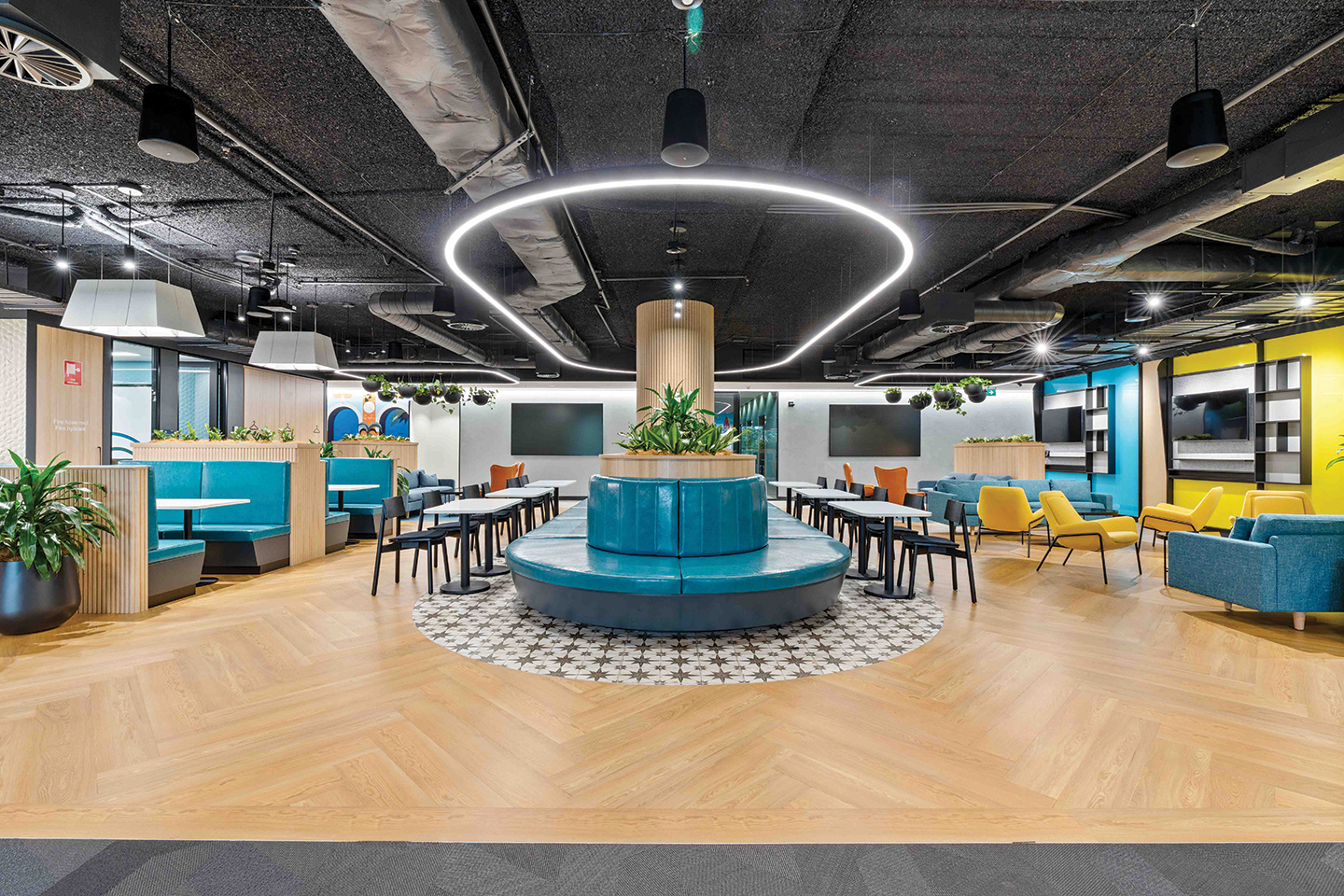

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip

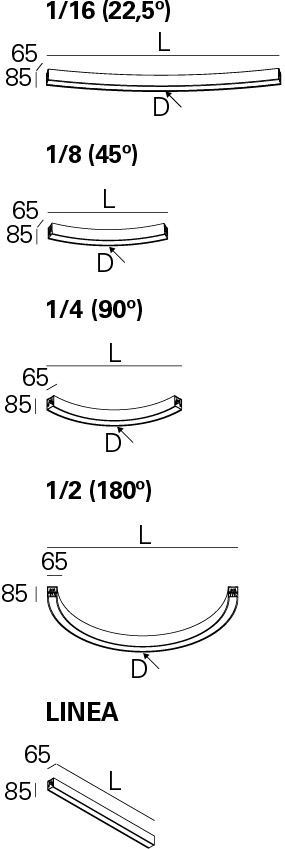

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.zip
Catalogue Pages
.pdf

CONCEPT S 65

Results
1248 Products

Filter Variants

Results
Filter Variants
Type
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Colour Temperature (CCT)
Dimming
Length (mm)
Diameter (mm)
Clear Filters
Filters
Code
Type Colour W lm Output lm/W CCT (K) Dimming L (mm) D (mm)
Code
Type Colour W lm Output lm/W CCT (K) Dimming L (mm) D (mm)
90781L010E00000 Curved luminaire 1/16 22,5° Sahara (0) 27 2776 103 4000 ON/OFF 1531 7850
90781L010E00300 Curved luminaire 1/16 22,5° Sahara (0) 27 2651 98 3000 ON/OFF 1531 7850
90781L010E10000 Curved luminaire 1/16 22,5° Mist (1) 27 2776 103 4000 ON/OFF 1531 7850
90781L010E10300 Curved luminaire 1/16 22,5° Mist (1) 27 2651 98 3000 ON/OFF 1531 7850
90781L010E50000 Curved luminaire 1/16 22,5° Old Rose (5) 27 2776 103 4000 ON/OFF 1531 7850
90781L010E50300 Curved luminaire 1/16 22,5° Old Rose (5) 27 2651 98 3000 ON/OFF 1531 7850
90781L010E70000 Curved luminaire 1/16 22,5° Copper (7) 27 2776 103 4000 ON/OFF 1531 7850
90781L010E70300 Curved luminaire 1/16 22,5° Copper (7) 27 2651 98 3000 ON/OFF 1531 7850
90781L010EB0000 Curved luminaire 1/16 22,5° Black (B) 27 2776 103 4000 ON/OFF 1531 7850
90781L010EB0300 Curved luminaire 1/16 22,5° Black (B) 27 2651 98 3000 ON/OFF 1531 7850
90781L010ED0000 Curved luminaire 1/16 22,5° Golden eye (D) 27 2776 103 4000 ON/OFF 1531 7850
90781L010ED0300 Curved luminaire 1/16 22,5° Golden eye (D) 27 2651 98 3000 ON/OFF 1531 7850
90781L010EG0000 Curved luminaire 1/16 22,5° Grey (G) 27 2776 103 4000 ON/OFF 1531 7850
90781L010EG0300 Curved luminaire 1/16 22,5° Grey (G) 27 2651 98 3000 ON/OFF 1531 7850
90781L010EI0000 Curved luminaire 1/16 22,5° Carbon (I) 27 2776 103 4000 ON/OFF 1531 7850
90781L010EI0300 Curved luminaire 1/16 22,5° Carbon (I) 27 2651 98 3000 ON/OFF 1531 7850
90781L010EL0000 Curved luminaire 1/16 22,5° Autumn (L) 27 2776 103 4000 ON/OFF 1531 7850
90781L010EL0300 Curved luminaire 1/16 22,5° Autumn (L) 27 2651 98 3000 ON/OFF 1531 7850
90781L010EN0000 Curved luminaire 1/16 22,5° Jungle (N) 27 2776 103 4000 ON/OFF 1531 7850
90781L010EN0300 Curved luminaire 1/16 22,5° Jungle (N) 27 2651 98 3000 ON/OFF 1531 7850
90781L010ER0000 Curved luminaire 1/16 22,5° Rusty chain (R) 27 2776 103 4000 ON/OFF 1531 7850
90781L010ER0300 Curved luminaire 1/16 22,5° Rusty chain (R) 27 2651 98 3000 ON/OFF 1531 7850
90781L010EW0000 Curved luminaire 1/16 22,5° White (W) 27 2776 103 4000 ON/OFF 1531 7850
90781L010EW0300 Curved luminaire 1/16 22,5° White (W) 27 2651 98 3000 ON/OFF 1531 7850
90781L010H00000 Curved luminaire 1/16 22,5° Sahara (0) 29 2776 96 4000 DALI 2 1531 7850
90781L010H00300 Curved luminaire 1/16 22,5° Sahara (0) 29 2651 91 3000 DALI 2 1531 7850
90781L010H10000 Curved luminaire 1/16 22,5° Mist (1) 29 2776 96 4000 DALI 2 1531 7850
90781L010H10300 Curved luminaire 1/16 22,5° Mist (1) 29 2651 91 3000 DALI 2 1531 7850
90781L010H50000 Curved luminaire 1/16 22,5° Old Rose (5) 29 2776 96 4000 DALI 2 1531 7850
90781L010H50300 Curved luminaire 1/16 22,5° Old Rose (5) 29 2651 91 3000 DALI 2 1531 7850
90781L010H70000 Curved luminaire 1/16 22,5° Copper (7) 29 2776 96 4000 DALI 2 1531 7850
90781L010H70300 Curved luminaire 1/16 22,5° Copper (7) 29 2651 91 3000 DALI 2 1531 7850
90781L010HB0000 Curved luminaire 1/16 22,5° Black (B) 29 2776 96 4000 DALI 2 1531 7850
90781L010HB0300 Curved luminaire 1/16 22,5° Black (B) 29 2651 91 3000 DALI 2 1531 7850
90781L010HD0000 Curved luminaire 1/16 22,5° Golden eye (D) 29 2776 96 4000 DALI 2 1531 7850
90781L010HD0300 Curved luminaire 1/16 22,5° Golden eye (D) 29 2651 91 3000 DALI 2 1531 7850
90781L010HG0000 Curved luminaire 1/16 22,5° Grey (G) 29 2776 96 4000 DALI 2 1531 7850
90781L010HG0300 Curved luminaire 1/16 22,5° Grey (G) 29 2651 91 3000 DALI 2 1531 7850
90781L010HI0000 Curved luminaire 1/16 22,5° Carbon (I) 29 2776 96 4000 DALI 2 1531 7850
90781L010HI0300 Curved luminaire 1/16 22,5° Carbon (I) 29 2651 91 3000 DALI 2 1531 7850
90781L010HL0000 Curved luminaire 1/16 22,5° Autumn (L) 29 2776 96 4000 DALI 2 1531 7850
90781L010HL0300 Curved luminaire 1/16 22,5° Autumn (L) 29 2651 91 3000 DALI 2 1531 7850
90781L010HN0000 Curved luminaire 1/16 22,5° Jungle (N) 29 2776 96 4000 DALI 2 1531 7850
90781L010HN0300 Curved luminaire 1/16 22,5° Jungle (N) 29 2651 91 3000 DALI 2 1531 7850
90781L010HR0000 Curved luminaire 1/16 22,5° Rusty chain (R) 29 2776 96 4000 DALI 2 1531 7850
90781L010HR0300 Curved luminaire 1/16 22,5° Rusty chain (R) 29 2651 91 3000 DALI 2 1531 7850
90781L010HW0000 Curved luminaire 1/16 22,5° White (W) 29 2776 96 4000 DALI 2 1531 7850
90781L010HW0300 Curved luminaire 1/16 22,5° White (W) 29 2651 91 3000 DALI 2 1531 7850
90782L005E00000 Curved luminaire 1/8 45° Sahara (0) 15 1388 93 4000 ON/OFF 784 2050
90782L005E00300 Curved luminaire 1/8 45° Sahara (0) 15 1325 88 3000 ON/OFF 784 2050
90782L005E10000 Curved luminaire 1/8 45° Mist (1) 15 1388 93 4000 ON/OFF 784 2050
90782L005E10300 Curved luminaire 1/8 45° Mist (1) 15 1325 88 3000 ON/OFF 784 2050
90782L005E50000 Curved luminaire 1/8 45° Old Rose (5) 15 1388 93 4000 ON/OFF 784 2050
90782L005E50300 Curved luminaire 1/8 45° Old Rose (5) 15 1325 88 3000 ON/OFF 784 2050
90782L005E70000 Curved luminaire 1/8 45° Copper (7) 15 1388 93 4000 ON/OFF 784 2050
90782L005E70300 Curved luminaire 1/8 45° Copper (7) 15 1325 88 3000 ON/OFF 784 2050
90782L005EB0000 Curved luminaire 1/8 45° Black (B) 15 1388 93 4000 ON/OFF 784 2050
90782L005EB0300 Curved luminaire 1/8 45° Black (B) 15 1325 88 3000 ON/OFF 784 2050
90782L005ED0000 Curved luminaire 1/8 45° Golden eye (D) 15 1388 93 4000 ON/OFF 784 2050
90782L005ED0300 Curved luminaire 1/8 45° Golden eye (D) 15 1325 88 3000 ON/OFF 784 2050
90782L005EG0000 Curved luminaire 1/8 45° Grey (G) 15 1388 93 4000 ON/OFF 784 2050
90782L005EG0300 Curved luminaire 1/8 45° Grey (G) 15 1325 88 3000 ON/OFF 784 2050
90782L005EI0000 Curved luminaire 1/8 45° Carbon (I) 15 1388 93 4000 ON/OFF 784 2050
90782L005EI0300 Curved luminaire 1/8 45° Carbon (I) 15 1325 88 3000 ON/OFF 784 2050
90782L005EL0000 Curved luminaire 1/8 45° Autumn (L) 15 1388 93 4000 ON/OFF 784 2050
90782L005EL0300 Curved luminaire 1/8 45° Autumn (L) 15 1325 88 3000 ON/OFF 784 2050
90782L005EN0000 Curved luminaire 1/8 45° Jungle (N) 15 1388 93 4000 ON/OFF 784 2050
90782L005EN0300 Curved luminaire 1/8 45° Jungle (N) 15 1325 88 3000 ON/OFF 784 2050
90782L005ER0000 Curved luminaire 1/8 45° Rusty chain (R) 15 1388 93 4000 ON/OFF 784 2050
90782L005ER0300 Curved luminaire 1/8 45° Rusty chain (R) 15 1325 88 3000 ON/OFF 784 2050
90782L005EW0000 Curved luminaire 1/8 45° White (W) 15 1388 93 4000 ON/OFF 784 2050
90782L005EW0300 Curved luminaire 1/8 45° White (W) 15 1325 88 3000 ON/OFF 784 2050
90782L005H00000 Curved luminaire 1/8 45° Sahara (0) 29 1388 48 4000 DALI 2 784 2050
90782L005H00300 Curved luminaire 1/8 45° Sahara (0) 29 1325 46 3000 DALI 2 784 2050
90782L005H10000 Curved luminaire 1/8 45° Mist (1) 29 1388 48 4000 DALI 2 784 2050
90782L005H10300 Curved luminaire 1/8 45° Mist (1) 29 1325 46 3000 DALI 2 784 2050
90782L005H50000 Curved luminaire 1/8 45° Old Rose (5) 29 1388 48 4000 DALI 2 784 2050
90782L005H50300 Curved luminaire 1/8 45° Old Rose (5) 29 1325 46 3000 DALI 2 784 2050
90782L005H70000 Curved luminaire 1/8 45° Copper (7) 29 1388 48 4000 DALI 2 784 2050
90782L005H70300 Curved luminaire 1/8 45° Copper (7) 29 1325 46 3000 DALI 2 784 2050
90782L005HB0000 Curved luminaire 1/8 45° Black (B) 29 1388 48 4000 DALI 2 784 2050
90782L005HB0300 Curved luminaire 1/8 45° Black (B) 29 1325 46 3000 DALI 2 784 2050
90782L005HD0000 Curved luminaire 1/8 45° Golden eye (D) 29 1388 48 4000 DALI 2 784 2050
90782L005HD0300 Curved luminaire 1/8 45° Golden eye (D) 29 1325 46 3000 DALI 2 784 2050
90782L005HG0000 Curved luminaire 1/8 45° Grey (G) 29 1388 48 4000 DALI 2 784 2050
90782L005HG0300 Curved luminaire 1/8 45° Grey (G) 29 1325 46 3000 DALI 2 784 2050
90782L005HI0000 Curved luminaire 1/8 45° Carbon (I) 29 1388 48 4000 DALI 2 784 2050
90782L005HI0300 Curved luminaire 1/8 45° Carbon (I) 29 1325 46 3000 DALI 2 784 2050
90782L005HL0000 Curved luminaire 1/8 45° Autumn (L) 29 1388 48 4000 DALI 2 784 2050
90782L005HL0300 Curved luminaire 1/8 45° Autumn (L) 29 1325 46 3000 DALI 2 784 2050
90782L005HN0000 Curved luminaire 1/8 45° Jungle (N) 29 1388 48 4000 DALI 2 784 2050
90782L005HN0300 Curved luminaire 1/8 45° Jungle (N) 29 1325 46 3000 DALI 2 784 2050
90782L005HR0000 Curved luminaire 1/8 45° Rusty chain (R) 29 1388 48 4000 DALI 2 784 2050
90782L005HR0300 Curved luminaire 1/8 45° Rusty chain (R) 29 1325 46 3000 DALI 2 784 2050
90782L005HW0000 Curved luminaire 1/8 45° White (W) 29 1388 48 4000 DALI 2 784 2050
90782L005HW0300 Curved luminaire 1/8 45° White (W) 29 1325 46 3000 DALI 2 784 2050
90782L006E00000 Curved luminaire 1/8 45° Sahara (0) 18 1666 93 4000 ON/OFF 937 2450
90782L006E00300 Curved luminaire 1/8 45° Sahara (0) 18 1590 88 3000 ON/OFF 937 2450
90782L006E10000 Curved luminaire 1/8 45° Mist (1) 18 1666 93 4000 ON/OFF 937 2450
90782L006E10300 Curved luminaire 1/8 45° Mist (1) 18 1590 88 3000 ON/OFF 937 2450
90782L006E50000 Curved luminaire 1/8 45° Old Rose (5) 18 1666 93 4000 ON/OFF 937 2450
90782L006E50300 Curved luminaire 1/8 45° Old Rose (5) 18 1590 88 3000 ON/OFF 937 2450
90782L006E70000 Curved luminaire 1/8 45° Copper (7) 18 1666 93 4000 ON/OFF 937 2450
90782L006E70300 Curved luminaire 1/8 45° Copper (7) 18 1590 88 3000 ON/OFF 937 2450
90782L006EB0000 Curved luminaire 1/8 45° Black (B) 18 1666 93 4000 ON/OFF 937 2450
90782L006EB0300 Curved luminaire 1/8 45° Black (B) 18 1590 88 3000 ON/OFF 937 2450
90782L006ED0000 Curved luminaire 1/8 45° Golden eye (D) 18 1666 93 4000 ON/OFF 937 2450
90782L006ED0300 Curved luminaire 1/8 45° Golden eye (D) 18 1590 88 3000 ON/OFF 937 2450
90782L006EG0000 Curved luminaire 1/8 45° Grey (G) 18 1666 93 4000 ON/OFF 937 2450
90782L006EG0300 Curved luminaire 1/8 45° Grey (G) 18 1590 88 3000 ON/OFF 937 2450
90782L006EI0000 Curved luminaire 1/8 45° Carbon (I) 18 1666 93 4000 ON/OFF 937 2450
90782L006EI0300 Curved luminaire 1/8 45° Carbon (I) 18 1590 88 3000 ON/OFF 937 2450
90782L006EL0000 Curved luminaire 1/8 45° Autumn (L) 18 1666 93 4000 ON/OFF 937 2450
90782L006EL0300 Curved luminaire 1/8 45° Autumn (L) 18 1590 88 3000 ON/OFF 937 2450
90782L006EN0000 Curved luminaire 1/8 45° Jungle (N) 18 1666 93 4000 ON/OFF 937 2450
90782L006EN0300 Curved luminaire 1/8 45° Jungle (N) 18 1590 88 3000 ON/OFF 937 2450
90782L006ER0000 Curved luminaire 1/8 45° Rusty chain (R) 18 1666 93 4000 ON/OFF 937 2450
90782L006ER0300 Curved luminaire 1/8 45° Rusty chain (R) 18 1590 88 3000 ON/OFF 937 2450
90782L006EW0000 Curved luminaire 1/8 45° White (W) 18 1666 93 4000 ON/OFF 937 2450
90782L006EW0300 Curved luminaire 1/8 45° White (W) 18 1590 88 3000 ON/OFF 937 2450
90782L006H00000 Curved luminaire 1/8 45° Sahara (0) 39 1666 43 4000 DALI 2 937 2450
90782L006H00300 Curved luminaire 1/8 45° Sahara (0) 39 1590 41 3000 DALI 2 937 2450
90782L006H10000 Curved luminaire 1/8 45° Mist (1) 39 1666 43 4000 DALI 2 937 2450
90782L006H10300 Curved luminaire 1/8 45° Mist (1) 39 1590 41 3000 DALI 2 937 2450
90782L006H50000 Curved luminaire 1/8 45° Old Rose (5) 39 1666 43 4000 DALI 2 937 2450
90782L006H50300 Curved luminaire 1/8 45° Old Rose (5) 39 1590 41 3000 DALI 2 937 2450
90782L006H70000 Curved luminaire 1/8 45° Copper (7) 39 1666 43 4000 DALI 2 937 2450
90782L006H70300 Curved luminaire 1/8 45° Copper (7) 39 1590 41 3000 DALI 2 937 2450
90782L006HB0000 Curved luminaire 1/8 45° Black (B) 39 1666 43 4000 DALI 2 937 2450
90782L006HB0300 Curved luminaire 1/8 45° Black (B) 39 1590 41 3000 DALI 2 937 2450
90782L006HD0000 Curved luminaire 1/8 45° Golden eye (D) 39 1666 43 4000 DALI 2 937 2450
90782L006HD0300 Curved luminaire 1/8 45° Golden eye (D) 39 1590 41 3000 DALI 2 937 2450
90782L006HG0000 Curved luminaire 1/8 45° Grey (G) 39 1666 43 4000 DALI 2 937 2450
90782L006HG0300 Curved luminaire 1/8 45° Grey (G) 39 1590 41 3000 DALI 2 937 2450
90782L006HI0000 Curved luminaire 1/8 45° Carbon (I) 39 1666 43 4000 DALI 2 937 2450
90782L006HI0300 Curved luminaire 1/8 45° Carbon (I) 39 1590 41 3000 DALI 2 937 2450
90782L006HL0000 Curved luminaire 1/8 45° Autumn (L) 39 1666 43 4000 DALI 2 937 2450
90782L006HL0300 Curved luminaire 1/8 45° Autumn (L) 39 1590 41 3000 DALI 2 937 2450
90782L006HN0000 Curved luminaire 1/8 45° Jungle (N) 39 1666 43 4000 DALI 2 937 2450
90782L006HN0300 Curved luminaire 1/8 45° Jungle (N) 39 1590 41 3000 DALI 2 937 2450
90782L006HR0000 Curved luminaire 1/8 45° Rusty chain (R) 39 1666 43 4000 DALI 2 937 2450
90782L006HR0300 Curved luminaire 1/8 45° Rusty chain (R) 39 1590 41 3000 DALI 2 937 2450
90782L006HW0000 Curved luminaire 1/8 45° White (W) 39 1666 43 4000 DALI 2 937 2450
90782L006HW0300 Curved luminaire 1/8 45° White (W) 39 1590 41 3000 DALI 2 937 2450
90782L007E00000 Curved luminaire 1/8 45° Sahara (0) 20 1943 97 4000 ON/OFF 1071 2800
90782L007E00300 Curved luminaire 1/8 45° Sahara (0) 20 1855 93 3000 ON/OFF 1071 2800
90782L007E10000 Curved luminaire 1/8 45° Mist (1) 20 1943 97 4000 ON/OFF 1071 2800
90782L007E10300 Curved luminaire 1/8 45° Mist (1) 20 1855 93 3000 ON/OFF 1071 2800
90782L007E50000 Curved luminaire 1/8 45° Old Rose (5) 20 1943 97 4000 ON/OFF 1071 2800
90782L007E50300 Curved luminaire 1/8 45° Old Rose (5) 20 1855 93 3000 ON/OFF 1071 2800
Explore our products
Go to Products
Title Cookie Settings

INDELAGUE may use cookies to memorize your login data, collect statistics to optimize the website’s functionality and to carry out marketing actions based on your interests.You can customize used cookies in .

Strictly Necessary Cookies
These cookies are essential to provide services available on our website and to enable you to use certain features on our website.
Without these cookies, we cannot provide certain services on our site.

Functionality cookies
These cookies are used to provide a more personalised experience on our website and to remember the choices you make when using our website.
For example, we may use functionality cookies to remember your language preferences and/or your login details.

Customization Cookies
These cookies are used to recognise visitors when they return to our site. This allows us to personalise the content of the site for you, greet you by name and remember your preferences (for example, your choice of language or region).

Security Cookies
These cookies are used to protect the security of our website and your data. This includes cookies that are used to allow you to log in to secure areas of our website.

Measurement and Performance Cookies
These cookies are used to collect information to analyse traffic on our site and understand how visitors are using our site.
For example, these cookies can measure factors such as the time spent on the site or the pages visited, this will allow us to understand how we can improve our site for users.
The information collected through these measurement and performance cookies does not identify any individual visitor.

Advertising Cookies
These cookies are used to provide adverts that are more relevant to you and your interests. They are also used to limit the number of times you see an advert and to help measure the effectiveness of an advertising campaign. They may be placed by us or by third parties with our permission. They remember that you have visited a site and this information is shared with other organisations, such as advertisers.

Cookie Policy
