DYNA MINI /C

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Recessed
Control Gear Included
No
Body Material
Steel sheet
Finishing
Powder-coated
Ceiling Thickness (mm)
1-25

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip

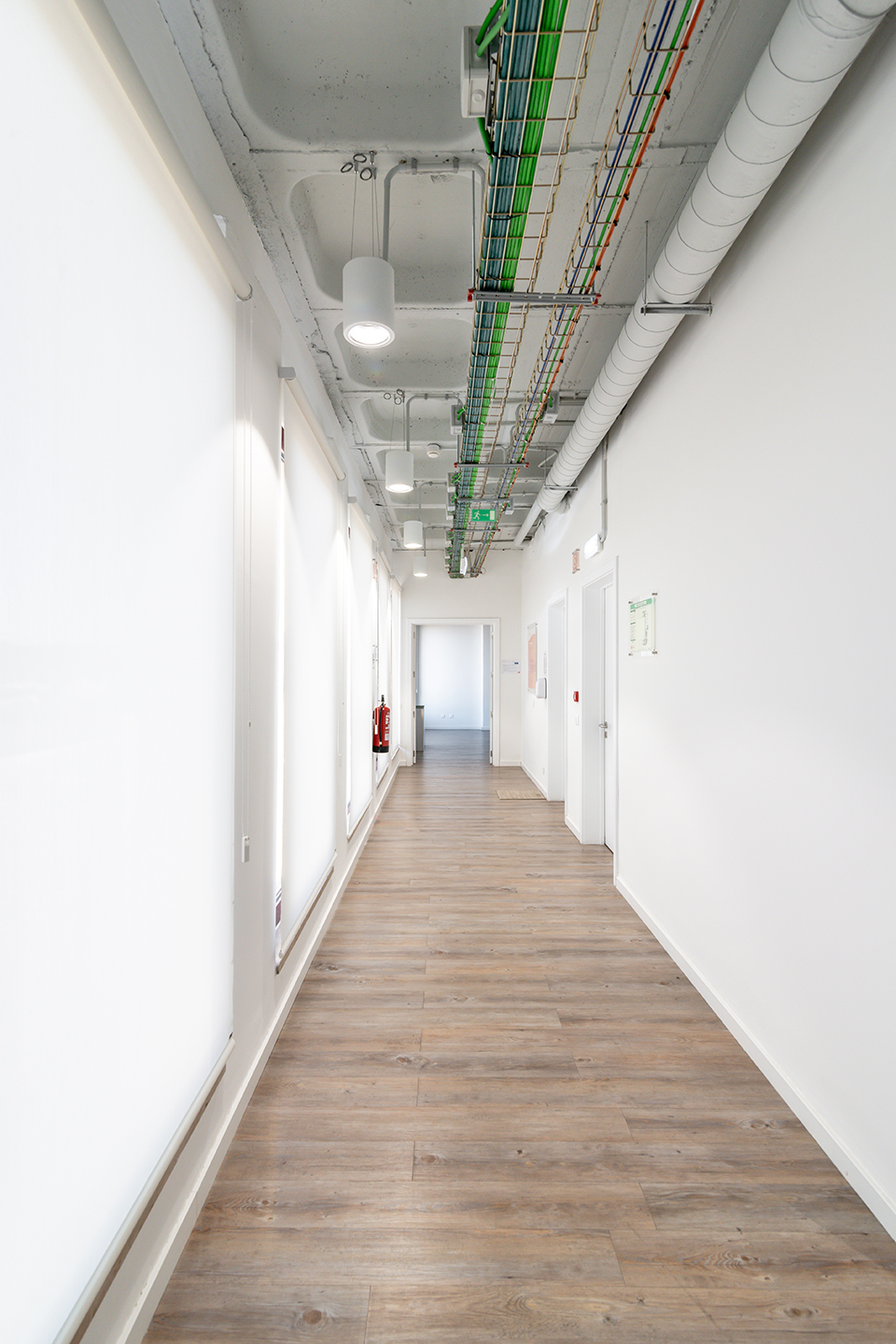

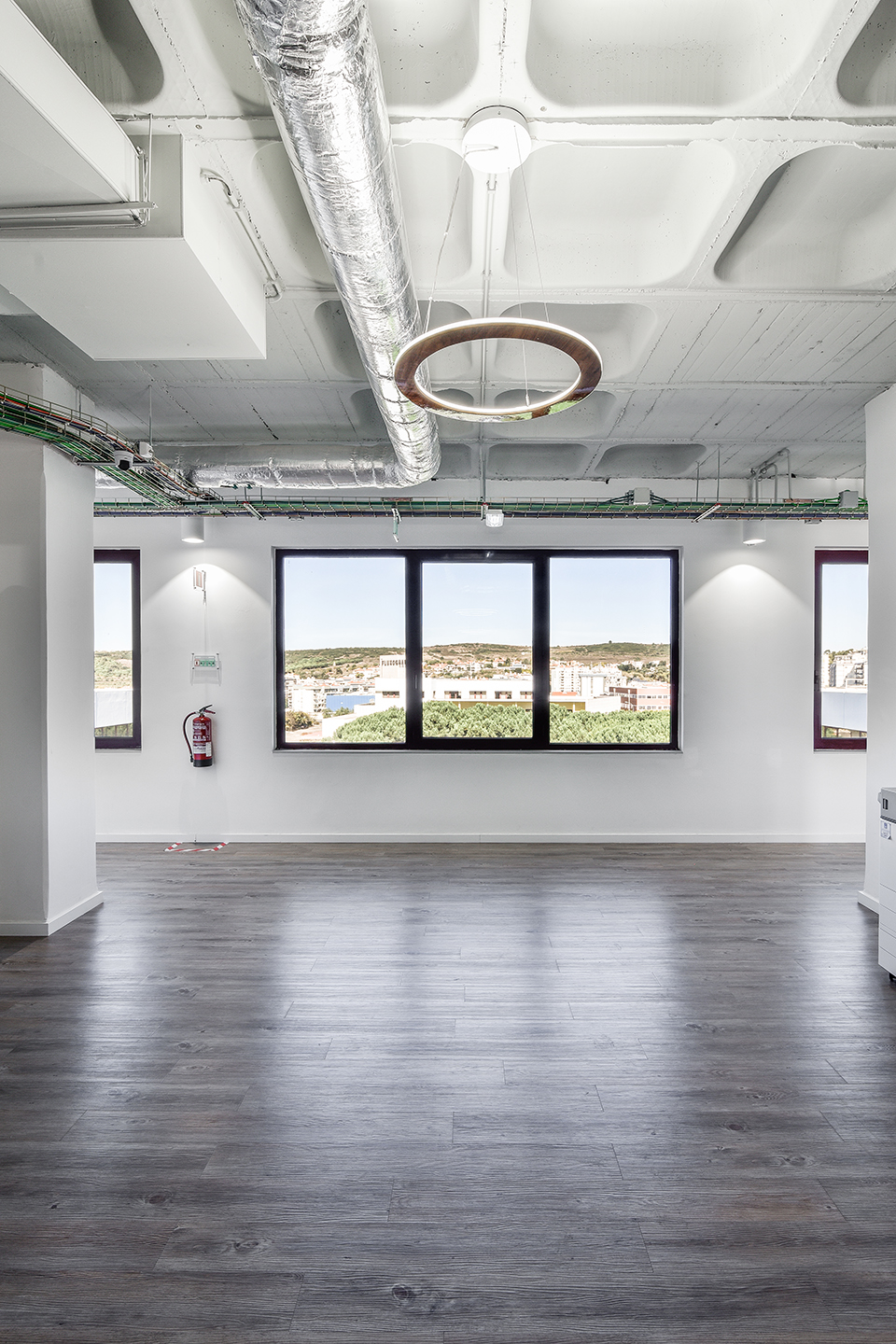

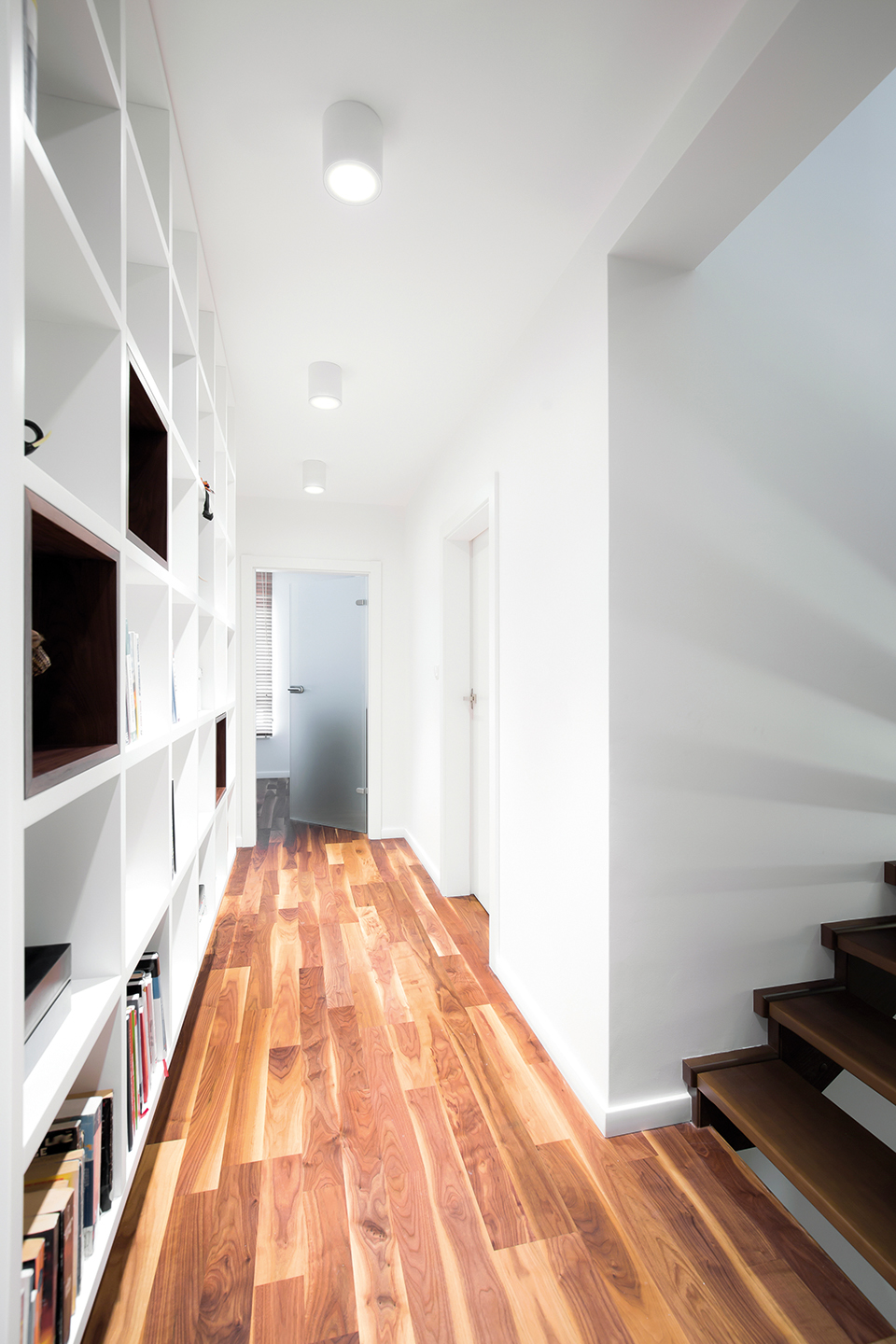

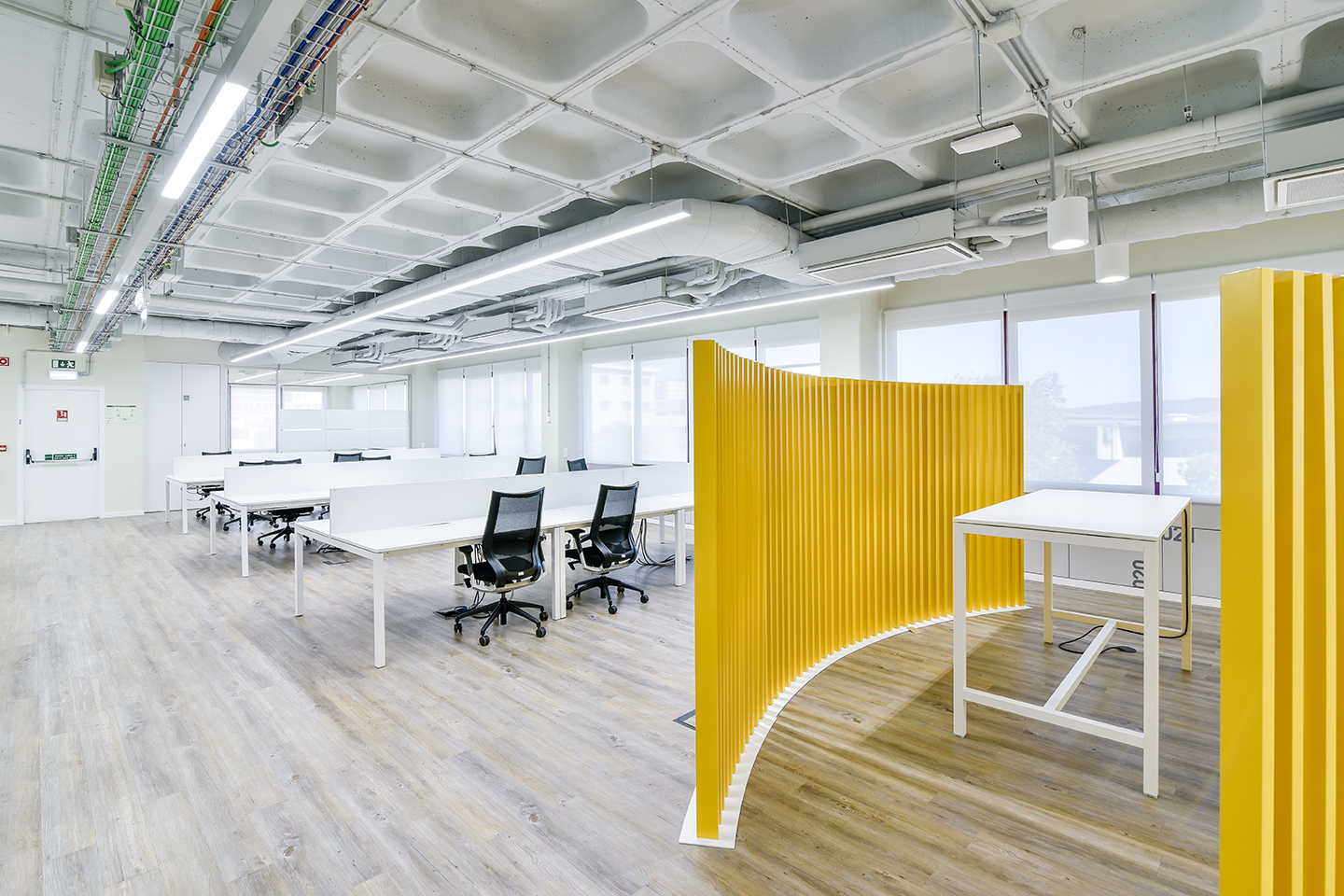

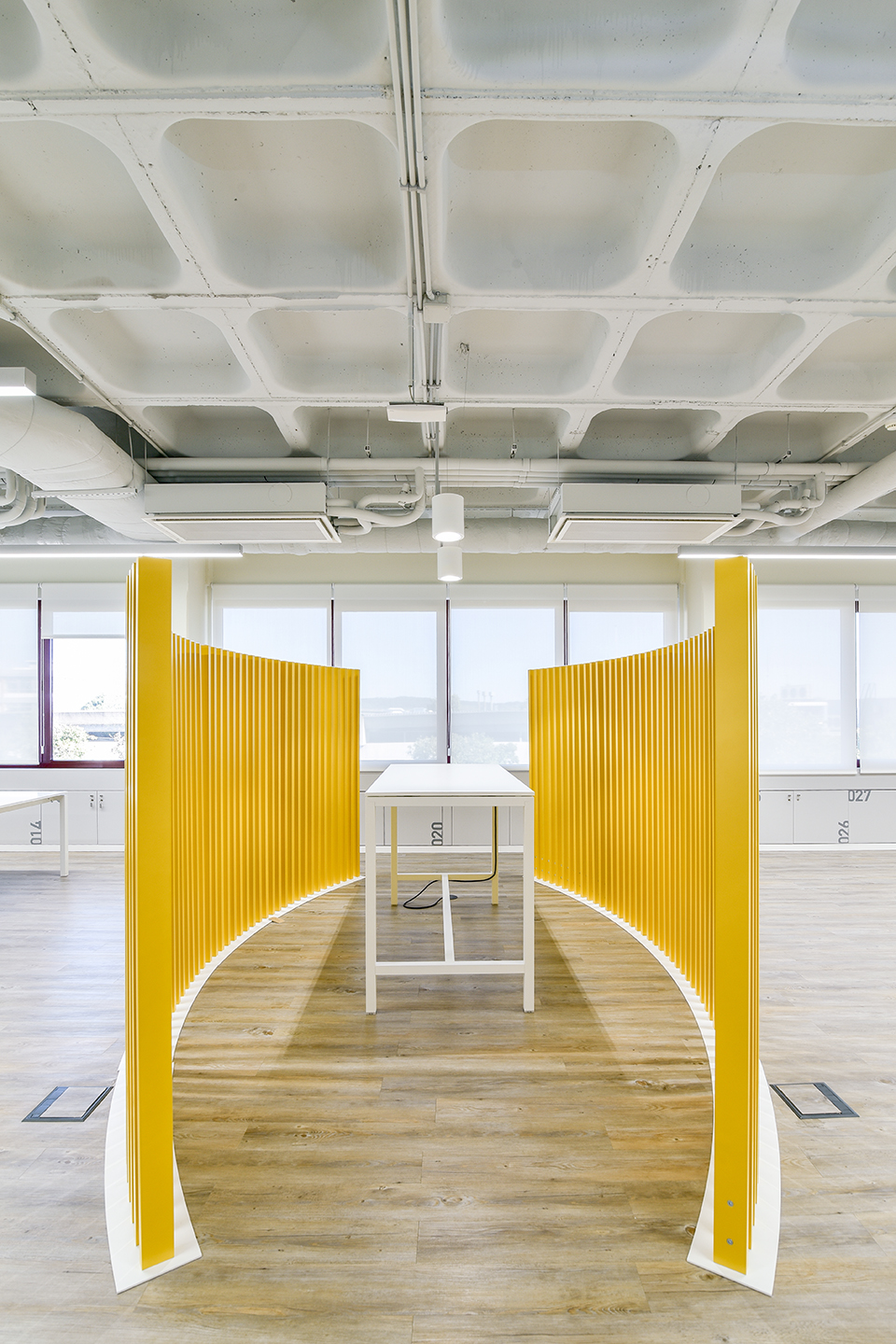

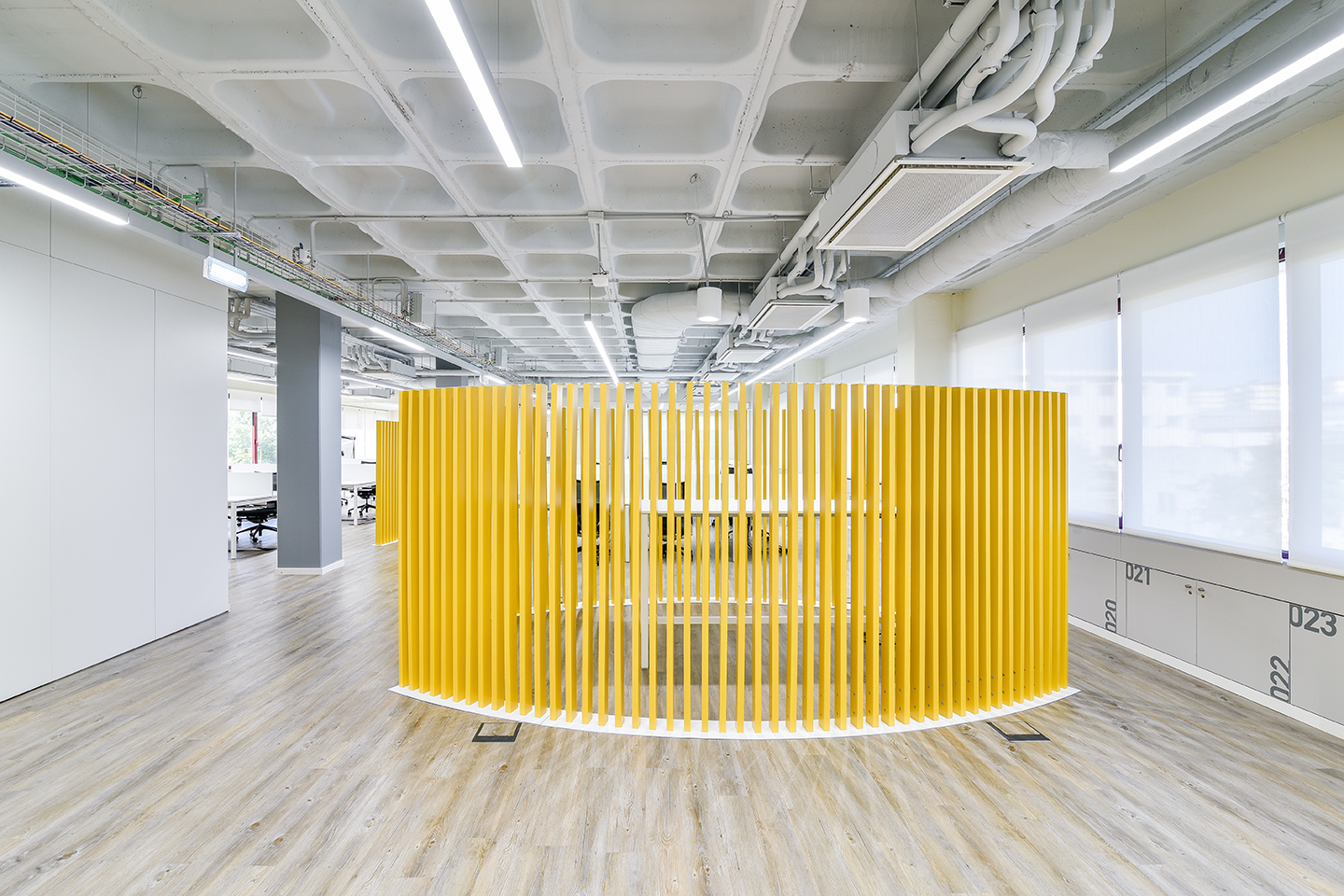

Application Pictures
.zip

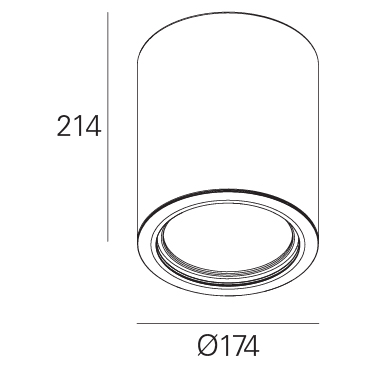

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

DYNA MINI /C

Results
24 Products

Filter Variants

Results
Filter Variants
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Colour Temperature (CCT)
Dimming
Clear Filters
Filters
Code
Colour W lm Output lm/W CCT (K) Dimming
Code
Colour W lm Output lm/W CCT (K) Dimming
90761L00HEB0A00 Black (B) 21 2125 101 4000 ON/OFF
90761L00HEB0B00 Black (B) 21 1805 86 3000 ON/OFF
90761L00HEW0A00 White (W) 21 2125 101 4000 ON/OFF
90761L00HEW0B00 White (W) 21 1805 86 3000 ON/OFF
90761L00HHB0A00 Black (B) 19 2125 112 4000 DALI 2
90761L00HHB0B00 Black (B) 19 1805 95 3000 DALI 2
90761L00HHW0A00 White (W) 19 2125 112 4000 DALI 2
90761L00HHW0B00 White (W) 19 1805 95 3000 DALI 2
90761L00LEB0A00 Black (B) 9 1064 118 4000 ON/OFF
90761L00LEB0B00 Black (B) 9 951 106 3000 ON/OFF
90761L00LEW0A00 White (W) 9 1064 118 4000 ON/OFF
90761L00LEW0B00 White (W) 9 951 106 3000 ON/OFF
90761L00LHB0A00 Black (B) 9 1064 118 4000 DALI 2
90761L00LHB0B00 Black (B) 9 951 106 3000 DALI 2
90761L00LHW0A00 White (W) 9 1064 118 4000 DALI 2
90761L00LHW0B00 White (W) 9 951 106 3000 DALI 2
90761L00MEB0A00 Black (B) 14 1454 104 4000 ON/OFF
90761L00MEB0B00 Black (B) 14 1317 94 3000 ON/OFF
90761L00MEW0A00 White (W) 14 1454 104 4000 ON/OFF
90761L00MEW0B00 White (W) 14 1317 94 3000 ON/OFF
90761L00MHB0A00 Black (B) 13 1454 112 4000 DALI 2
90761L00MHB0B00 Black (B) 13 1317 101 3000 DALI 2
90761L00MHW0A00 White (W) 13 1454 112 4000 DALI 2
90761L00MHW0B00 White (W) 13 1317 101 3000 DALI 2
