DYNA SQ IP

View range presentation
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Recessed
Control Gear Included
No
Body Material
Steel sheet
Finishing
Powder-coated
Ceiling Thickness (mm)
1-25

Details

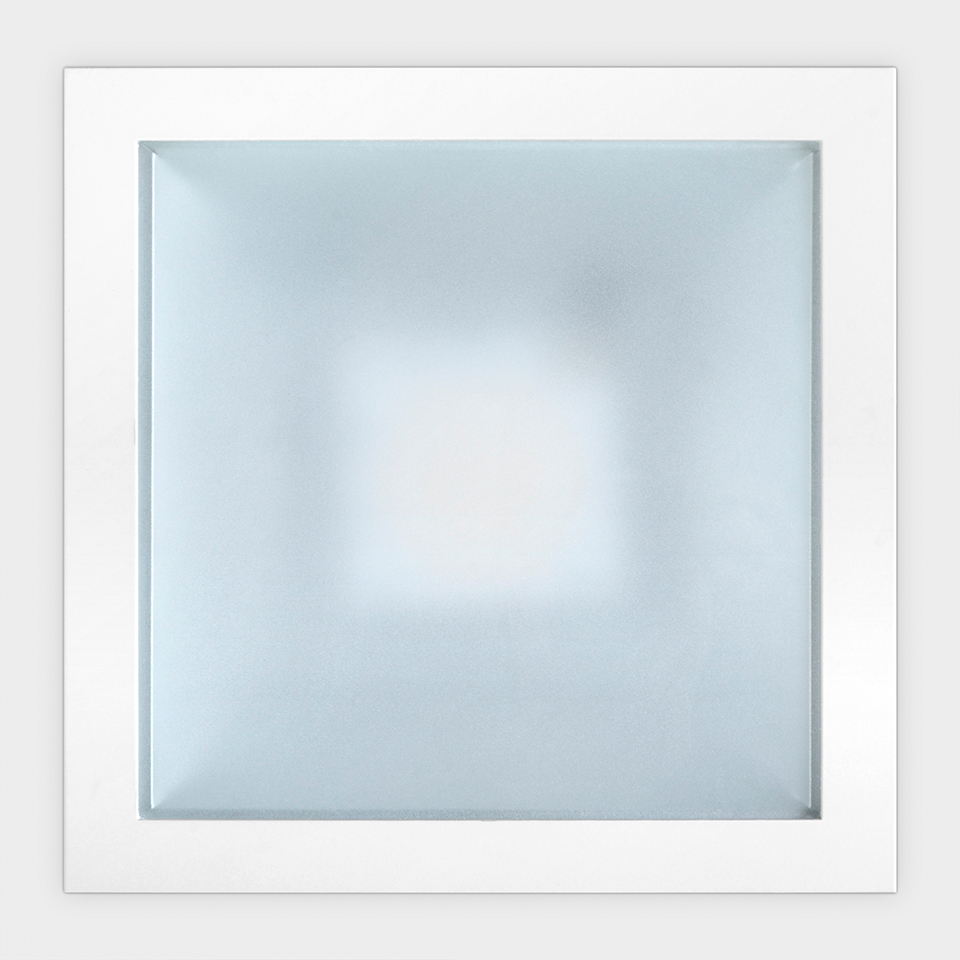

Front view
Front view

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip

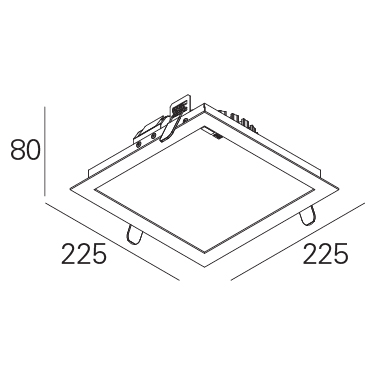

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

DYNA SQ IP

Results
24 Products

Filter Variants

Results
Filter Variants
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Input luminaire current (mA)
Colour Temperature (CCT) (K)
Clear Filters
Filters
Code
Colour W lm Output lm/W mA CCT (K)
Code
Colour W lm Output lm/W mA CCT (K)
90758L00H0B0000 Black (B) 32 3884 121 900 4000
90758L00H0B0300 Black (B) 32 3629 113 900 3000
90758L00H0B3000 Black (B) 32 3884 121 900 4000
90758L00H0B3300 Black (B) 32 3629 113 900 3000
90758L00H0W0000 White (W) 32 3884 121 900 4000
90758L00H0W0300 White (W) 32 3629 113 900 3000
90758L00H0W3000 White (W) 32 3884 121 900 4000
90758L00H0W3300 White (W) 32 3629 113 900 3000
90758L00L0B0000 Black (B) 17 2326 137 500 4000
90758L00L0B0300 Black (B) 17 2204 130 500 3000
90758L00L0B3000 Black (B) 17 2326 137 500 4000
90758L00L0B3300 Black (B) 17 2204 130 500 3000
90758L00L0W0000 White (W) 17 2326 137 500 4000
90758L00L0W0300 White (W) 17 2204 130 500 3000
90758L00L0W3000 White (W) 17 2326 137 500 4000
90758L00L0W3300 White (W) 17 2204 130 500 3000
90758L00M0B0000 Black (B) 24 3121 130 700 4000
90758L00M0B0300 Black (B) 24 2917 122 700 3000
90758L00M0B3000 Black (B) 24 3121 130 700 4000
90758L00M0B3300 Black (B) 24 2917 122 700 3000
90758L00M0W0000 White (W) 24 3121 130 700 4000
90758L00M0W0300 White (W) 24 2917 122 700 3000
90758L00M0W3000 White (W) 24 3121 130 700 4000
90758L00M0W3300 White (W) 24 2917 122 700 3000
