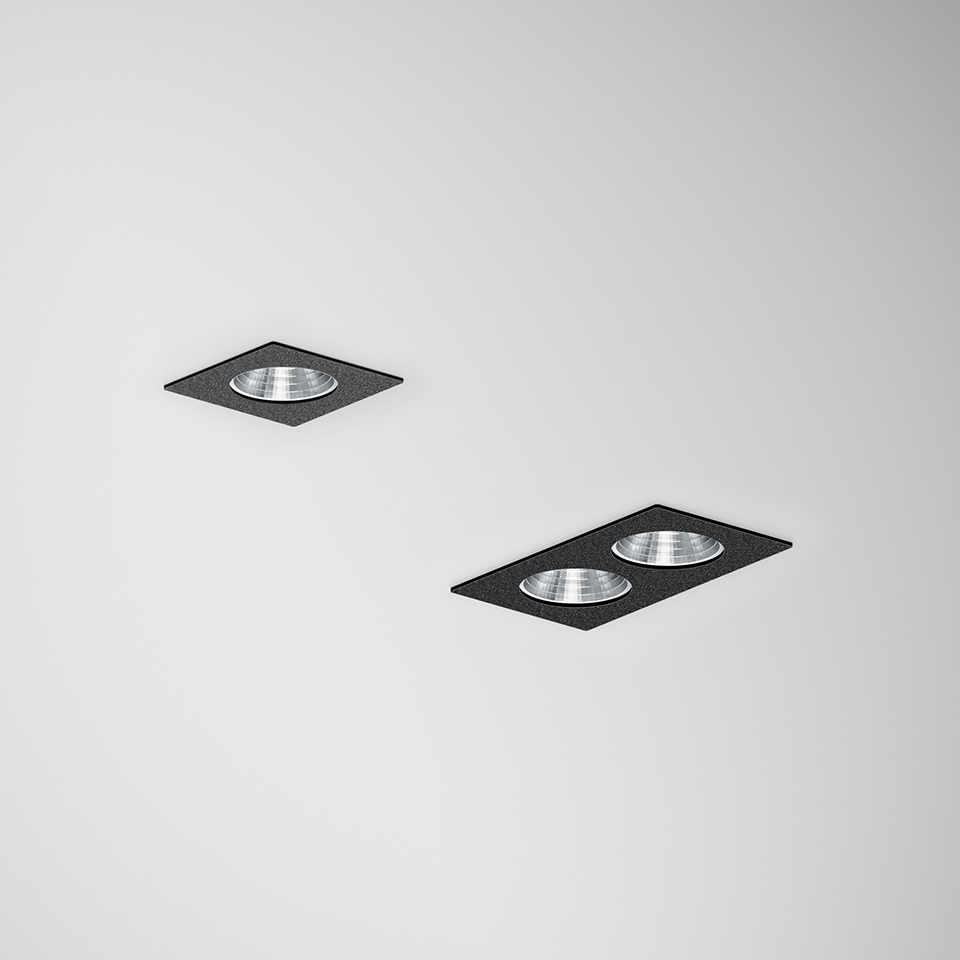

ELI 50 SQ /E

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Recessed
Control Gear Included
No
Body Material
Extruded aluminium profile
Finishing
Powder-coated
Ceiling Thickness (mm)
1-25

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip

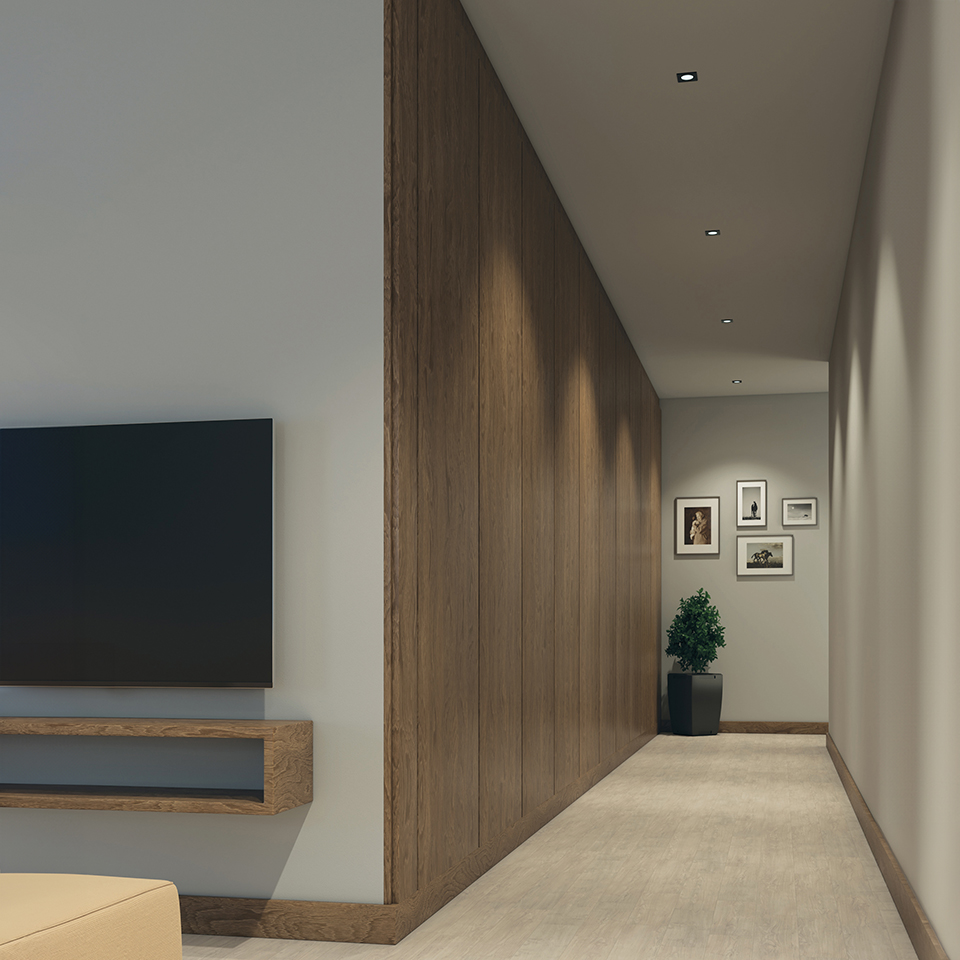

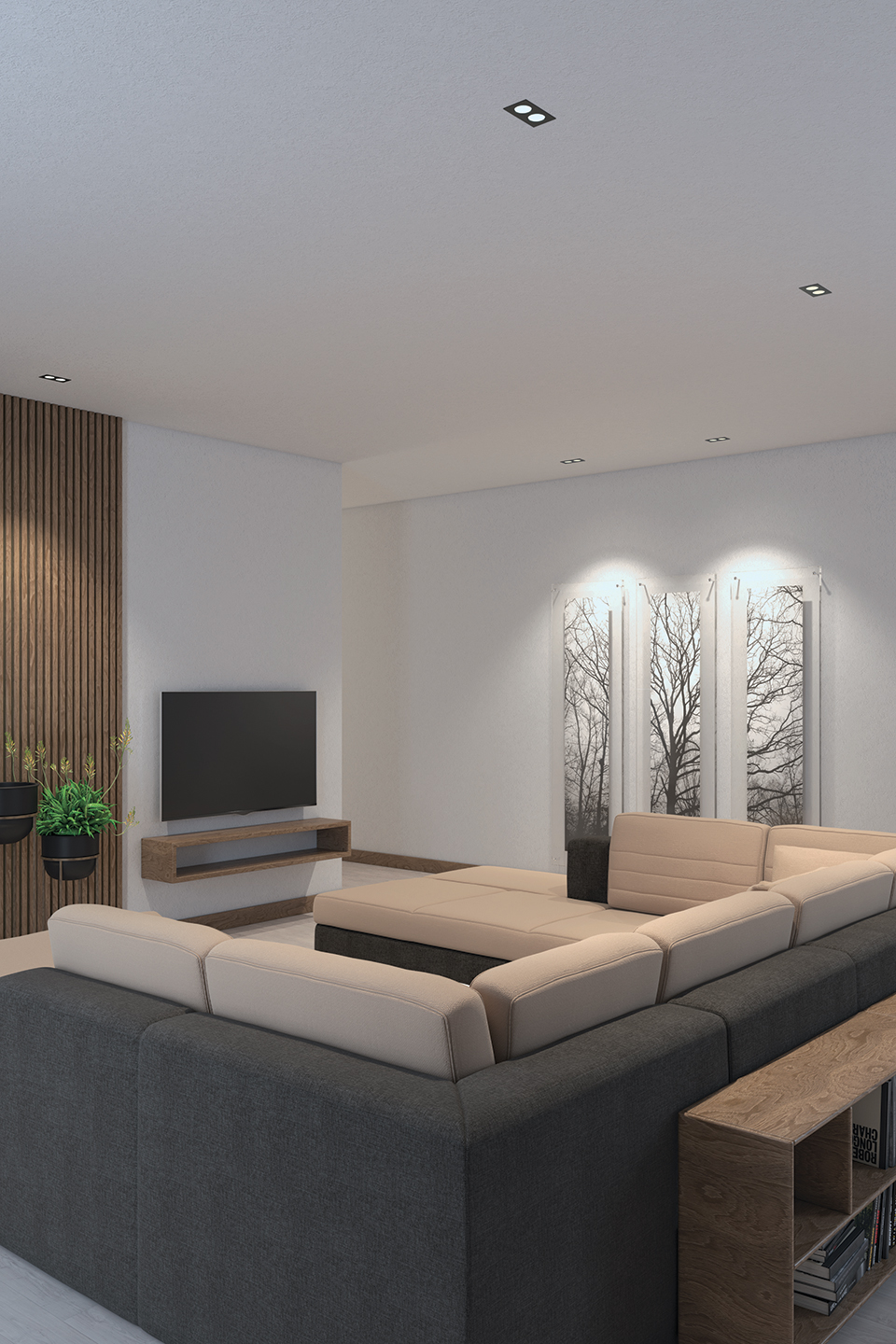

Application Pictures
.zip
Catalogue Pages
.pdf

ELI 50 SQ /E

Results
32 Products

Filter Variants

Results
Filter Variants
Colour
Beam angle
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Input luminaire current (mA)
Colour Temperature (CCT) (K)
Clear Filters
Filters
Code
Colour Beam angle W lm Output lm/W mA CCT (K) L (mm) W (mm) Recessed (mm)
Code
Colour Beam angle W lm Output lm/W mA CCT (K) L (mm) W (mm) Recessed (mm)
90696L0010B0020 Black (B) 20° 9 1168 130 250 4000 75 75 65-68
90696L0010B0050 Black (B) 50° 9 1144 127 250 4000 75 75 65-68
90696L0010B0320 Black (B) 20° 9 1112 124 250 3000 75 75 65-68
90696L0010B0350 Black (B) 50° 9 1088 121 250 3000 75 75 65-68
90696L0010W0020 White (W) 20° 9 1168 130 250 4000 75 75 65-68
90696L0010W0050 White (W) 50° 9 1144 127 250 4000 75 75 65-68
90696L0010W0320 White (W) 20° 9 1112 124 250 3000 75 75 65-68
90696L0010W0350 White (W) 50° 9 1088 121 250 3000 75 75 65-68
90696L0020B0020 Black (B) 20° 17 2336 137 500 4000 75 135 60-65 / 120-125
90696L0020B0050 Black (B) 50° 17 2288 135 500 4000 75 135 60-65 / 120-125
90696L0020B0320 Black (B) 20° 17 2224 131 500 3000 75 135 60-65 / 120-125
90696L0020B0350 Black (B) 50° 17 2177 128 500 3000 75 135 60-65 / 120-125
90696L0020W0020 White (W) 20° 17 2336 137 500 4000 75 135 60-65 / 120-125
90696L0020W0050 White (W) 50° 17 2288 135 500 4000 75 135 60-65 / 120-125
90696L0020W0320 White (W) 20° 17 2224 131 500 3000 75 135 60-65 / 120-125
90696L0020W0350 White (W) 50° 17 2177 128 500 3000 75 135 60-65 / 120-125
90697L0010B0020 Black (B) 20° 5 747 149 150 4000 75 75 65-68
90697L0010B0050 Black (B) 50° 5 724 145 150 4000 75 75 65-68
90697L0010B0320 Black (B) 20° 5 710 142 150 3000 75 75 65-68
90697L0010B0350 Black (B) 50° 5 680 136 150 3000 75 75 65-68
90697L0010W0020 White (W) 20° 5 747 149 150 4000 75 75 65-68
90697L0010W0050 White (W) 50° 5 724 145 150 4000 75 75 65-68
90697L0010W0320 White (W) 20° 5 710 142 150 3000 75 75 65-68
90697L0010W0350 White (W) 50° 5 680 136 150 3000 75 75 65-68
90697L0020B0020 Black (B) 20° 10 1494 149 300 4000 75 135 60-65 / 120-125
90697L0020B0050 Black (B) 50° 10 1448 145 300 4000 75 135 60-65 / 120-125
90697L0020B0320 Black (B) 20° 10 1419 142 300 3000 75 135 60-65 / 120-125
90697L0020B0350 Black (B) 50° 10 1360 136 300 3000 75 135 60-65 / 120-125
90697L0020W0020 White (W) 20° 10 1494 149 300 4000 75 135 60-65 / 120-125
90697L0020W0050 White (W) 50° 10 1448 145 300 4000 75 135 60-65 / 120-125
90697L0020W0320 White (W) 20° 10 1419 142 300 3000 75 135 60-65 / 120-125
90697L0020W0350 White (W) 50° 10 1360 136 300 3000 75 135 60-65 / 120-125
