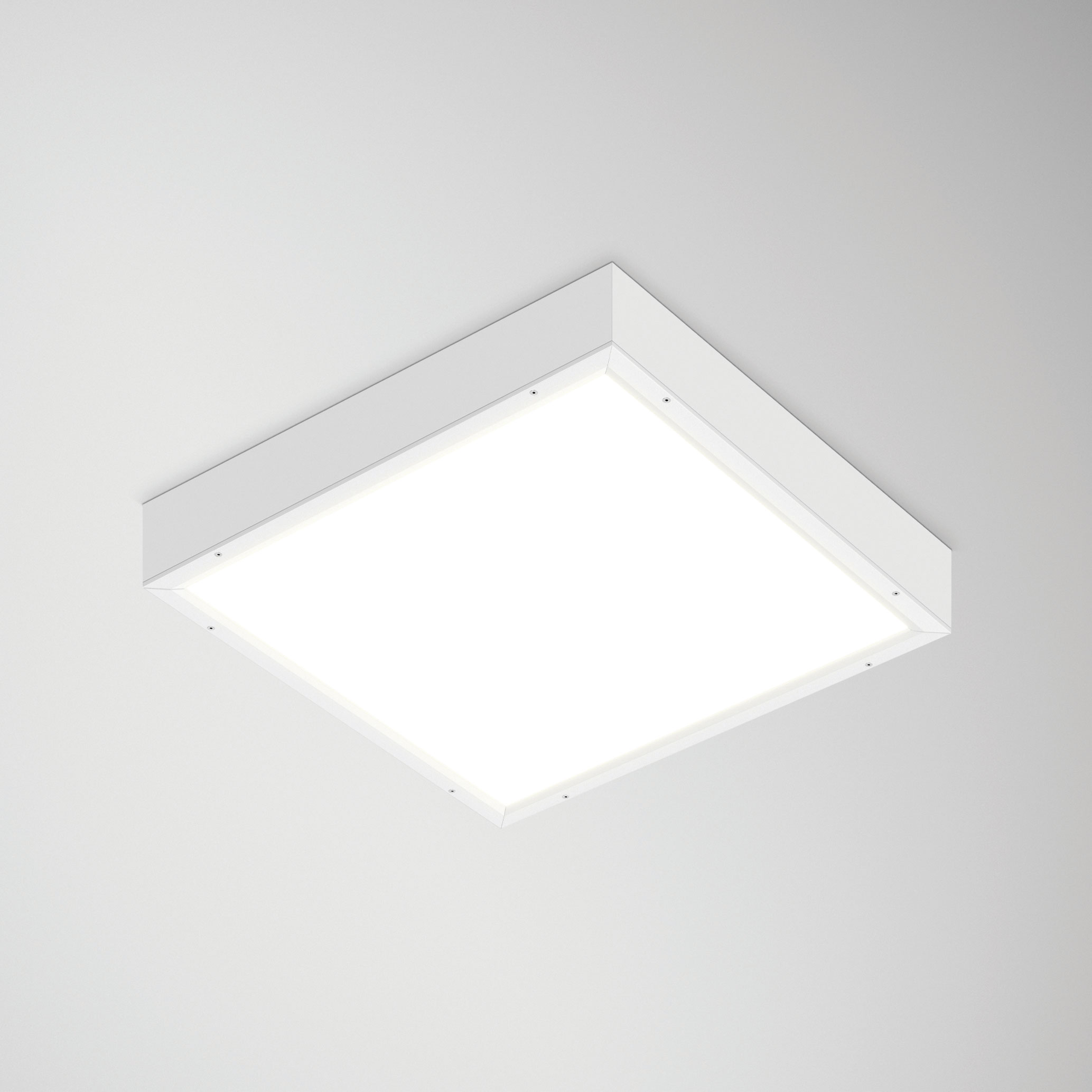

THS

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Extruded aluminium profile
Frame Material
Extruded aluminium profile
Finishing
Powder-coated

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip
Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

THS

Results
40 Products

Filter Variants

Results
Filter Variants
Optical System
Dimming
Emergency (h)
Length (mm)
Width (mm)
Clear Filters
Filters
Code
Optical System W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm) W (mm)
Code
Optical System W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm) W (mm)
90801L066EW0000 DAM - Microprismatic diffuser 34 4225 124 4000 ON/OFF 0 597 597
90801L066EW3000 DAM - Microprismatic diffuser 34 4225 124 4000 ON/OFF 3 597 597
90801L066HW0000 DAM - Microprismatic diffuser 34 4225 124 4000 DALI 2 0 597 597
90801L066HW3000 DAM - Microprismatic diffuser 34 4225 124 4000 DALI 2 3 597 597
90801L123EW0000 DAM - Microprismatic diffuser 34 4225 124 4000 ON/OFF 0 1142 297
90801L123EW3000 DAM - Microprismatic diffuser 34 4225 124 4000 ON/OFF 3 1142 297
90801L123HW0000 DAM - Microprismatic diffuser 34 4225 124 4000 DALI 2 0 1142 297
90801L123HW3000 DAM - Microprismatic diffuser 34 4225 124 4000 DALI 2 3 1142 297
90801L153EW0000 DAM - Microprismatic diffuser 42 5282 126 4000 ON/OFF 0 1417 297
90801L153EW3000 DAM - Microprismatic diffuser 42 5282 126 4000 ON/OFF 3 1417 297
90801L153HW0000 DAM - Microprismatic diffuser 42 5282 126 4000 DALI 2 0 1417 297
90801L153HW3000 DAM - Microprismatic diffuser 42 5282 126 4000 DALI 2 3 1417 297
90802L066EW0000 LIGHT+ - Opal diffuser 34 4587 135 4000 ON/OFF 0 597 597
90802L066EW3000 LIGHT+ - Opal diffuser 34 4587 135 4000 ON/OFF 3 597 597
90802L066HW0000 LIGHT+ - Opal diffuser 34 4587 135 4000 DALI 2 0 597 597
90802L066HW3000 LIGHT+ - Opal diffuser 34 4587 135 4000 DALI 2 3 597 597
90802L123EW0000 LIGHT+ - Opal diffuser 34 4587 135 4000 ON/OFF 0 1142 297
90802L123EW3000 LIGHT+ - Opal diffuser 34 4587 135 4000 ON/OFF 3 1142 297
90802L123HW0000 LIGHT+ - Opal diffuser 34 4587 135 4000 DALI 2 0 1142 297
90802L123HW3000 LIGHT+ - Opal diffuser 34 4587 135 4000 DALI 2 3 1142 297
90802L153EW0000 LIGHT+ - Opal diffuser 42 5734 137 4000 ON/OFF 0 1417 297
90802L153EW3000 LIGHT+ - Opal diffuser 42 5734 137 4000 ON/OFF 3 1417 297
90802L153HW0000 LIGHT+ - Opal diffuser 42 5734 137 4000 DALI 2 0 1417 297
90802L153HW3000 LIGHT+ - Opal diffuser 42 5734 137 4000 DALI 2 3 1417 297
90803L066EW0000 DAM - Microprismatic diffuser 59 7129 121 4000 ON/OFF 0 597 597
90803L066EW3000 DAM - Microprismatic diffuser 59 7129 121 4000 ON/OFF 3 597 597
90803L066HW0000 DAM - Microprismatic diffuser 59 7129 121 4000 DALI 2 0 597 597
90803L066HW3000 DAM - Microprismatic diffuser 59 7129 121 4000 DALI 2 3 597 597
90803L153EW0000 DAM - Microprismatic diffuser 74 8911 120 4000 ON/OFF 0 1417 297
90803L153EW3000 DAM - Microprismatic diffuser 74 8911 120 4000 ON/OFF 3 1417 297
90803L153HW0000 DAM - Microprismatic diffuser 73 8911 122 4000 DALI 2 0 1417 297
90803L153HW3000 DAM - Microprismatic diffuser 73 8911 122 4000 DALI 2 3 1417 297
90804L066EW0000 LIGHT+ - Opal diffuser 59 7740 131 4000 ON/OFF 0 597 597
90804L066EW3000 LIGHT+ - Opal diffuser 59 7740 131 4000 ON/OFF 3 597 597
90804L066HW0000 LIGHT+ - Opal diffuser 59 7740 131 4000 DALI 2 0 597 597
90804L066HW3000 LIGHT+ - Opal diffuser 59 7740 131 4000 DALI 2 3 597 597
90804L153EW0000 LIGHT+ - Opal diffuser 74 9675 131 4000 ON/OFF 0 1417 297
90804L153EW3000 LIGHT+ - Opal diffuser 74 9675 131 4000 ON/OFF 3 1417 297
90804L153HW0000 LIGHT+ - Opal diffuser 73 9675 133 4000 DALI 2 0 1417 297
90804L153HW3000 LIGHT+ - Opal diffuser 73 9675 133 4000 DALI 2 3 1417 297
