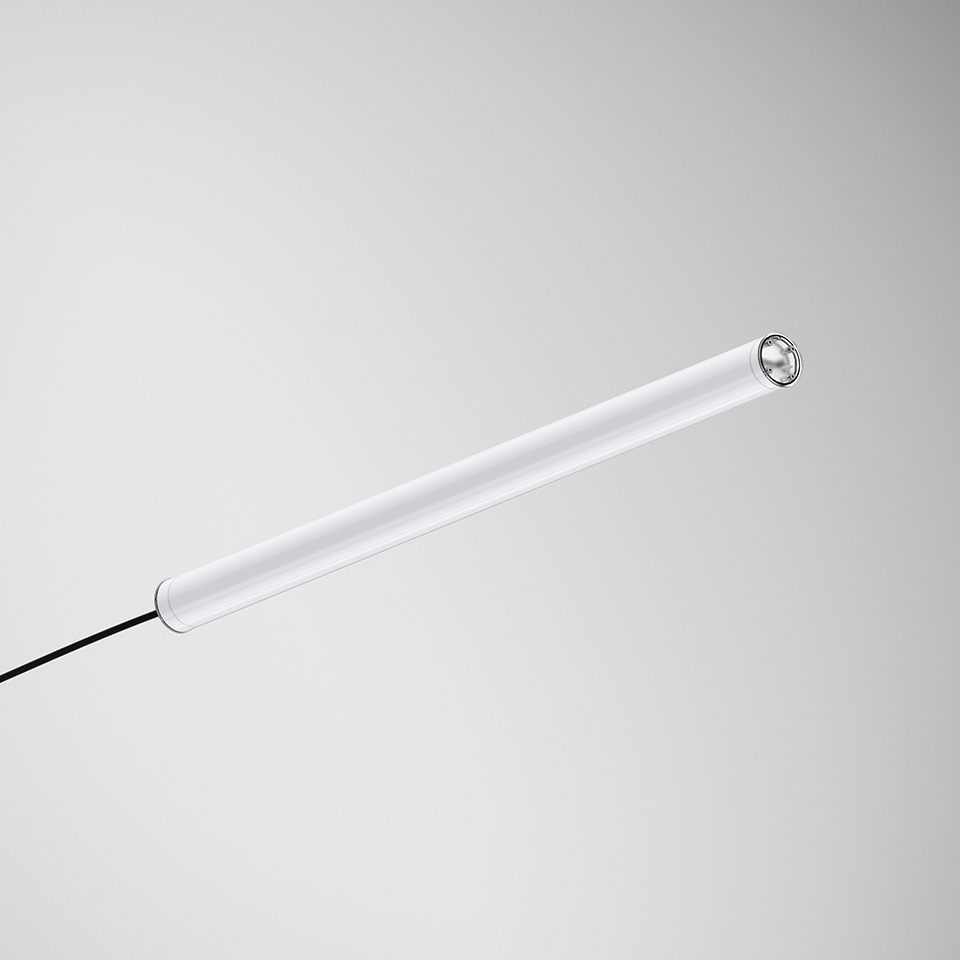

TTP 70

View range presentation
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Public spaces, Industry, Outside
Mounting Type
Surface mounted, Suspended, Wall mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Polycarbonate tube
Finishing
Powder-coated
Pre-wiring / Through-wiring Included
1,5m long H07RN-F supply cable
Current Supply Cable Entry Point
End cap
Fixing System
Clamp

Details

Ceiling surface application
Ceiling surface application
Suspended application
Suspended application
Wall application
Wall application
Opal diffuser
Opal diffuser
Transparent diffuser
Transparent diffuser
Transparent polycarbonate end caps
Transparent polycarbonate end caps
Stainless steel end caps
Stainless steel end caps
Stainless steel clamp A1 D70
Stainless steel clamp A1 D70
Stainless steel clamp A2 D70
Stainless steel clamp A2 D70
Stainless steel clamp D70 with fast lock
Stainless steel clamp D70 with fast lock
Ceiling rose
Ceiling rose
Plastic cable gland
Plastic cable gland
Metal cable gland
Metal cable gland
Breathable metal cable gland
Breathable metal cable gland
Sensor
Sensor

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip
Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Product Brochure
.pdf
Catalogue Pages
.pdf

TTP 70

Results
128 Products

Filter Variants

Results
Filter Variants
Optical System
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Colour Temperature (CCT)
Dimming
Emergency (h)
Length (mm)
Options
Clear Filters
Filters
Code
Optical System W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm) Options
Code
Optical System W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm) Options
90474L060E00000 TOP - Opal diffuser 26 3506 135 4000 ON/OFF 0 620 Polycarbonate end caps
90474L060E00300 TOP - Opal diffuser 26 3358 129 3000 ON/OFF 0 620 Polycarbonate end caps
90474L060E04000 TOP - Opal diffuser 26 3506 135 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90474L060E04300 TOP - Opal diffuser 26 3358 129 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90474L060H00000 TOP - Opal diffuser 27 3506 130 4000 DALI 2 0 620 Polycarbonate end caps
90474L060H00300 TOP - Opal diffuser 27 3358 124 3000 DALI 2 0 620 Polycarbonate end caps
90474L090E00000 TOP - Opal diffuser 40 5259 131 4000 ON/OFF 0 900 Polycarbonate end caps
90474L090E00300 TOP - Opal diffuser 40 5037 126 3000 ON/OFF 0 900 Polycarbonate end caps
90474L090E04000 TOP - Opal diffuser 40 5259 131 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90474L090E04300 TOP - Opal diffuser 40 5037 126 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90474L090H00000 TOP - Opal diffuser 39 5259 135 4000 DALI 2 0 900 Polycarbonate end caps
90474L090H00300 TOP - Opal diffuser 39 5037 129 3000 DALI 2 0 900 Polycarbonate end caps
90474L120E00000 TOP - Opal diffuser 51 7011 137 4000 ON/OFF 0 1180 Polycarbonate end caps
90474L120E00300 TOP - Opal diffuser 51 6717 132 3000 ON/OFF 0 1180 Polycarbonate end caps
90474L120E03000 TOP - Opal diffuser 51 7011 137 4000 ON/OFF 3 1180 Polycarbonate end caps
90474L120E03300 TOP - Opal diffuser 51 6717 132 3000 ON/OFF 3 1180 Polycarbonate end caps
90474L120E04000 TOP - Opal diffuser 51 7011 137 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90474L120E04300 TOP - Opal diffuser 51 6717 132 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90474L120E06000 TOP - Opal diffuser 51 7011 137 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90474L120E06300 TOP - Opal diffuser 51 6717 132 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90474L120H00000 TOP - Opal diffuser 51 7011 137 4000 DALI 2 0 1180 Polycarbonate end caps
90474L120H00300 TOP - Opal diffuser 51 6717 132 3000 DALI 2 0 1180 Polycarbonate end caps
90474L150E00000 TOP - Opal diffuser 63 8764 139 4000 ON/OFF 0 1460 Polycarbonate end caps
90474L150E00300 TOP - Opal diffuser 63 8396 133 3000 ON/OFF 0 1460 Polycarbonate end caps
90474L150E03000 TOP - Opal diffuser 63 8764 139 4000 ON/OFF 3 1460 Polycarbonate end caps
90474L150E03300 TOP - Opal diffuser 63 8396 133 3000 ON/OFF 3 1460 Polycarbonate end caps
90474L150E04000 TOP - Opal diffuser 63 8764 139 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90474L150E04300 TOP - Opal diffuser 63 8396 133 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90474L150E06000 TOP - Opal diffuser 63 8764 139 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90474L150E06300 TOP - Opal diffuser 63 8396 133 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90474L150H00000 TOP - Opal diffuser 63 8764 139 4000 DALI 2 0 1460 Polycarbonate end caps
90474L150H00300 TOP - Opal diffuser 63 8396 133 3000 DALI 2 0 1460 Polycarbonate end caps
90475L060E00000 TUP - Transparent diffuser 26 3765 145 4000 ON/OFF 0 620 Polycarbonate end caps
90475L060E00300 TUP - Transparent diffuser 26 3607 139 3000 ON/OFF 0 620 Polycarbonate end caps
90475L060E04000 TUP - Transparent diffuser 26 3765 145 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90475L060E04300 TUP - Transparent diffuser 26 3607 139 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90475L060H00000 TUP - Transparent diffuser 27 3765 139 4000 DALI 2 0 620 Polycarbonate end caps
90475L060H00300 TUP - Transparent diffuser 27 3607 134 3000 DALI 2 0 620 Polycarbonate end caps
90475L090E00000 TUP - Transparent diffuser 40 5648 141 4000 ON/OFF 0 900 Polycarbonate end caps
90475L090E00300 TUP - Transparent diffuser 40 5411 135 3000 ON/OFF 0 900 Polycarbonate end caps
90475L090E04000 TUP - Transparent diffuser 40 5648 141 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90475L090E04300 TUP - Transparent diffuser 40 5411 135 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90475L090H00000 TUP - Transparent diffuser 39 5648 145 4000 DALI 2 0 900 Polycarbonate end caps
90475L090H00300 TUP - Transparent diffuser 39 5411 139 3000 DALI 2 0 900 Polycarbonate end caps
90475L120E00000 TUP - Transparent diffuser 51 7531 148 4000 ON/OFF 0 1180 Polycarbonate end caps
90475L120E00300 TUP - Transparent diffuser 51 7214 141 3000 ON/OFF 0 1180 Polycarbonate end caps
90475L120E03000 TUP - Transparent diffuser 51 7531 148 4000 ON/OFF 3 1180 Polycarbonate end caps
90475L120E03300 TUP - Transparent diffuser 51 7214 141 3000 ON/OFF 3 1180 Polycarbonate end caps
90475L120E04000 TUP - Transparent diffuser 51 7531 148 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90475L120E04300 TUP - Transparent diffuser 51 7214 141 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90475L120E06000 TUP - Transparent diffuser 51 7531 148 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90475L120E06300 TUP - Transparent diffuser 51 7214 141 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90475L120H00000 TUP - Transparent diffuser 51 7531 148 4000 DALI 2 0 1180 Polycarbonate end caps
90475L120H00300 TUP - Transparent diffuser 51 7214 141 3000 DALI 2 0 1180 Polycarbonate end caps
90475L150E00000 TUP - Transparent diffuser 63 9413 149 4000 ON/OFF 0 1460 Polycarbonate end caps
90475L150E00300 TUP - Transparent diffuser 63 9018 143 3000 ON/OFF 0 1460 Polycarbonate end caps
90475L150E03000 TUP - Transparent diffuser 63 9413 149 4000 ON/OFF 3 1460 Polycarbonate end caps
90475L150E03300 TUP - Transparent diffuser 63 9018 143 3000 ON/OFF 3 1460 Polycarbonate end caps
90475L150E04000 TUP - Transparent diffuser 63 9413 149 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90475L150E04300 TUP - Transparent diffuser 63 9018 143 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90475L150E06000 TUP - Transparent diffuser 63 9413 149 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90475L150E06300 TUP - Transparent diffuser 63 9018 143 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90475L150H00000 TUP - Transparent diffuser 63 9413 149 4000 DALI 2 0 1460 Polycarbonate end caps
90475L150H00300 TUP - Transparent diffuser 63 9018 143 3000 DALI 2 0 1460 Polycarbonate end caps
90476L060E00000 TOP - Opal diffuser 12 1691 141 4000 ON/OFF 0 620 Polycarbonate end caps
90476L060E00300 TOP - Opal diffuser 12 1620 135 3000 ON/OFF 0 620 Polycarbonate end caps
90476L060E04000 TOP - Opal diffuser 12 1691 141 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90476L060E04300 TOP - Opal diffuser 12 1620 135 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90476L060H00000 TOP - Opal diffuser 12 1691 141 4000 DALI 2 0 620 Polycarbonate end caps
90476L060H00300 TOP - Opal diffuser 12 1620 135 3000 DALI 2 0 620 Polycarbonate end caps
90476L090E00000 TOP - Opal diffuser 17 2536 149 4000 ON/OFF 0 900 Polycarbonate end caps
90476L090E00300 TOP - Opal diffuser 17 2430 143 3000 ON/OFF 0 900 Polycarbonate end caps
90476L090E04000 TOP - Opal diffuser 17 2536 149 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90476L090E04300 TOP - Opal diffuser 17 2430 143 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90476L090H00000 TOP - Opal diffuser 17 2536 149 4000 DALI 2 0 900 Polycarbonate end caps
90476L090H00300 TOP - Opal diffuser 17 2430 143 3000 DALI 2 0 900 Polycarbonate end caps
90476L120E00000 TOP - Opal diffuser 21 3382 161 4000 ON/OFF 0 1180 Polycarbonate end caps
90476L120E00300 TOP - Opal diffuser 21 3240 154 3000 ON/OFF 0 1180 Polycarbonate end caps
90476L120E03000 TOP - Opal diffuser 21 3382 161 4000 ON/OFF 3 1180 Polycarbonate end caps
90476L120E03300 TOP - Opal diffuser 21 3240 154 3000 ON/OFF 3 1180 Polycarbonate end caps
90476L120E04000 TOP - Opal diffuser 21 3382 161 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90476L120E04300 TOP - Opal diffuser 21 3240 154 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90476L120E06000 TOP - Opal diffuser 21 3382 161 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90476L120E06300 TOP - Opal diffuser 21 3240 154 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90476L120H00000 TOP - Opal diffuser 22 3382 154 4000 DALI 2 0 1180 Polycarbonate end caps
90476L120H00300 TOP - Opal diffuser 22 3240 147 3000 DALI 2 0 1180 Polycarbonate end caps
90476L150E00000 TOP - Opal diffuser 26 4227 163 4000 ON/OFF 0 1460 Polycarbonate end caps
90476L150E00300 TOP - Opal diffuser 26 4051 156 3000 ON/OFF 0 1460 Polycarbonate end caps
90476L150E03000 TOP - Opal diffuser 26 4227 163 4000 ON/OFF 3 1460 Polycarbonate end caps
90476L150E03300 TOP - Opal diffuser 26 4051 156 3000 ON/OFF 3 1460 Polycarbonate end caps
90476L150E04000 TOP - Opal diffuser 26 4227 163 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90476L150E04300 TOP - Opal diffuser 26 4051 156 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90476L150E06000 TOP - Opal diffuser 26 4227 163 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90476L150E06300 TOP - Opal diffuser 26 4051 156 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90476L150H00000 TOP - Opal diffuser 28 4227 151 4000 DALI 2 0 1460 Polycarbonate end caps
90476L150H00300 TOP - Opal diffuser 28 4051 145 3000 DALI 2 0 1460 Polycarbonate end caps
90477L060E00000 TUP - Transparent diffuser 12 1789 149 4000 ON/OFF 0 620 Polycarbonate end caps
90477L060E00300 TUP - Transparent diffuser 12 1714 143 3000 ON/OFF 0 620 Polycarbonate end caps
90477L060E04000 TUP - Transparent diffuser 12 1789 149 4000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90477L060E04300 TUP - Transparent diffuser 12 1714 143 3000 ON/OFF 0 750 Polycarbonate end caps + Sensor
90477L060H00000 TUP - Transparent diffuser 12 1789 149 4000 DALI 2 0 620 Polycarbonate end caps
90477L060H00300 TUP - Transparent diffuser 12 1714 143 3000 DALI 2 0 620 Polycarbonate end caps
90477L090E00000 TUP - Transparent diffuser 17 2684 158 4000 ON/OFF 0 900 Polycarbonate end caps
90477L090E00300 TUP - Transparent diffuser 17 2572 151 3000 ON/OFF 0 900 Polycarbonate end caps
90477L090E04000 TUP - Transparent diffuser 17 2684 158 4000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90477L090E04300 TUP - Transparent diffuser 17 2572 151 3000 ON/OFF 0 1030 Polycarbonate end caps + Sensor
90477L090H00000 TUP - Transparent diffuser 17 2684 158 4000 DALI 2 0 900 Polycarbonate end caps
90477L090H00300 TUP - Transparent diffuser 17 2572 151 3000 DALI 2 0 900 Polycarbonate end caps
90477L120E00000 TUP - Transparent diffuser 21 3578 170 4000 ON/OFF 0 1180 Polycarbonate end caps
90477L120E00300 TUP - Transparent diffuser 21 3429 163 3000 ON/OFF 0 1180 Polycarbonate end caps
90477L120E03000 TUP - Transparent diffuser 21 3578 170 4000 ON/OFF 3 1180 Polycarbonate end caps
90477L120E03300 TUP - Transparent diffuser 21 3429 163 3000 ON/OFF 3 1180 Polycarbonate end caps
90477L120E04000 TUP - Transparent diffuser 21 3578 170 4000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90477L120E04300 TUP - Transparent diffuser 21 3429 163 3000 ON/OFF 0 1310 Polycarbonate end caps + Sensor
90477L120E06000 TUP - Transparent diffuser 21 3578 170 4000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90477L120E06300 TUP - Transparent diffuser 21 3429 163 3000 ON/OFF 3 1310 Polycarbonate end caps + Sensor
90477L120H00000 TUP - Transparent diffuser 22 3578 163 4000 DALI 2 0 1180 Polycarbonate end caps
90477L120H00300 TUP - Transparent diffuser 22 3429 156 3000 DALI 2 0 1180 Polycarbonate end caps
90477L150E00000 TUP - Transparent diffuser 26 4473 172 4000 ON/OFF 0 1460 Polycarbonate end caps
90477L150E00300 TUP - Transparent diffuser 26 4286 165 3000 ON/OFF 0 1460 Polycarbonate end caps
90477L150E03000 TUP - Transparent diffuser 26 4473 172 4000 ON/OFF 3 1460 Polycarbonate end caps
90477L150E03300 TUP - Transparent diffuser 26 4286 165 3000 ON/OFF 3 1460 Polycarbonate end caps
90477L150E04000 TUP - Transparent diffuser 26 4473 172 4000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90477L150E04300 TUP - Transparent diffuser 26 4286 165 3000 ON/OFF 0 1590 Polycarbonate end caps + Sensor
90477L150E06000 TUP - Transparent diffuser 26 4473 172 4000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90477L150E06300 TUP - Transparent diffuser 26 4286 165 3000 ON/OFF 3 1590 Polycarbonate end caps + Sensor
90477L150H00000 TUP - Transparent diffuser 28 4473 160 4000 DALI 2 0 1460 Polycarbonate end caps
90477L150H00300 TUP - Transparent diffuser 28 4286 153 3000 DALI 2 0 1460 Polycarbonate end caps
Explore our products
Go to Products
Title Cookie Settings

INDELAGUE may use cookies to memorize your login data, collect statistics to optimize the website’s functionality and to carry out marketing actions based on your interests.You can customize used cookies in .

Strictly Necessary Cookies
These cookies are essential to provide services available on our website and to enable you to use certain features on our website.
Without these cookies, we cannot provide certain services on our site.

Functionality cookies
These cookies are used to provide a more personalised experience on our website and to remember the choices you make when using our website.
For example, we may use functionality cookies to remember your language preferences and/or your login details.

Customization Cookies
These cookies are used to recognise visitors when they return to our site. This allows us to personalise the content of the site for you, greet you by name and remember your preferences (for example, your choice of language or region).

Security Cookies
These cookies are used to protect the security of our website and your data. This includes cookies that are used to allow you to log in to secure areas of our website.

Measurement and Performance Cookies
These cookies are used to collect information to analyse traffic on our site and understand how visitors are using our site.
For example, these cookies can measure factors such as the time spent on the site or the pages visited, this will allow us to understand how we can improve our site for users.
The information collected through these measurement and performance cookies does not identify any individual visitor.

Advertising Cookies
These cookies are used to provide adverts that are more relevant to you and your interests. They are also used to limit the number of times you see an advert and to help measure the effectiveness of an advertising campaign. They may be placed by us or by third parties with our permission. They remember that you have visited a site and this information is shared with other organisations, such as advertisers.

Cookie Policy
