VEGA

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted, Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Extruded aluminium profile
Finishing
Powder-coated
Current Supply Cable Entry Point
End cap

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip

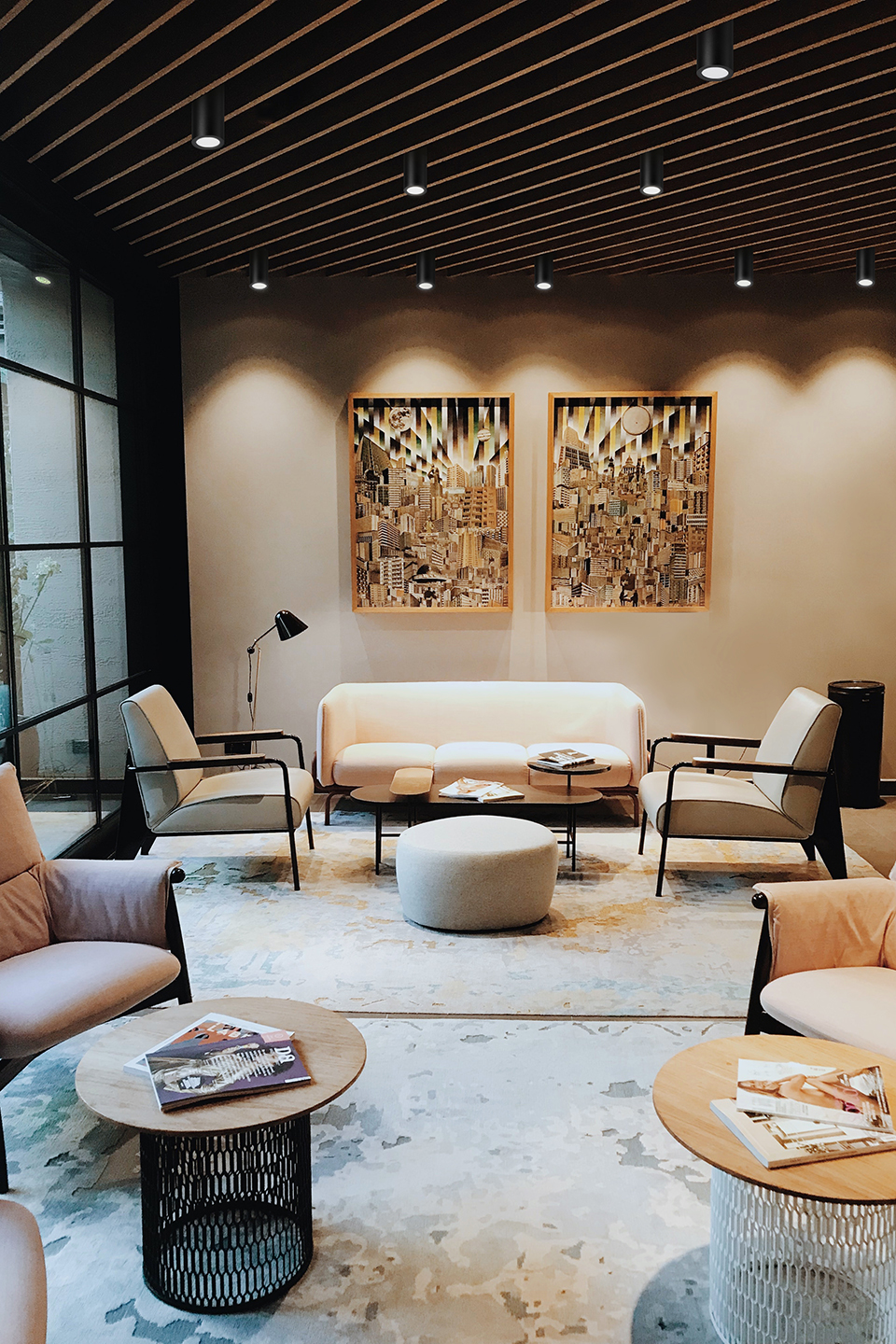

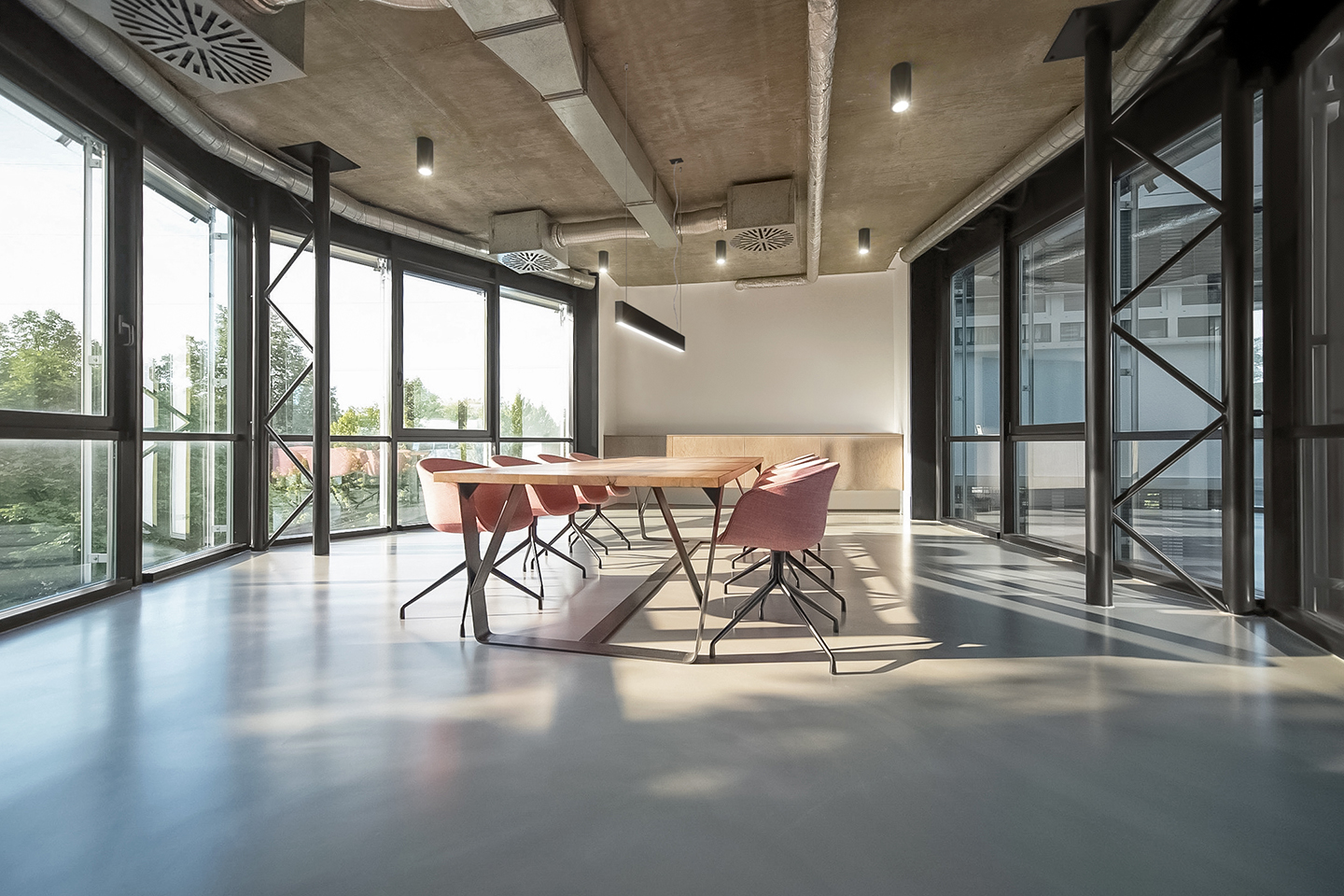

Application Pictures
.zip

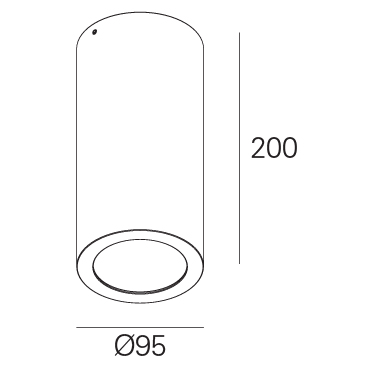

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

VEGA

Results
48 Products

Filter Variants

Results
Filter Variants
Optical System
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
UGR
Colour Temperature (CCT)
Dimming
Clear Filters
Filters
Code
Optical System Colour W lm Output lm/W UGR CCT (K) Dimming
Code
Optical System Colour W lm Output lm/W UGR CCT (K) Dimming
90443L008EB0000 LIGHT+ - Opal diffuser Black (B) 8 691 86 <22 4000 ON/OFF
90443L008EB0300 LIGHT+ - Opal diffuser Black (B) 8 612 77 <22 3000 ON/OFF
90443L008EW0000 LIGHT+ - Opal diffuser White (W) 8 691 86 <22 4000 ON/OFF
90443L008EW0300 LIGHT+ - Opal diffuser White (W) 8 612 77 <22 3000 ON/OFF
90443L008HB0000 LIGHT+ - Opal diffuser Black (B) 7 691 99 <22 4000 DALI 2
90443L008HB0300 LIGHT+ - Opal diffuser Black (B) 7 612 87 <22 3000 DALI 2
90443L008HW0000 LIGHT+ - Opal diffuser White (W) 7 691 99 <22 4000 DALI 2
90443L008HW0300 LIGHT+ - Opal diffuser White (W) 7 612 87 <22 3000 DALI 2
90443L011EB0000 LIGHT+ - Opal diffuser Black (B) 9 856 95 <22 4000 ON/OFF
90443L011EB0300 LIGHT+ - Opal diffuser Black (B) 9 759 84 <22 3000 ON/OFF
90443L011EW0000 LIGHT+ - Opal diffuser White (W) 9 856 95 <22 4000 ON/OFF
90443L011EW0300 LIGHT+ - Opal diffuser White (W) 9 759 84 <22 3000 ON/OFF
90443L011HB0000 LIGHT+ - Opal diffuser Black (B) 9 856 95 <22 4000 DALI 2
90443L011HB0300 LIGHT+ - Opal diffuser Black (B) 9 759 84 <22 3000 DALI 2
90443L011HW0000 LIGHT+ - Opal diffuser White (W) 9 856 95 <22 4000 DALI 2
90443L011HW0300 LIGHT+ - Opal diffuser White (W) 9 759 84 <22 3000 DALI 2
90443L015EB0000 LIGHT+ - Opal diffuser Black (B) 14 1152 82 <25 4000 ON/OFF
90443L015EB0300 LIGHT+ - Opal diffuser Black (B) 14 1037 74 <25 3000 ON/OFF
90443L015EW0000 LIGHT+ - Opal diffuser White (W) 14 1152 82 <25 4000 ON/OFF
90443L015EW0300 LIGHT+ - Opal diffuser White (W) 14 1037 74 <25 3000 ON/OFF
90443L015HB0000 LIGHT+ - Opal diffuser Black (B) 13 1152 89 <25 4000 DALI 2
90443L015HB0300 LIGHT+ - Opal diffuser Black (B) 13 1037 80 <25 3000 DALI 2
90443L015HW0000 LIGHT+ - Opal diffuser White (W) 13 1152 89 <25 4000 DALI 2
90443L015HW0300 LIGHT+ - Opal diffuser White (W) 13 1037 80 <25 3000 DALI 2
90445L008EB0000 PRISM+ - Microprismatic diffuser Black (B) 8 681 85 <19 4000 ON/OFF
90445L008EB0300 PRISM+ - Microprismatic diffuser Black (B) 8 622 78 <19 3000 ON/OFF
90445L008EW0000 PRISM+ - Microprismatic diffuser White (W) 8 681 85 <19 4000 ON/OFF
90445L008EW0300 PRISM+ - Microprismatic diffuser White (W) 8 622 78 <19 3000 ON/OFF
90445L008HB0000 PRISM+ - Microprismatic diffuser Black (B) 7 681 97 <19 4000 DALI 2
90445L008HB0300 PRISM+ - Microprismatic diffuser Black (B) 7 622 89 <19 3000 DALI 2
90445L008HW0000 PRISM+ - Microprismatic diffuser White (W) 7 681 97 <19 4000 DALI 2
90445L008HW0300 PRISM+ - Microprismatic diffuser White (W) 7 622 89 <19 3000 DALI 2
90445L011EB0000 PRISM+ - Microprismatic diffuser Black (B) 9 843 94 <19 4000 ON/OFF
90445L011EB0300 PRISM+ - Microprismatic diffuser Black (B) 9 759 84 <19 3000 ON/OFF
90445L011EW0000 PRISM+ - Microprismatic diffuser White (W) 9 843 94 <19 4000 ON/OFF
90445L011EW0300 PRISM+ - Microprismatic diffuser White (W) 9 759 84 <19 3000 ON/OFF
90445L011HB0000 PRISM+ - Microprismatic diffuser Black (B) 9 843 94 <19 4000 DALI 2
90445L011HB0300 PRISM+ - Microprismatic diffuser Black (B) 9 759 84 <19 3000 DALI 2
90445L011HW0000 PRISM+ - Microprismatic diffuser White (W) 9 843 94 <19 4000 DALI 2
90445L011HW0300 PRISM+ - Microprismatic diffuser White (W) 9 759 84 <19 3000 DALI 2
90445L015EB0000 PRISM+ - Microprismatic diffuser Black (B) 14 1152 82 <22 4000 ON/OFF
90445L015EB0300 PRISM+ - Microprismatic diffuser Black (B) 14 1053 75 <22 3000 ON/OFF
90445L015EW0000 PRISM+ - Microprismatic diffuser White (W) 14 1152 82 <22 4000 ON/OFF
90445L015EW0300 PRISM+ - Microprismatic diffuser White (W) 14 1053 75 <22 3000 ON/OFF
90445L015HB0000 PRISM+ - Microprismatic diffuser Black (B) 13 1152 89 <22 4000 DALI 2
90445L015HB0300 PRISM+ - Microprismatic diffuser Black (B) 13 1053 81 <22 3000 DALI 2
90445L015HW0000 PRISM+ - Microprismatic diffuser White (W) 13 1152 89 <22 4000 DALI 2
90445L015HW0300 PRISM+ - Microprismatic diffuser White (W) 13 1053 81 <22 3000 DALI 2
