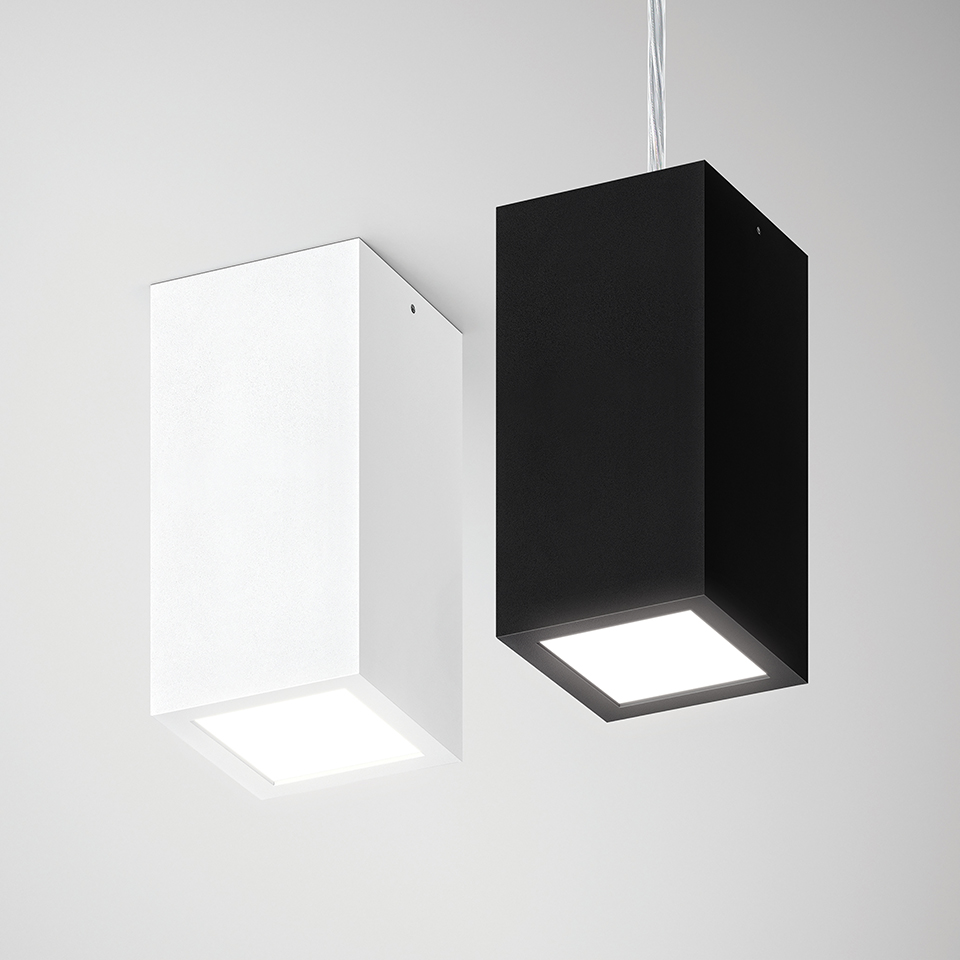

VEGA SQ

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted, Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Extruded aluminium profile
Finishing
Powder-coated
Current Supply Cable Entry Point
End cap

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip
Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

VEGA SQ

Results
48 Products

Filter Variants

Results
Filter Variants
Optical System
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
UGR
Colour Temperature (CCT)
Dimming
Clear Filters
Filters
Code
Optical System Colour W lm Output lm/W UGR CCT (K) Dimming
Code
Optical System Colour W lm Output lm/W UGR CCT (K) Dimming
90444L008EB0000 LIGHT+ - Opal diffuser Black (B) 8 743 93 <22 4000 ON/OFF
90444L008EB0300 LIGHT+ - Opal diffuser Black (B) 8 680 85 <22 3000 ON/OFF
90444L008EW0000 LIGHT+ - Opal diffuser White (W) 8 743 93 <22 4000 ON/OFF
90444L008EW0300 LIGHT+ - Opal diffuser White (W) 8 680 85 <22 3000 ON/OFF
90444L008HB0000 LIGHT+ - Opal diffuser Black (B) 7 743 106 <22 4000 DALI 2
90444L008HB0300 LIGHT+ - Opal diffuser Black (B) 7 680 97 <22 3000 DALI 2
90444L008HW0000 LIGHT+ - Opal diffuser White (W) 7 743 106 <22 4000 DALI 2
90444L008HW0300 LIGHT+ - Opal diffuser White (W) 7 680 97 <22 3000 DALI 2
90444L011EB0000 LIGHT+ - Opal diffuser Black (B) 9 921 102 <22 4000 ON/OFF
90444L011EB0300 LIGHT+ - Opal diffuser Black (B) 9 831 92 <22 3000 ON/OFF
90444L011EW0000 LIGHT+ - Opal diffuser White (W) 9 921 102 <22 4000 ON/OFF
90444L011EW0300 LIGHT+ - Opal diffuser White (W) 9 831 92 <22 3000 ON/OFF
90444L011HB0000 LIGHT+ - Opal diffuser Black (B) 9 921 102 <22 4000 DALI 2
90444L011HB0300 LIGHT+ - Opal diffuser Black (B) 9 831 92 <22 3000 DALI 2
90444L011HW0000 LIGHT+ - Opal diffuser White (W) 9 921 102 <22 4000 DALI 2
90444L011HW0300 LIGHT+ - Opal diffuser White (W) 9 831 92 <22 3000 DALI 2
90444L015EB0000 LIGHT+ - Opal diffuser Black (B) 14 1259 90 <25 4000 ON/OFF
90444L015EB0300 LIGHT+ - Opal diffuser Black (B) 14 1119 80 <22 3000 ON/OFF
90444L015EW0000 LIGHT+ - Opal diffuser White (W) 14 1259 90 <25 4000 ON/OFF
90444L015EW0300 LIGHT+ - Opal diffuser White (W) 14 1119 80 <22 3000 ON/OFF
90444L015HB0000 LIGHT+ - Opal diffuser Black (B) 13 1259 97 <25 4000 DALI 2
90444L015HB0300 LIGHT+ - Opal diffuser Black (B) 13 1119 86 <22 3000 DALI 2
90444L015HW0000 LIGHT+ - Opal diffuser White (W) 13 1259 97 <25 4000 DALI 2
90444L015HW0300 LIGHT+ - Opal diffuser White (W) 13 1119 86 <22 3000 DALI 2
90446L008EB0000 PRISM+ - Microprismatic diffuser Black (B) 8 743 93 <19 4000 ON/OFF
90446L008EB0300 PRISM+ - Microprismatic diffuser Black (B) 8 661 83 <19 3000 ON/OFF
90446L008EW0000 PRISM+ - Microprismatic diffuser White (W) 8 743 93 <19 4000 ON/OFF
90446L008EW0300 PRISM+ - Microprismatic diffuser White (W) 8 661 83 <19 3000 ON/OFF
90446L008HB0000 PRISM+ - Microprismatic diffuser Black (B) 7 743 106 <19 4000 DALI 2
90446L008HB0300 PRISM+ - Microprismatic diffuser Black (B) 7 661 94 <19 3000 DALI 2
90446L008HW0000 PRISM+ - Microprismatic diffuser White (W) 7 743 106 <19 4000 DALI 2
90446L008HW0300 PRISM+ - Microprismatic diffuser White (W) 7 661 94 <19 3000 DALI 2
90446L011EB0000 PRISM+ - Microprismatic diffuser Black (B) 9 908 101 <19 4000 ON/OFF
90446L011EB0300 PRISM+ - Microprismatic diffuser Black (B) 9 807 90 <19 3000 ON/OFF
90446L011EW0000 PRISM+ - Microprismatic diffuser White (W) 9 908 101 <19 4000 ON/OFF
90446L011EW0300 PRISM+ - Microprismatic diffuser White (W) 9 807 90 <19 3000 ON/OFF
90446L011HB0000 PRISM+ - Microprismatic diffuser Black (B) 9 908 101 <19 4000 DALI 2
90446L011HB0300 PRISM+ - Microprismatic diffuser Black (B) 9 807 90 <19 3000 DALI 2
90446L011HW0000 PRISM+ - Microprismatic diffuser White (W) 9 908 101 <19 4000 DALI 2
90446L011HW0300 PRISM+ - Microprismatic diffuser White (W) 9 807 90 <19 3000 DALI 2
90446L015EB0000 PRISM+ - Microprismatic diffuser Black (B) 14 1241 89 <22 4000 ON/OFF
90446L015EB0300 PRISM+ - Microprismatic diffuser Black (B) 14 1103 79 <19 3000 ON/OFF
90446L015EW0000 PRISM+ - Microprismatic diffuser White (W) 14 1241 89 <22 4000 ON/OFF
90446L015EW0300 PRISM+ - Microprismatic diffuser White (W) 14 1103 79 <19 3000 ON/OFF
90446L015HB0000 PRISM+ - Microprismatic diffuser Black (B) 13 1241 95 <22 4000 DALI 2
90446L015HB0300 PRISM+ - Microprismatic diffuser Black (B) 13 1103 85 <19 3000 DALI 2
90446L015HW0000 PRISM+ - Microprismatic diffuser White (W) 13 1241 95 <22 4000 DALI 2
90446L015HW0300 PRISM+ - Microprismatic diffuser White (W) 13 1103 85 <19 3000 DALI 2
