VEGA SQ /E

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Recessed
Control Gear Included
No
Body Material
Aluminium
Frame Material
Injected ABS
Finishing
Powder-coated
Ceiling Thickness (mm)
1-25

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip

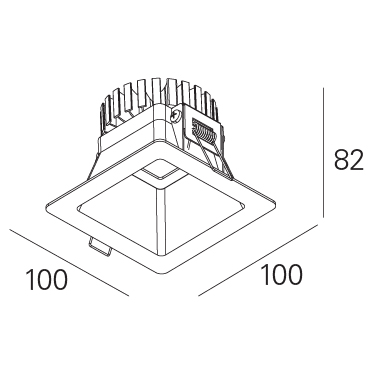

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

VEGA SQ /E

Results
24 Products

Filter Variants

Results
Filter Variants
Optical System
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Input luminaire current (mA)
UGR
Colour Temperature (CCT) (K)
Clear Filters
Filters
Code
Optical System Colour W lm Output lm/W mA UGR CCT (K)
Code
Optical System Colour W lm Output lm/W mA UGR CCT (K)
90437L0080B0000 LIGHT+ - Opal diffuser Black (B) 7 701 100 200 <19 4000
90437L0080B0300 LIGHT+ - Opal diffuser Black (B) 7 661 94 200 <19 3000
90437L0080W0000 LIGHT+ - Opal diffuser White (W) 7 701 100 200 <19 4000
90437L0080W0300 LIGHT+ - Opal diffuser White (W) 7 661 94 200 <19 3000
90437L0110B0000 LIGHT+ - Opal diffuser Black (B) 8 856 107 250 <22 4000
90437L0110B0300 LIGHT+ - Opal diffuser Black (B) 8 819 102 250 <22 3000
90437L0110W0000 LIGHT+ - Opal diffuser White (W) 8 856 107 250 <22 4000
90437L0110W0300 LIGHT+ - Opal diffuser White (W) 8 819 102 250 <22 3000
90437L0150B0000 LIGHT+ - Opal diffuser Black (B) 12 1152 96 350 <22 4000
90437L0150B0300 LIGHT+ - Opal diffuser Black (B) 12 1103 92 350 <22 3000
90437L0150W0000 LIGHT+ - Opal diffuser White (W) 12 1152 96 350 <22 4000
90437L0150W0300 LIGHT+ - Opal diffuser White (W) 12 1103 92 350 <22 3000
90442L0080B0000 PRISM+ - Microprismatic diffuser Black (B) 7 712 102 200 <19 4000
90442L0080B0300 PRISM+ - Microprismatic diffuser Black (B) 7 671 96 200 <19 3000
90442L0080W0000 PRISM+ - Microprismatic diffuser White (W) 7 712 102 200 <19 4000
90442L0080W0300 PRISM+ - Microprismatic diffuser White (W) 7 671 96 200 <19 3000
90442L0110B0000 PRISM+ - Microprismatic diffuser Black (B) 8 869 109 250 <19 4000
90442L0110B0300 PRISM+ - Microprismatic diffuser Black (B) 8 819 102 250 <19 3000
90442L0110W0000 PRISM+ - Microprismatic diffuser White (W) 8 869 109 250 <19 4000
90442L0110W0300 PRISM+ - Microprismatic diffuser White (W) 8 819 102 250 <19 3000
90442L0150B0000 PRISM+ - Microprismatic diffuser Black (B) 12 1170 98 350 <22 4000
90442L0150B0300 PRISM+ - Microprismatic diffuser Black (B) 12 1119 93 350 <22 3000
90442L0150W0000 PRISM+ - Microprismatic diffuser White (W) 12 1170 98 350 <22 4000
90442L0150W0300 PRISM+ - Microprismatic diffuser White (W) 12 1119 93 350 <22 3000
