VEGA SQ IP /E

View range presentation
Overview
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Recessed
Control Gear Included
No
Body Material
Aluminium
Frame Material
Injected ABS
Finishing
Powder-coated
Ceiling Thickness (mm)
1-25

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip

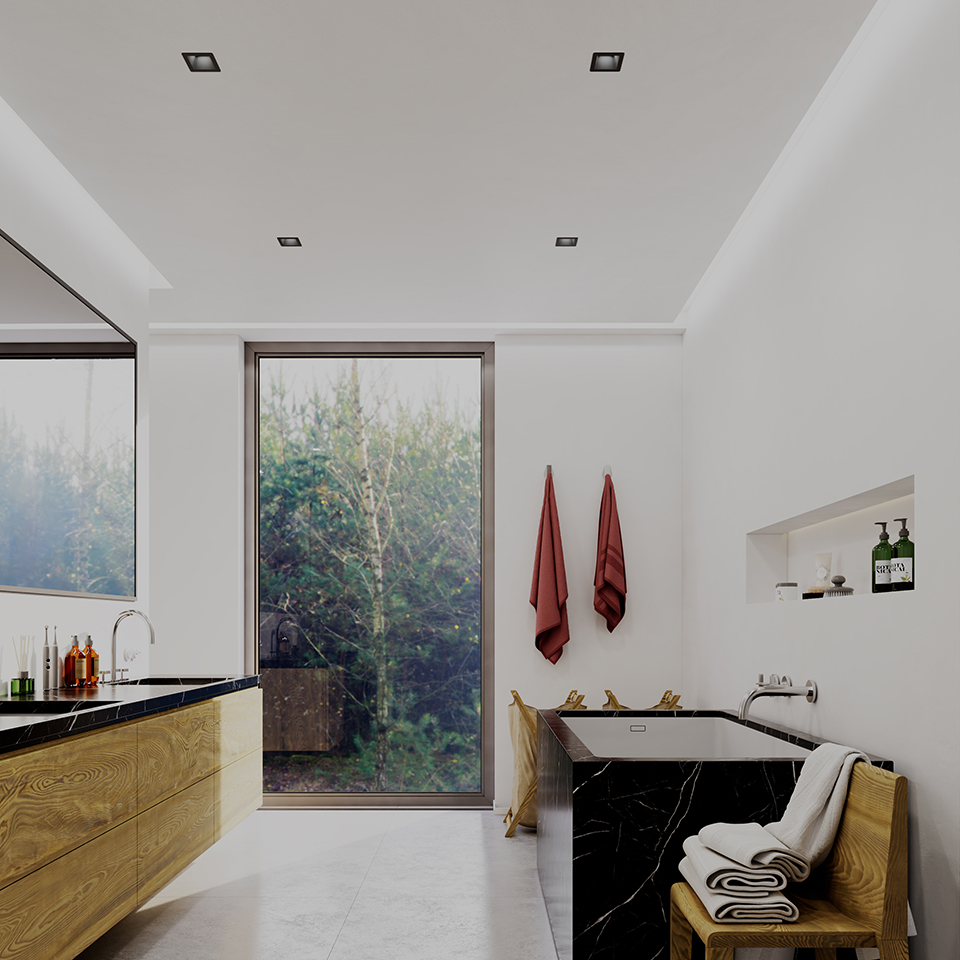

Application Pictures
.zip

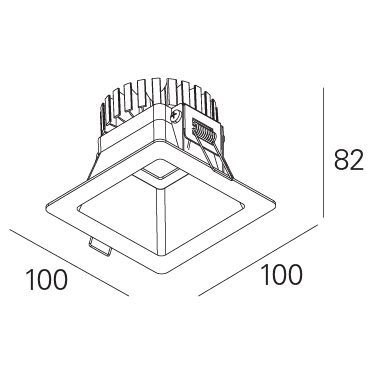

Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

VEGA SQ IP /E

Results
12 Products

Filter Variants

Results
Filter Variants
Colour
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Input luminaire current (mA)
Colour Temperature (CCT) (K)
Clear Filters
Filters
Code
Colour W lm Output lm/W mA CCT (K)
Code
Colour W lm Output lm/W mA CCT (K)
90569L0080B0000 Black (B) 7 701 100 200 4000
90569L0080B0300 Black (B) 7 661 94 200 3000
90569L0080W0000 White (W) 7 701 100 200 4000
90569L0080W0300 White (W) 7 661 94 200 3000
90569L0110B0000 Black (B) 8 856 107 250 4000
90569L0110B0300 Black (B) 8 819 102 250 3000
90569L0110W0000 White (W) 8 856 107 250 4000
90569L0110W0300 White (W) 8 819 102 250 3000
90569L0150B0000 Black (B) 12 1152 96 350 4000
90569L0150B0300 Black (B) 12 1103 92 350 3000
90569L0150W0000 White (W) 12 1152 96 350 4000
90569L0150W0300 White (W) 12 1103 92 350 3000
