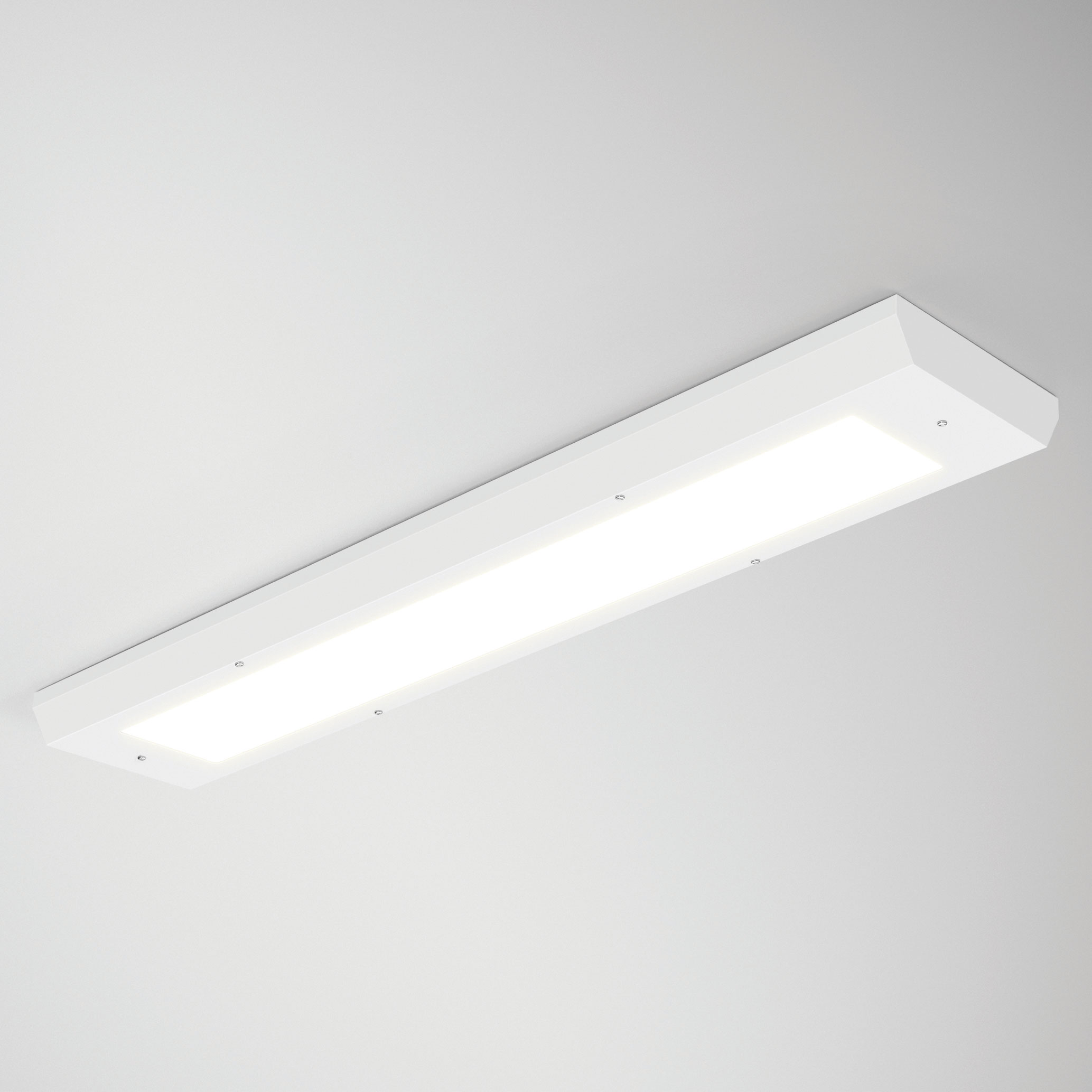

ZLP

View range presentation
Overview
Details
Inspiration
Downloads
Variants

Overview

Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Body Material
Extruded aluminium profile
Frame Material
Steel sheet
Finishing
Powder-coated

Details

Vandal proof Bit/key
Vandal proof Bit/key
Vandal proof screw
Vandal proof screw
Developed to withstand extreme physical impacts of up to 170 Joules (IK17)
Developed to withstand extreme physical impacts of up to 170 Joules (IK17)

Inspiration

Downloads

To download product files, please log in or register here
Main Product Picture
.jpg
Product Pictures
.zip
Application Pictures
.zip
Dimensional Drawing JPG
.jpg
Dimensional Drawing EPS
.eps
Catalogue Pages
.pdf

ZLP

Results
16 Products

Filter Variants

Results
Filter Variants
Power (W)
Luminous Flux (lm)
Efficiency (lm/W)
Colour Temperature (CCT)
Dimming
Emergency (h)
Length (mm)
Clear Filters
Filters
Code
W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm)
Code
W lm Output lm/W CCT (K) Dimming Emergency (h) L (mm)
906H2222JE40000 37 4561 123 4000 DALI 2 0 1350
906H2222JE40300 37 4300 116 3000 DALI 2 0 1350
906H2222JE43000 37 4561 123 4000 DALI 2 3 1350
906H2222JE43300 37 4300 116 3000 DALI 2 3 1350
906H2222JF40000 38 4561 120 4000 ON/OFF 0 1350
906H2222JF40300 38 4300 113 3000 ON/OFF 0 1350
906H2222JF43000 38 4561 120 4000 ON/OFF 3 1350
906H2222JF43300 38 4300 113 3000 ON/OFF 3 1350
906H2272JE40000 46 5701 124 4000 DALI 2 0 1650
906H2272JE40300 46 5375 117 3000 DALI 2 0 1650
906H2272JE43000 46 5701 124 4000 DALI 2 3 1650
906H2272JE43300 46 5375 117 3000 DALI 2 3 1650
906H2272JF40000 47 5701 121 4000 ON/OFF 0 1650
906H2272JF40300 47 5375 114 3000 ON/OFF 0 1650
906H2272JF43000 47 5701 121 4000 ON/OFF 3 1650
906H2272JF43300 47 5375 114 3000 ON/OFF 3 1650
