REBA 50 /W INT D/I L2242 BLINE DALI 840 HO
90536L008HW0000
Copied to Clipboard
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Luminaire Type
Straight line luminaire
Luminaire Module
Individual;Middle (MID);Start / End (SRT/END)
Insulation Class
I
Ingress Protection (IP)
40
Ambient Temperature Range (°C)
]-5;25[
Warranty (Years)
5
Body Material
Extruded aluminium profile
Finishing
Epoxy polyester powder coated
Colour
White (W)
Glow-wire Resistance (°C)
960
Optical System
bLINE - Opal diffuser
Light Distribution
Direct / Indirect
Beam Angle (°)
103
Light Source
LED
Input Power (W)
124
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,95
Luminaire Luminous Flux (lm)
13447
Luminaire Efficacy (lm/W)
108
Unified Glare Rating (UGR)
<28
LED Lifetime - Rated Median Useful Life
80.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Photobiological safety according to IEC 62471
Risk group 0 - Exempt (RG0)
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
This Product Contains a Light Source of Energy Efficiency Class
C
LED Module Forward Voltage Range (VF)
32,2
Power Supply Dimming
DALI 2
Central Battery Emergency Lighting System (VDC)
176-280
Maximum of Luminaires by Magnetic Circuit Breaker B16
<17
Inrush Current (A)
18
Pulse Duration (µs)
180

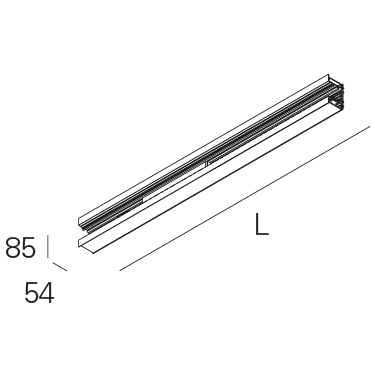

L - Length (mm)
2242
W - Width (mm)
54
H - Height (mm)
85
Net Weight (kg)
5.57
Notes:
• To complete the product it is necessary to order the inner profile separately.
