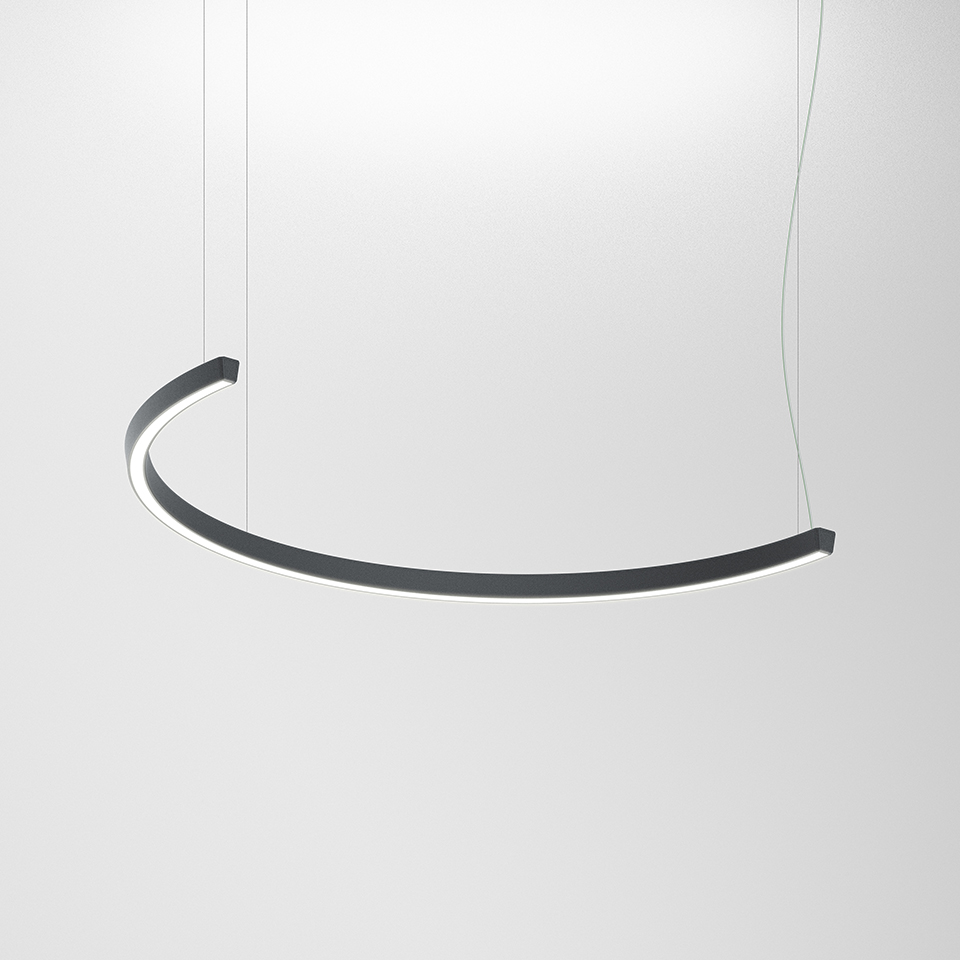

CONCEPT S 35 D/I 180° RIGHT D1852 DALI 840 I SRT
90550R020HI0049
Copied to Clipboard
Application Areas
Architectural, Offices, Hotels and residential, Public spaces, Retail, Art and Culture, Education, Health and care
Mounting Type
Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Luminaire Type
Curved luminaire 1/2 180°
Luminaire Module
Start (SRT)
Luminaire Orientation
Right
Insulation Class
I
Ingress Protection (IP)
40
Ambient Temperature Range (°C)
]-5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Extruded aluminium profile
Finishing
Epoxy polyester powder coated
Colour
Carbon (I)
Glow-wire Resistance (°C)
960
Optical System
bFLEX - Opal diffuser
Light Distribution
Direct / Indirect
Beam Angle (°)
111
Light Source
LED
Input Power (W)
110
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,98
Luminaire Luminous Flux (lm)
10316
Luminaire Efficacy (lm/W)
94
LED Lifetime - Rated Median Useful Life
70.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
LED Module Forward Voltage Range (VF)
24V DC
Power Supply Dimming
DALI 2
Maximum of Luminaires by Magnetic Circuit Breaker B16
<45
L - Length (mm)
1853
W - Width (mm)
55
H - Height (mm)
56
D - Diameter (mm)
1853
Net Weight (kg)
8.2
Notes:
• To complete the individual product orderbFLEX diffuser, start kit, current supply cable, suspension and ceiling rose. Please order separately;
• To complete the line orderbFLEX diffuser, current supply cable, suspensions, start kit and body conector kit. Please order separately;
• Dimensions do not include start kit. To complete the line add 26 mm to the length;
• In order to guarantee a total uniformity of light on the ceiling, the installation must be done at a minimum distance of 500 mm;
• Create your own configurations on CONFIGURATOR.INDELAGUEGROUP.COM;
• The noise level is < 20 dB, lower than the typical ambient sound levels recorded in environments such as libraries and reading rooms.
Options
SUSPENSION
|
SUSPENSION S11 L1500 (X3)
9129031
|
|
SUSPENSION S11 L3000 (X3)
9129032
|
|
SUSPENSION S11 L6000 (X3)
9129033
|
CURRENT SUPPLY CABLE
|
CURRENT SUPPLY CABLE 5X1,5 L1500 TR
940000
|
|
CURRENT SUPPLY CABLE 5X1,5 L3000 TR
940001
|
|
CURRENT SUPPLY CABLE 5X1,5 L6000 TR
940002
|
