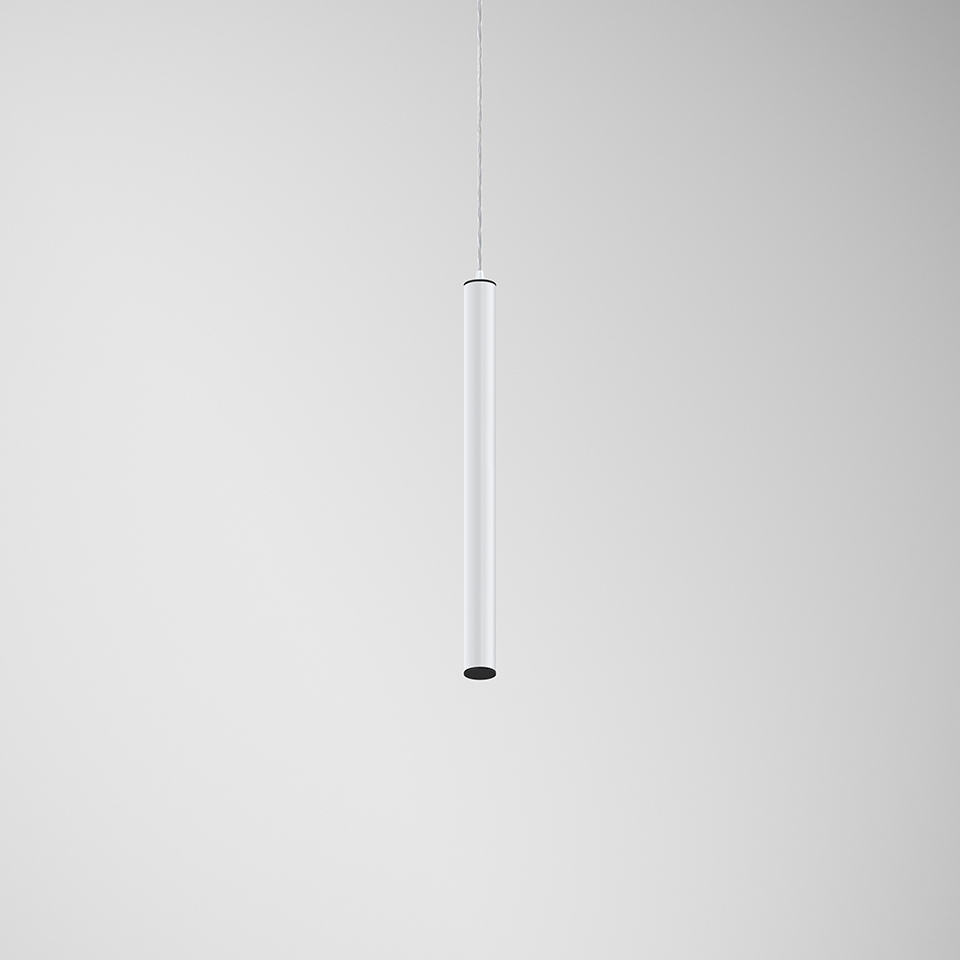

TTP 50 360 VRT L1270 TOP 840 B
90555L1200B0000
Copied to Clipboard
Application Areas
Public spaces, Industry, Outside
Mounting Type
Suspended
Control Gear Included
Yes
Control Gear
24V transformer
Notes
• To complete the product ordercurrent supply cable separately;• The noise level is < 20 dB, lower than the typical ambient sound levels recorded in environments such as libraries and reading rooms.
Luminaire Type
Straight line luminaire
Luminaire Module
Individual
Insulation Class
III
Ingress Protection (IP)
40
Ambient Temperature Range (°C)
]-10;25[
Warranty (Years)
5
Current Supply Cable Entry Point
End cap
Body Material
Polycarbonate tube
Finishing
Epoxy polyester powder coated
Colour
Black (B)
Glow-wire Resistance (°C)
960
Optical System
TOP - Opal diffuser
Light Distribution
Direct
Beam Angle (°)
124
Light Source
LED
Input Power (W)
23
Power Factor (λ)
1
Luminaire Luminous Flux (lm)
2685
Luminaire Efficacy (lm/W)
117
Unified Glare Rating (UGR)
<22
LED Lifetime - Rated Median Useful Life
70.000h @ L80, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
This Product Contains a Light Source of Energy Efficiency Class
D
LED Module Forward Voltage Range (VF)
21,5-26,4
Input luminaire current (mA)
940
L - Length (mm)
1270
D - Diameter (mm)
Ø50
Net Weight (kg)
0.678
