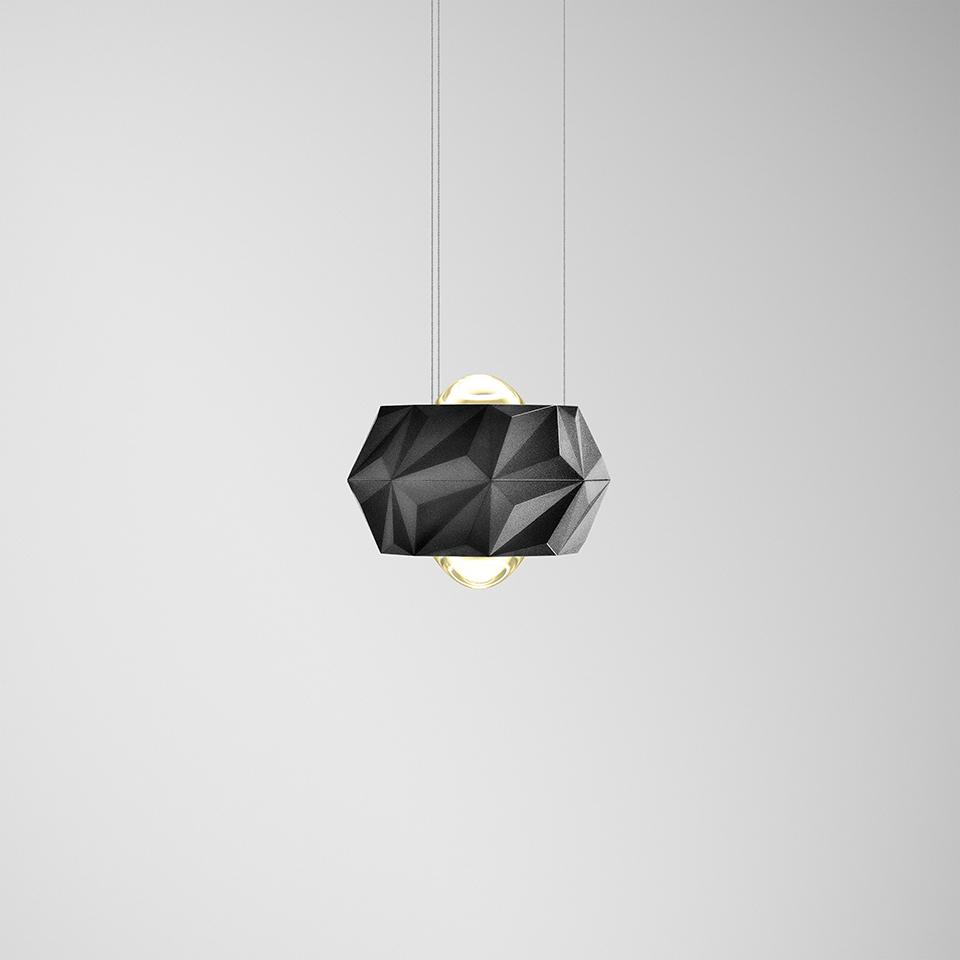

6TH ELEMENT + D/I D140 940 B 80°/80°
90568L0160B0A80
Copied to Clipboard
Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Notes
• To complete the product ordercurrent supply cable/suspension. Please order separately.
Luminaire Type
Round downlight
Luminaire Module
Individual
Insulation Class
III
Ingress Protection (IP)
40
Ambient Temperature Range (°C)
]-5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Die-cast aluminium
Finishing
Epoxy polyester powder coated
Colour
Black (B)
Glow-wire Resistance (°C)
650
Optical System
Lens
Light Distribution
Direct / Indirect
Beam Angle (°)
78/78
Light Source
LED
Input Power (W)
17
Power Factor (λ)
1
Luminaire Luminous Flux (lm)
2158
Luminaire Efficacy (lm/W)
127
United Glare Rating (UGR)
<22
LED Lifetime - Rated Median Useful Life
50.000h @ L80, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>90
Chromaticity Tolerance (MacAdam step)
<3
This Product Contains a Light Source of Energy Efficiency Class
D
LED Module Forward Voltage Range (VF)
34,4
Input luminaire current (mA)
500
H - Height (mm)
80
D - Diameter (mm)
140
