ROFY 85 D/I D0600 GCONTROL+ HF K3 840 I HO
90624L600EI3000
Copied to Clipboard
Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type

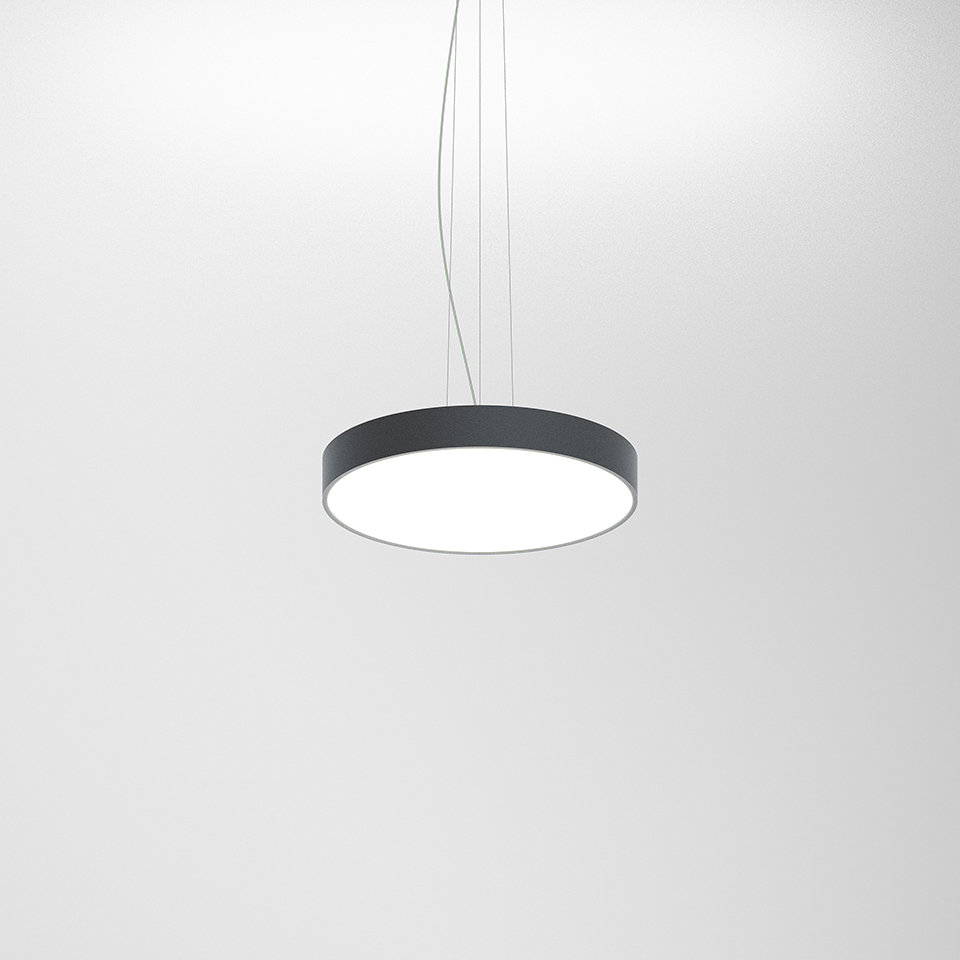

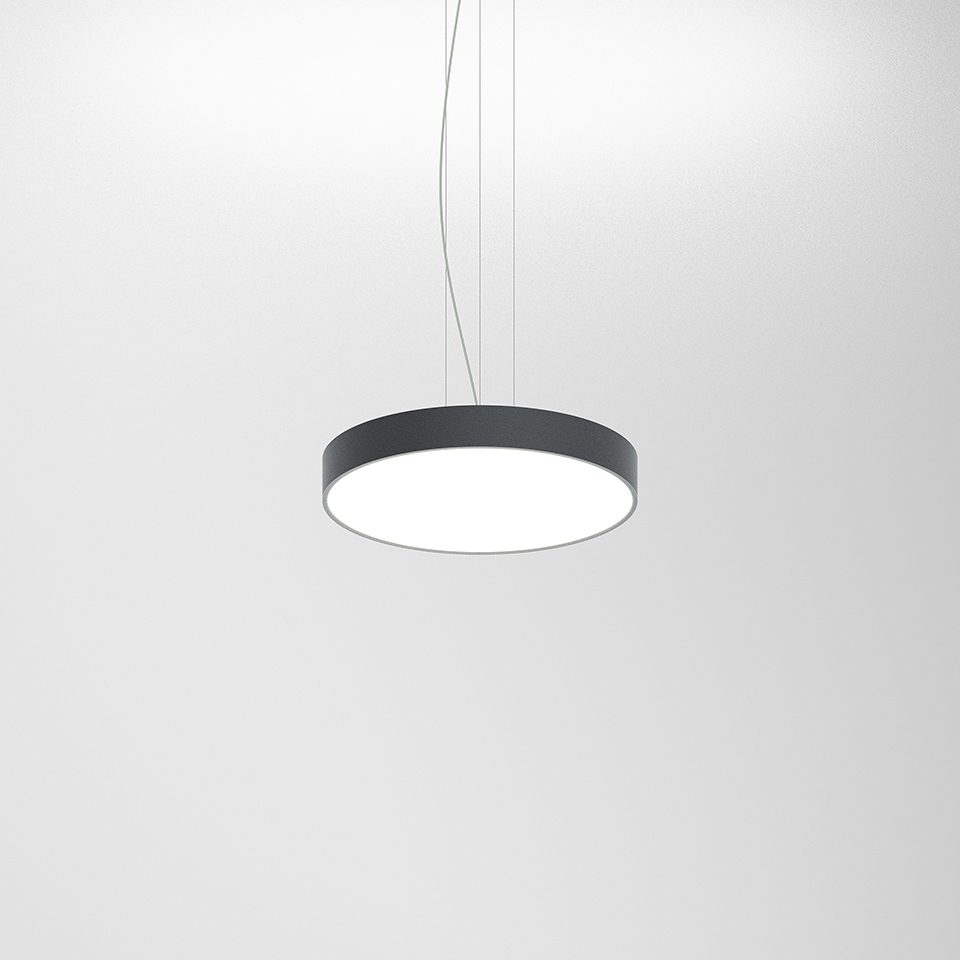

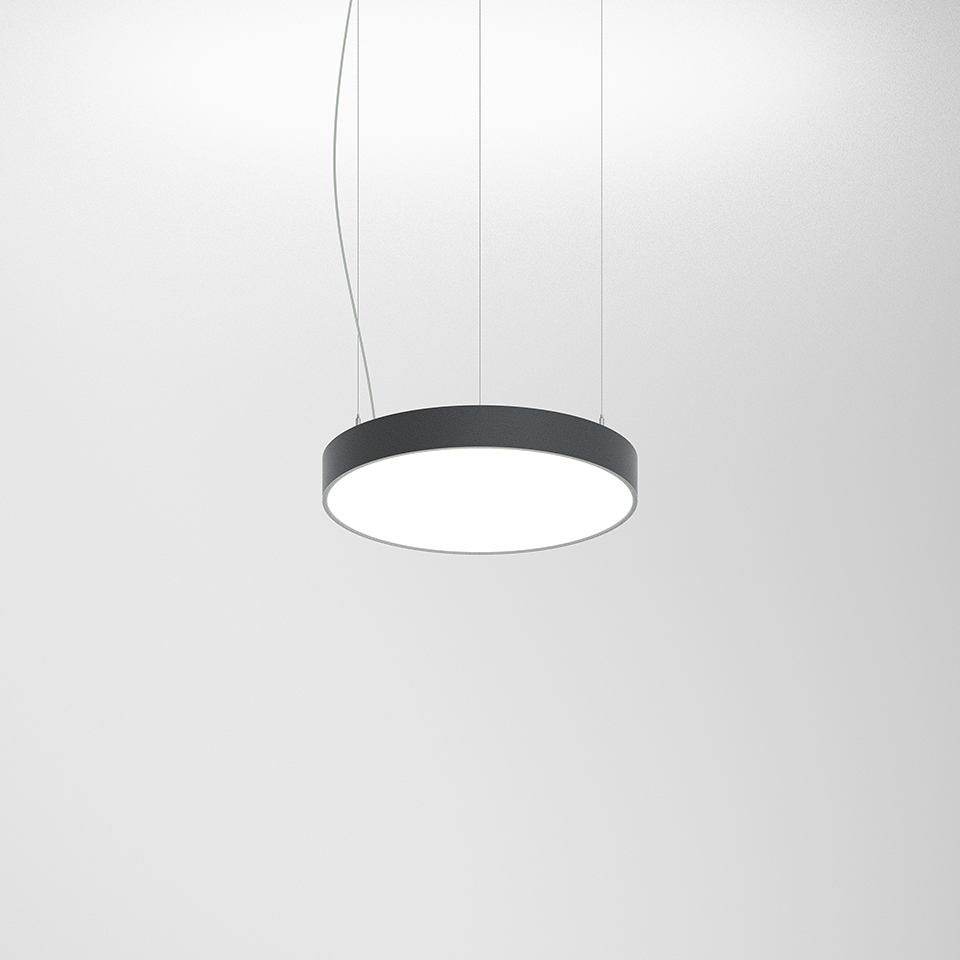

Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Luminaire Type
Circular luminaire
Luminaire Module
Individual
Insulation Class
I
Ingress Protection (IP)
40
Mechanical Impact Protection (IK)
04
Ambient Temperature Range (°C)
]5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Steel sheet
Frame Material
Extruded aluminium profile
Finishing
Epoxy polyester powder coated
Colour
Carbon (I)
Glow-wire Resistance (°C)
650
Optical System
gCONTROL+ - Microprismatic diffuser
Light Distribution
Direct / Indirect
Beam Angle (°)
96
Light Source
LED
Input Power (W)
56
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,92
Luminaire Luminous Flux (lm)
7494
Luminaire Efficacy (lm/W)
134
Emergency Unit
3
Unified Glare Rating (UGR)
<19
LED Lifetime - Rated Median Useful Life
80.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
This Product Contains a Light Source of Energy Efficiency Class
B
LED Module Forward Voltage Range (VF)
95,2
Power Supply Dimming
ON/OFF
Maximum of Luminaires by Magnetic Circuit Breaker B16
<26
Inrush Current (A)
39
Pulse Duration (µs)
166
This Product contains a Light Source of Energy Efficiency Class [Indirect]
C
H - Height (mm)
85
D - Diameter (mm)
600
Notes:
• To complete the product it is necessary to order the suspension, the current supply cable and ceiling rose. Please order separately;
• In order to guarantee a total uniformity of light on the ceiling, the installation must be done at a minimum distance of 500 mm.
Options
SUSPENSION
|
SUSPENSION S10 L1500 (X3)
9111001
|
|
SUSPENSION S10 L3000 (X3)
9111002
|
|
SUSPENSION S10 L6000 (X3)
9111003
|
|

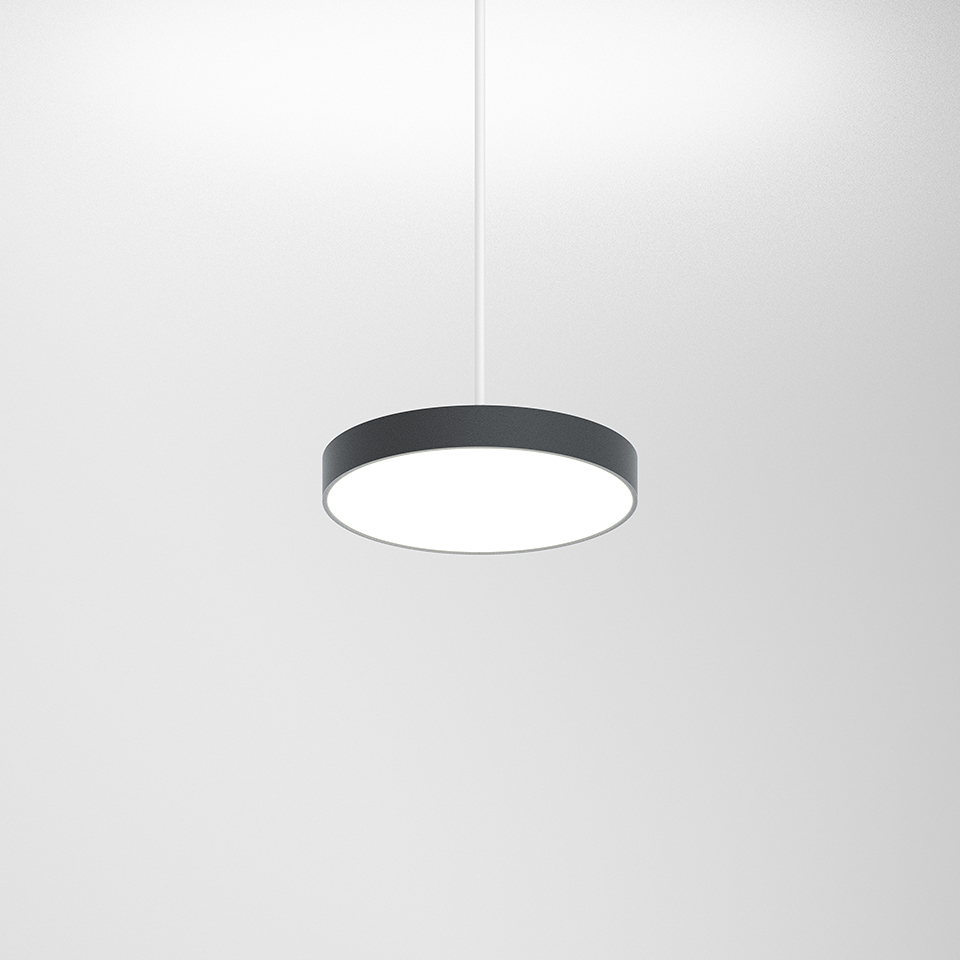

SUSPENSION ROD D95 400/600 B
913000B
|
|
SUSPENSION ROD D95 400/600 W
913000W
|
