CONCEPT SQ 35 Q1126 BFLEX DALI 840 0
90704L027H00000
Copied to Clipboard
Application Areas
Architectural, Offices, Hotels and residential, Public spaces, Retail, Art and Culture, Education, Health and care
Mounting Type

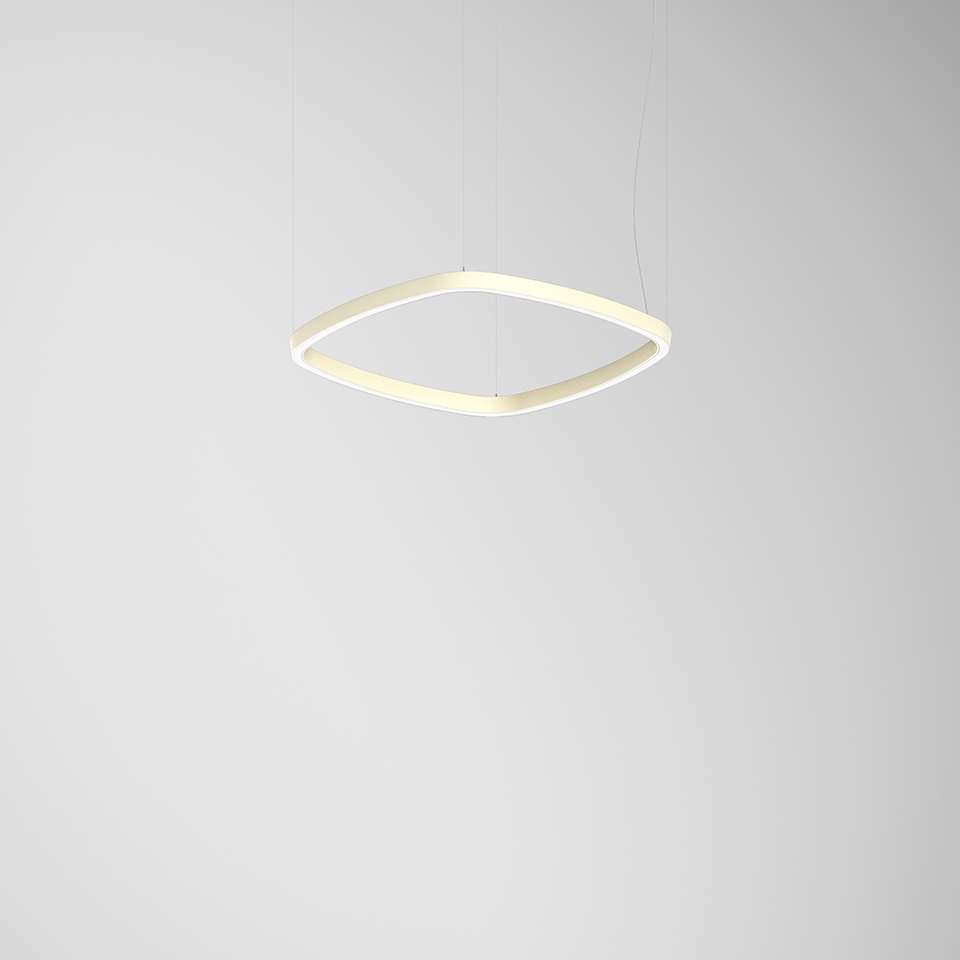

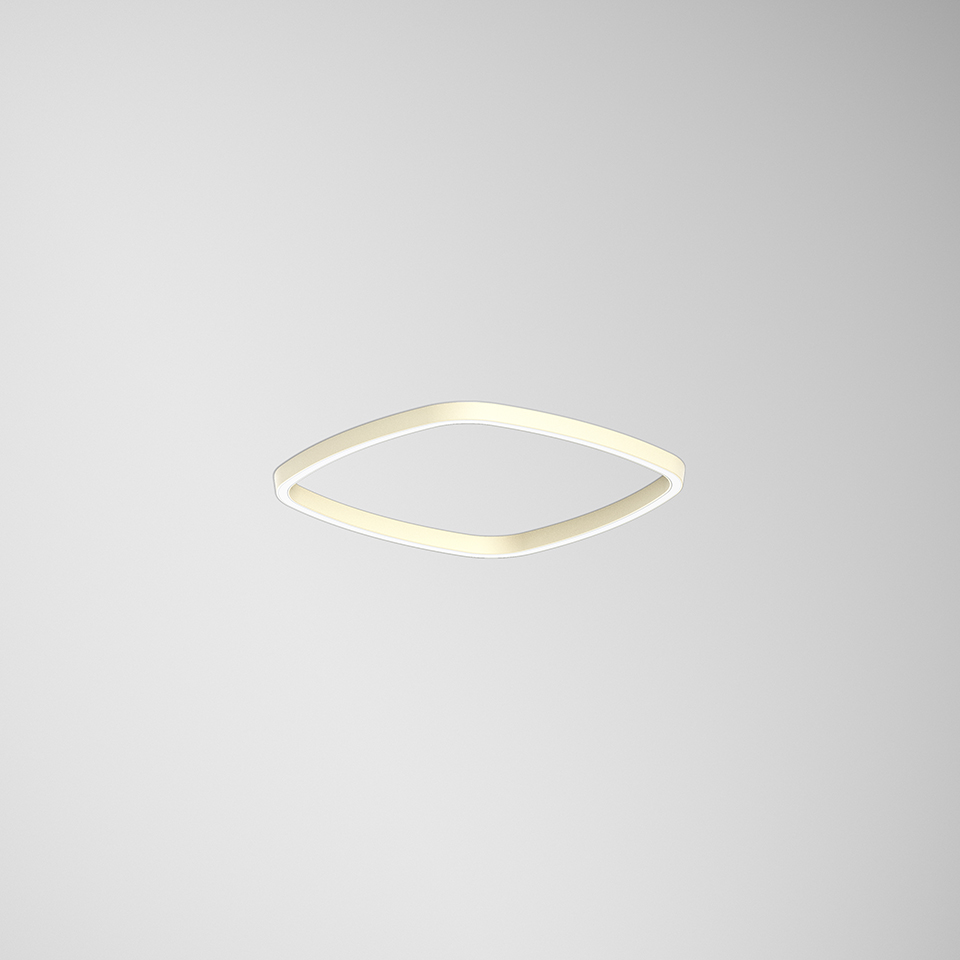

Surface mounted, Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Notes
• For suspended version it is necessary to order the suspension, the current supply cable and the ceiling rose. Please order separately;• The noise level is < 20 dB, lower than the typical ambient sound levels recorded in environments such as libraries and reading rooms.
Luminaire Type
Square luminaire
Insulation Class
I
Ingress Protection (IP)
40
Ambient Temperature Range (°C)
]-5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Extruded aluminium profile
Finishing
Epoxy polyester powder coated
Colour
Sahara (0)
Glow-wire Resistance (°C)
960
Optical System
bFLEX - Opal diffuser
Light Distribution
Direct
Beam Angle (°)
111
Light Source
LED
Input Power (W)
112
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,98
Luminaire Luminous Flux (lm)
10450
Luminaire Efficacy (lm/W)
93
Unified Glare Rating (UGR)
<25
LED Lifetime - Rated Median Useful Life
70.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
LED Module Forward Voltage Range (VF)
24
Power Supply Dimming
DALI 2
Central Battery Emergency Lighting System (VDC)
280-373
Maximum of Luminaires by Magnetic Circuit Breaker B16
<15
L - Length (mm)
1126
W - Width (mm)
1126
H - Height (mm)
56
