ROFY 60 SQ D/I L0286W286 LIGHT+ DALI 830 0 LO
90717L286H00300
Copied to Clipboard
Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted, Suspended, Wall mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Luminaire Type
Square luminaire
Luminaire Module
Individual
Insulation Class
I
Ingress Protection (IP)
40
Mechanical Impact Protection (IK)
04
Ambient Temperature Range (°C)
]-5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Aluminium
Frame Material
Extruded aluminium profile
Finishing
Epoxy polyester powder coated
Colour
Sahara (0)
Glow-wire Resistance (°C)
650
Optical System
LIGHT+ - Opal diffuser
Light Distribution
Direct / Indirect
Beam Angle (°)
108
Light Source
LED
Input Power (W)
14
Power Factor (λ)
0,75
Luminaire Luminous Flux (lm)
1821
Luminaire Efficacy (lm/W)
130
Unified Glare Rating (UGR)
<19
LED Lifetime - Rated Median Useful Life
80.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
3000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
This Product Contains a Light Source of Energy Efficiency Class
C
LED Module Forward Voltage Range (VF)
28,4
Power Supply Dimming [Indirect]
DALI 2
L - Length (mm)
286
W - Width (mm)
286
H - Height (mm)
85
Notes:

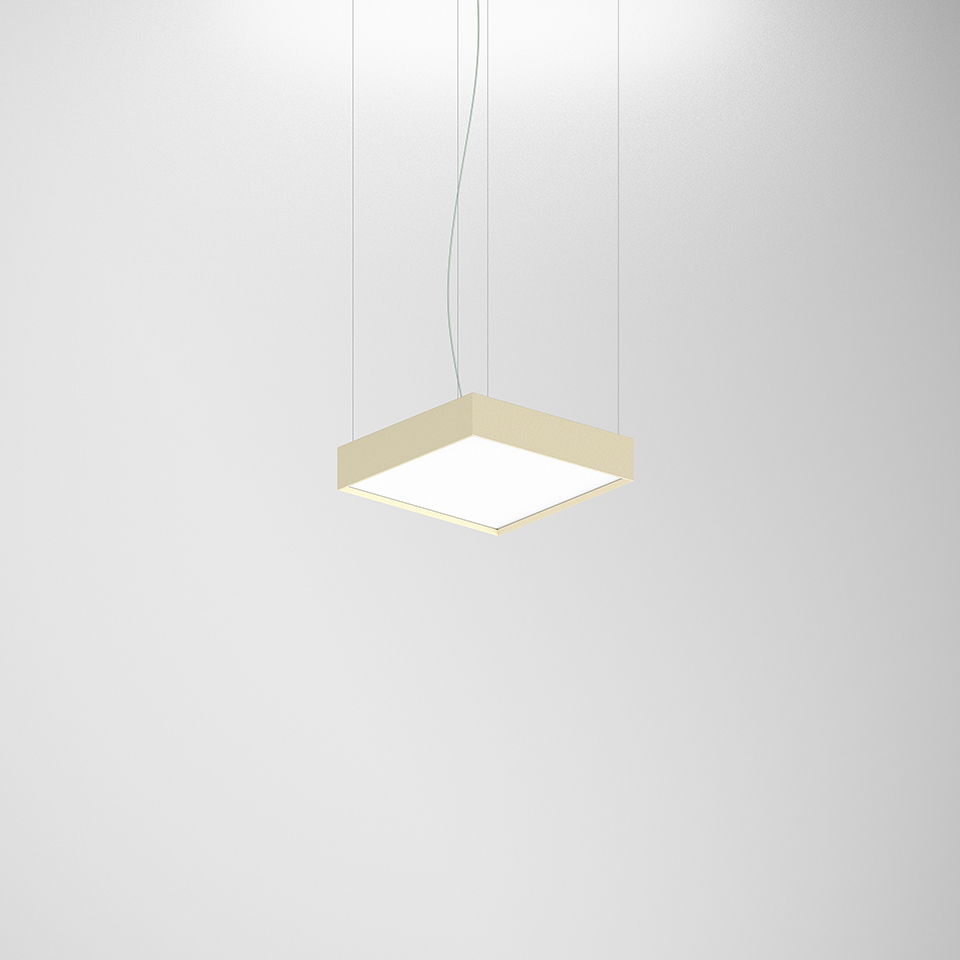

• For suspended version it is necessary to order the suspension, the current supply cable and the ceiling rose. Please order separately;
• In order to guarantee total light uniformity on the ceiling in the suspended version, installation must be carried out at a minimum distance of 500 mm.
