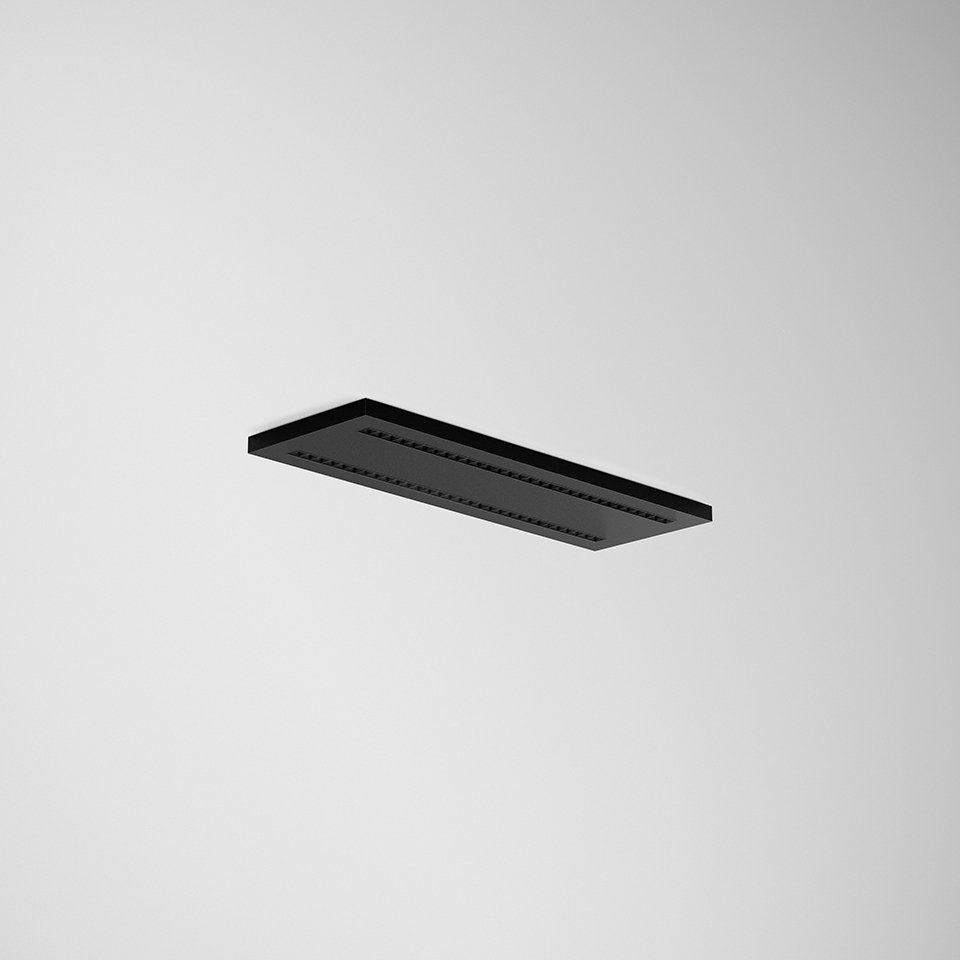

CORA /C L90W30 2 BOPTICS DALI K3 840 B LO
90725L290HB3000
Copied to Clipboard
Application Areas
Offices, Education, Health and care
Mounting Type
Surface mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Luminaire Type
Rectangular luminaire
Luminaire Module
Individual
Insulation Class
I
Ingress Protection (IP)
20
Ambient Temperature Range (°C)
]5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Steel sheet
Finishing
Epoxy polyester powder coated
Colour
Black (B)
Glow-wire Resistance (°C)
650
Optical System
bOPTICS - Symmetric reflector
Light Distribution
Direct
Beam Angle (°)
44
Light Source
LED
Input Power (W)
20
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,93
Luminaire Luminous Flux (lm)
2616
Luminaire Efficacy (lm/W)
131
Emergency Unit
3
Unified Glare Rating (UGR)
<10
LED Lifetime - Rated Median Useful Life
80.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
LED Module Forward Voltage Range (VF)
32,6
Power Supply Dimming
DALI 2
Maximum of Luminaires by Magnetic Circuit Breaker B16
<50
Inrush Current (A)
23
Pulse Duration (µs)
117
L - Length (mm)
897
W - Width (mm)
297
H - Height (mm)
30
Net Weight (kg)
4.1
