AVL L1401 DPT DALI 840 W
90826L150HW0000
Copied to Clipboard
Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Luminaire Type
Rectangular luminaire
Luminaire Module
Individual;Start (SRT);Middle (MID);End (END)
Insulation Class
I
Ingress Protection (IP)
20
Ambient Temperature Range (°C)
]-5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Steel sheet
Finishing
Epoxy polyester powder coated
Colour
White (W)
Glow-wire Resistance (°C)
650
Optical System
DPT - Transparent diffuser
Light Distribution
Direct
Beam Angle (°)
113
Light Source
LED
Input Power (W)
29
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,95
Luminaire Luminous Flux (lm)
4464
Luminaire Efficacy (lm/W)
154
Unified Glare Rating (UGR)
<25
LED Lifetime - Rated Median Useful Life
80.000h @ L80, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
4000
Colour Rendering Index (CRI)
>80
Chromaticity Tolerance (MacAdam step)
<3
This Product Contains a Light Source of Energy Efficiency Class
C
LED Module Forward Voltage Range (VF)
32,7
Power Supply Dimming
DALI 2
Maximum of Luminaires by Magnetic Circuit Breaker B16
<53
Inrush Current (A)
20
Pulse Duration (µs)
139
L - Length (mm)
1401
W - Width (mm)
52
H - Height (mm)
50
Options

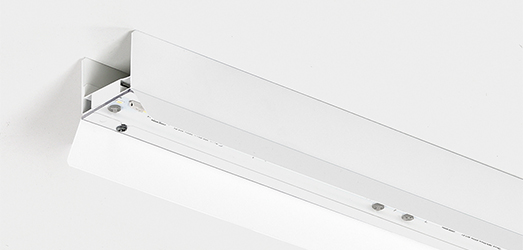

REFLECTORS
|
AVL ASYMMETRIC REFLECTOR L561 W
980500
|
|
AVL ASYMMETRIC REFLECTOR L841 W
980501
|
|
AVL ASYMMETRIC REFLECTOR L1121 W
980502
|
|
AVL ASYMMETRIC REFLECTOR L1401 W
980503
|
|
AVL SYMMETRIC REFLECTOR L561 W
980600
|
|
AVL SYMMETRIC REFLECTOR L841 W
980601
|
|
AVL SYMMETRIC REFLECTOR L1121 W
980602
|
|
AVL SYMMETRIC REFLECTOR L1401 W
980603
|
