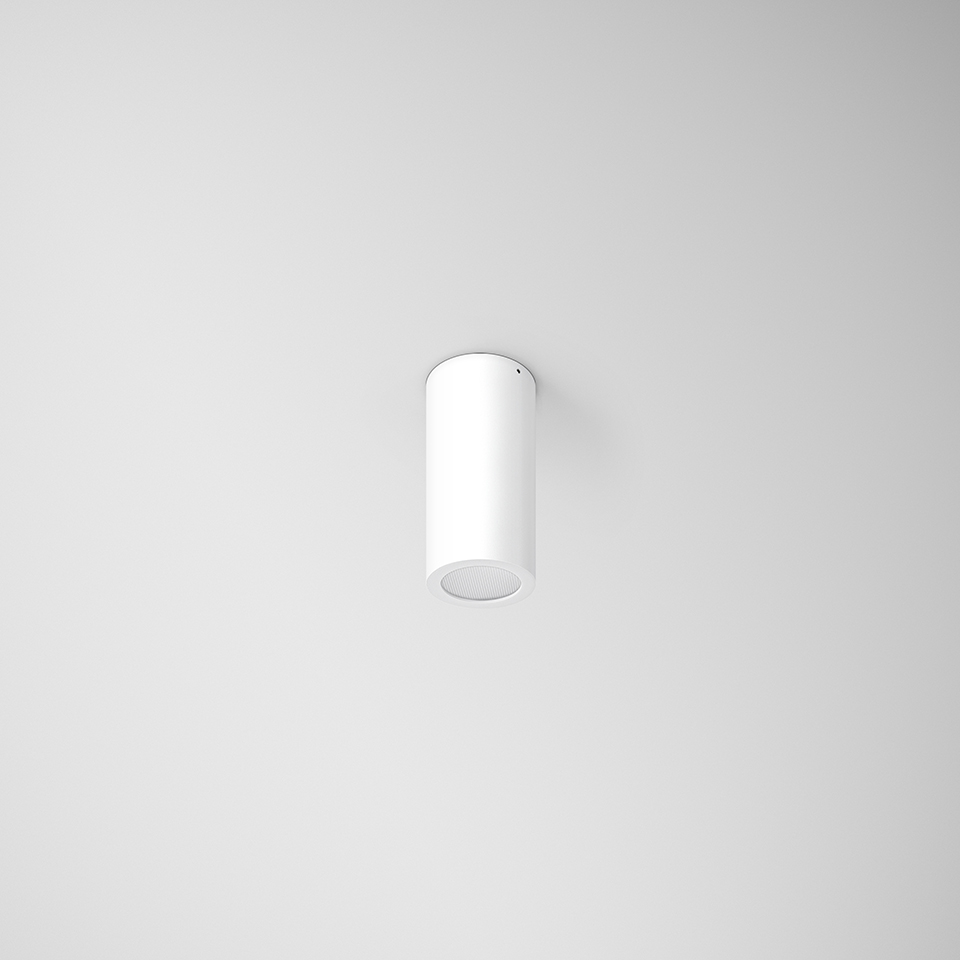

VEGA D95 PRISM+ DALI 930 W LO
90445L008HW0300
Copied to Clipboard
Application Areas
Offices, Hotels and residential, Public spaces, Retail, Education, Health and care
Mounting Type
Surface mounted, Suspended
Control Gear Included
Yes
Control Gear
LED driver 220-240VAC-50/60Hz
Luminaire Type
Round downlight
Insulation Class
I
Ingress Protection (IP)
40
Ambient Temperature Range (°C)
]-5;25[
Warranty (Years)
5
Current Supply Cable Entry Point
Back
Body Material
Extruded aluminium profile
Finishing
Epoxy polyester powder coated
Colour
White (W)
Glow-wire Resistance (°C)
650
Optical System
PRISM+ - Microprismatic diffuser
Light Distribution
Direct
Beam Angle (°)
69
Light Source
LED
Input Power (W)
7
Input Driver Voltage
220-240V-50/60Hz
Power Factor (λ)
0,7
Luminaire Luminous Flux (lm)
622
Luminaire Efficacy (lm/W)
89
Unified Glare Rating (UGR)
<19
LED Lifetime - Rated Median Useful Life
66.000h @ L90, B10, Ta 25°C
CCT - Correlated Colour Temperature (K)
3000
Colour Rendering Index (CRI)
>90
Chromaticity Tolerance (MacAdam step)
<3
This Product Contains a Light Source of Energy Efficiency Class
E
LED Module Forward Voltage Range (VF)
32,7
Power Supply Dimming
DALI 2
Central Battery Emergency Lighting System (VDC)
176-280
Maximum of Luminaires by Magnetic Circuit Breaker B16
<38
Inrush Current (A)
30
Pulse Duration (µs)
100
H - Height (mm)
200
D - Diameter (mm)
95
Net Weight (kg)
1.2
Notes:
• For suspended version it is necessary to order the ceiling rose separately.
Options
CEILING ROSE
|
SURFACE MOUNTED CEILING ROSE D95 HF B
912600B
|
|
SURFACE MOUNTED CEILING ROSE D95 HF W
912600W
|
|
SURFACE MOUNTED CEILING ROSE D95 DALI B
912610B
|
|
SURFACE MOUNTED CEILING ROSE D95 DALI W
912610W
|
|
RECESSED CEILING ROSE D95 HF B
912620B
|
|
RECESSED CEILING ROSE D95 HF W
912620W
|
|
RECESSED CEILING ROSE D95 DALI B
912630B
|
|
RECESSED CEILING ROSE D95 DALI W
912630W
|
Transparent current supply cable included.
